Single Phase 230V 16A/32A Mode 3 EV/PHEV Charging Cable Type 2 to GBT

Single Phase 230V 16A/32A Mode 3 EV/PHEV Charging Cable Type 2 to GBT

Rated current: 16A/32A
Rated voltage: AC250V+/-10% 50/60Hz
Operation Temp.:-30℃ ~ + 50℃
IP54

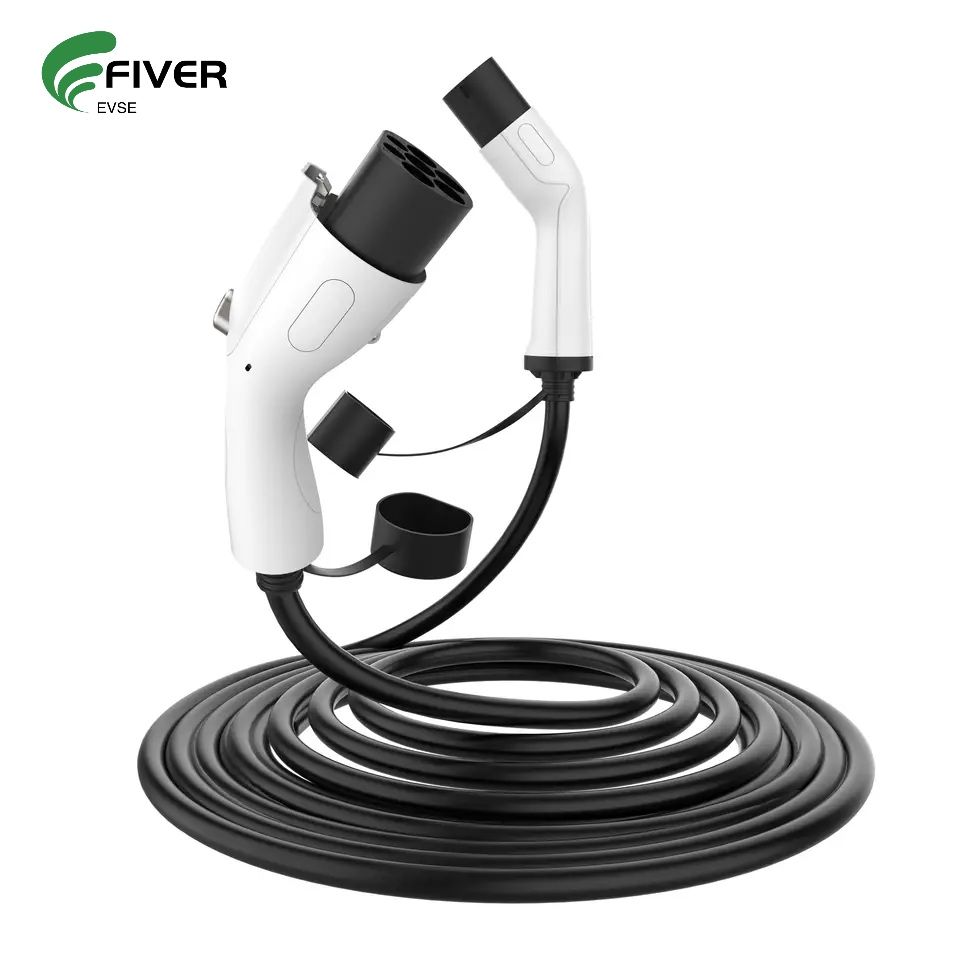

Product description: This Mode 3 EV charging cable Type 2 to GBT with a male IEC62196/type 2 plug at one end, and a male GBT ac plug at the other. it's designed for Chinese/GBT standard electric cars to charge at type 2 d
INQUIRY

Single Phase 230V 16A/32A Mode 3 EV/PHEV Charging Cable Type 2 to GBT

Features:

1> High quality with TUV. CE Certification. Meet IEC62196-2 standards.

2> Compatible with all GBT electric cars.

3> Easy storage. IP55 grade water proof can be used in harsh conditions.

3> Can be used to charge cars with GBT socket at a ac charger with type 2 outlet socket.

Mode 3 EV/PHEV Charging Cable Type 2 to GBT

Applications:

This mode 3 charging cable type 2 to GBT is a connector cable between the charging station and the electric car, to allow GBT standard electric cars to be charged using type 2 chargers. This cable works on all charging stations mode 3 according to standards ISO 17409 and IEC 61851. It is compatible with all the charging stations and all EV rechargeable vehicle with GBT charing inlet. This cable will work safely on all Type 2 charging stations, even the ones with inferior or superior charging power. This product has a unique integrated design and strong structure which can be used outdoor and in rainy environment with a durable life span.

Electrical Performance
Protection rank	IP54
Fire retardant level	94 V-0
Rated Current	16A / 32A
Rated voltage	250V
Insulation resistance	> 100M ohm (DC 500V)
Terminal temperature rise	<50K
Withstand voltage	2000V
Contact resistance	0.5m ohm Max
Coupled insertion force	>45N <80N
Operating temperature	-30℃ to +50℃
Mechanical Testing
Mechanical life	no load plug in / pull out > 10000 times
Impact of external force	qualify 1m drop or 2 Ton vehicle run over
Materials Applied
Connector	by copper alloy with nickel bottom plating and 3um silver surface plating
Shell	white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing
Cable	black with TPU jacket. Other color optional by customizing
Cable Specifications	16A: 32.5 mm² + 20.5 mm² (TPU / TPE); 32A: 3X6mm²+1X0.5mm²( TPU/TPE)
Features	Product conforms to IEC61851-1:2019, EN62196-1:2014 EN62196-2:2017, and EN17186:2019
Features	IP54 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance
Package	Each in PE bag, then in Pizza box, then 5 Pizza boxes into 1 master carton
Package	Deluxe pack: each in Oxford cloth with zipper & handle, easy for end users to keep (extra cost)
Customizing	Logo put on shell by laser or flexible tooling; on Oxford cloth bag by printing
Certificate	CE(TUV), TUV-mark, RoHS, Reach, CB, FCC
