Mode 3 Charging Cables

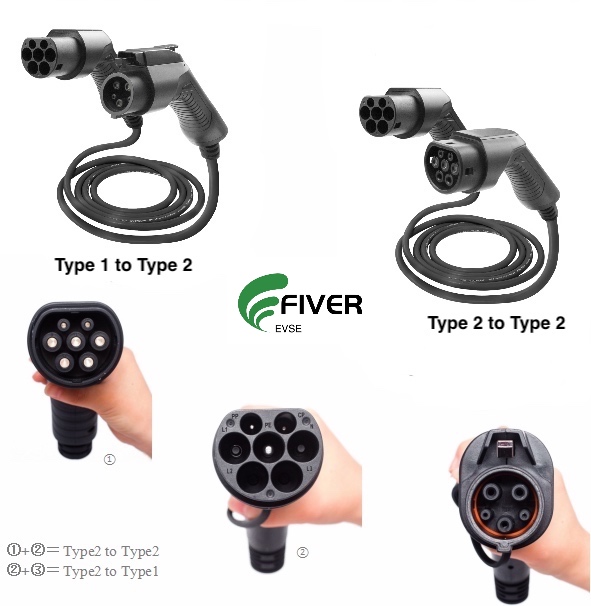

16A 1 Phase Mode 3 Type 1 to Type 2 EV Charging Cable

16A 1 Phase Mode 3 Type 1 to Type 2 EV Charging Cable

Rated current: 16A
Rated voltage: 250V AC
Operation Temp.:-30℃ ~ + 50℃
IP protection class: IP 55 ( working condition)
Product description: We are a manufacturer of EV Charging equipments and accessories. know more on www.fiverevse.com
INQUIRY

Key Features:

Plug type: SAE J1772 Type1
Power supply plug: IEC 62196 Type2
Input power: 1 phase, 16A
Output power: 3.6kW
Operational voltage:110V- 250 VAC
Operational temperature: -30 °C to +50 °C
Cable SPEC: 3X2.5mm²+2×0.75mm²
Case Material: Copper, Thermoplastic material
Pin Material: Copper Alloy, Silver+ Thermoplastic On the Top
Mechanical life: No load plug in/out > 10000 times
IP Grade: IP55
Flame Retardant Grade: UL94V-0
Contact impedance: 0.5m Ω Max
Insulation resistance: > 1000M Ω
Terminal temperature rise: <50K
UV resistant: Yes
Certificates: CE, TUV
Cable length 5 m (Can Be Customized)
Weight 1.7 kg
Warranty 12 months
