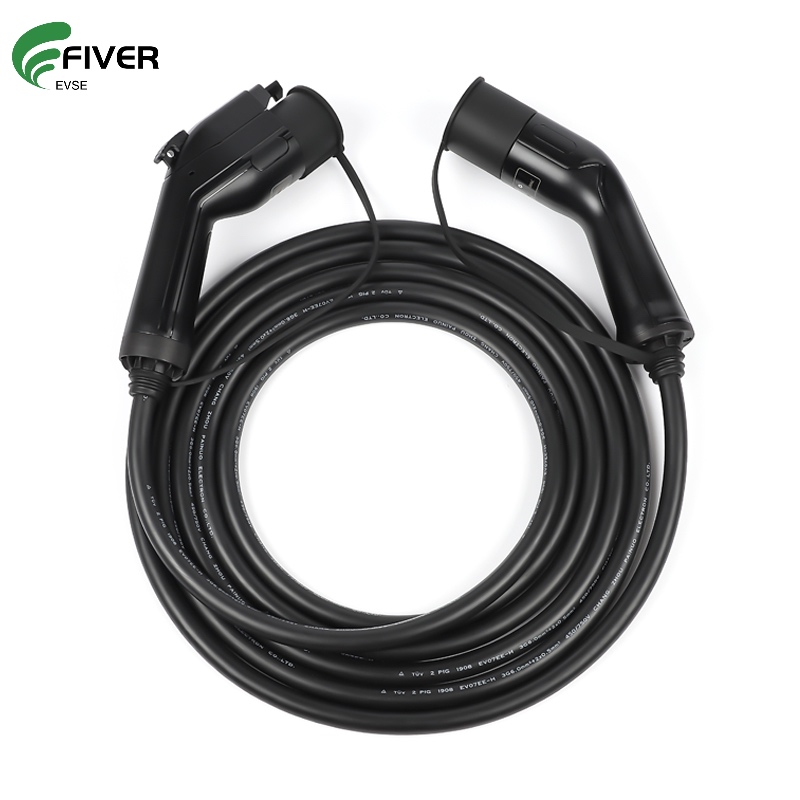

Mode 3 1 Phase 32A/40A Type 1 to Type 2 EV Charging Cables

Mode 3 1 Phase 32A/40A Type 1 to Type 2 EV Charging Cables

Rated current: 32A/40
Rated voltage: 250V AC
Operation Temp.:-30℃ ~ + 50℃
IP protection class: IP 55 ( working condition)
Product description: The mode3 ice 62196 to Sae j1772 cable charger can use with the home or public mode3 socket type ev charging station, then you can charge your American standard EVs on the EU standard charging statio
INQUIRY

Key Features:

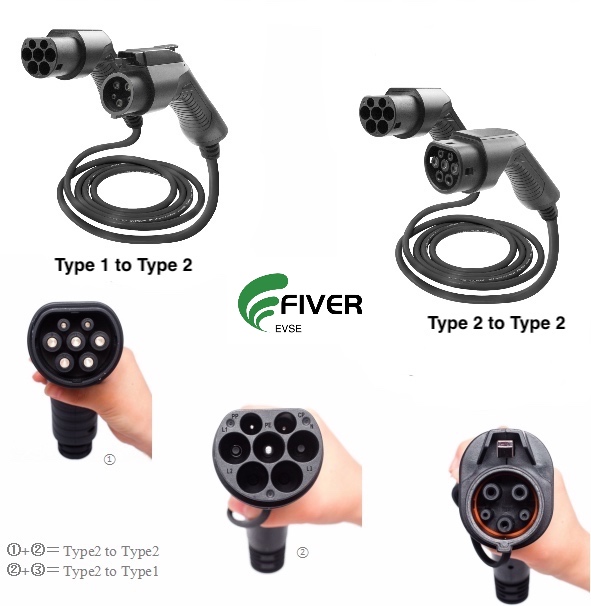

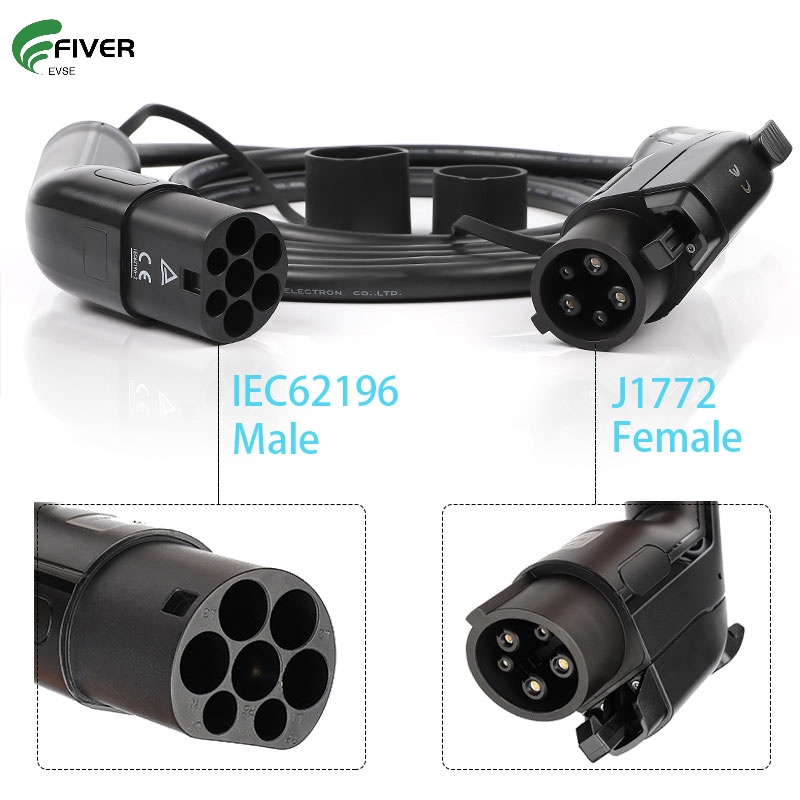

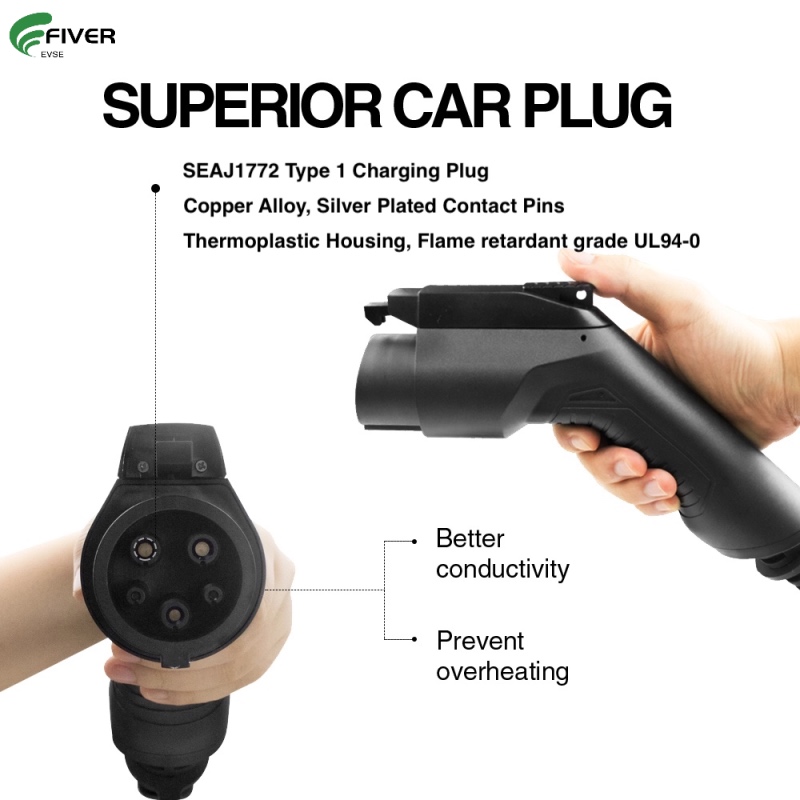

Plug type: SAE J1772 Type1

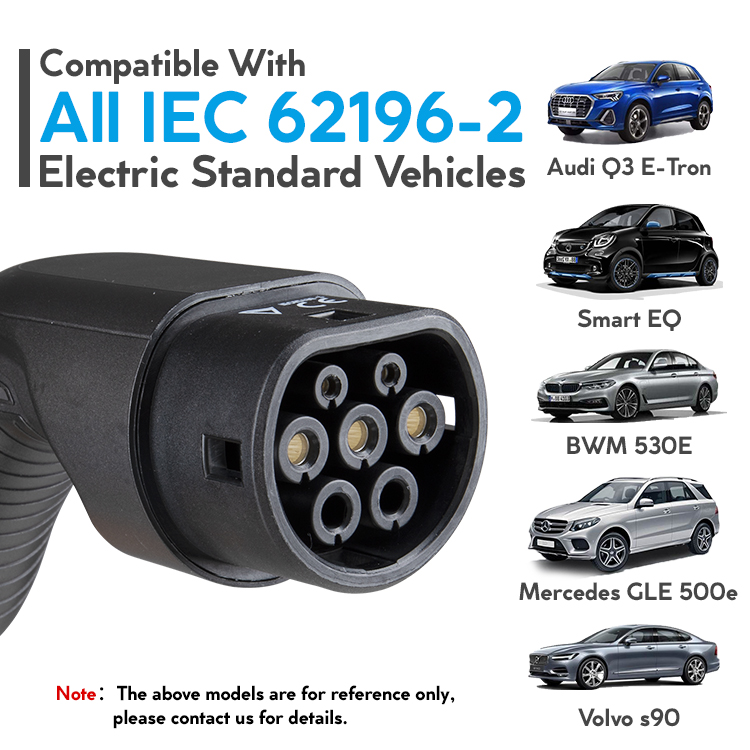

Power supply plug: IEC 62196 Type2
Input power: 1 phase, 32A/40A
Output power: 7.2 kW/10kw
Operational voltage:110V- 250 VAC
Operational temperature: -30 °C to +50 °C

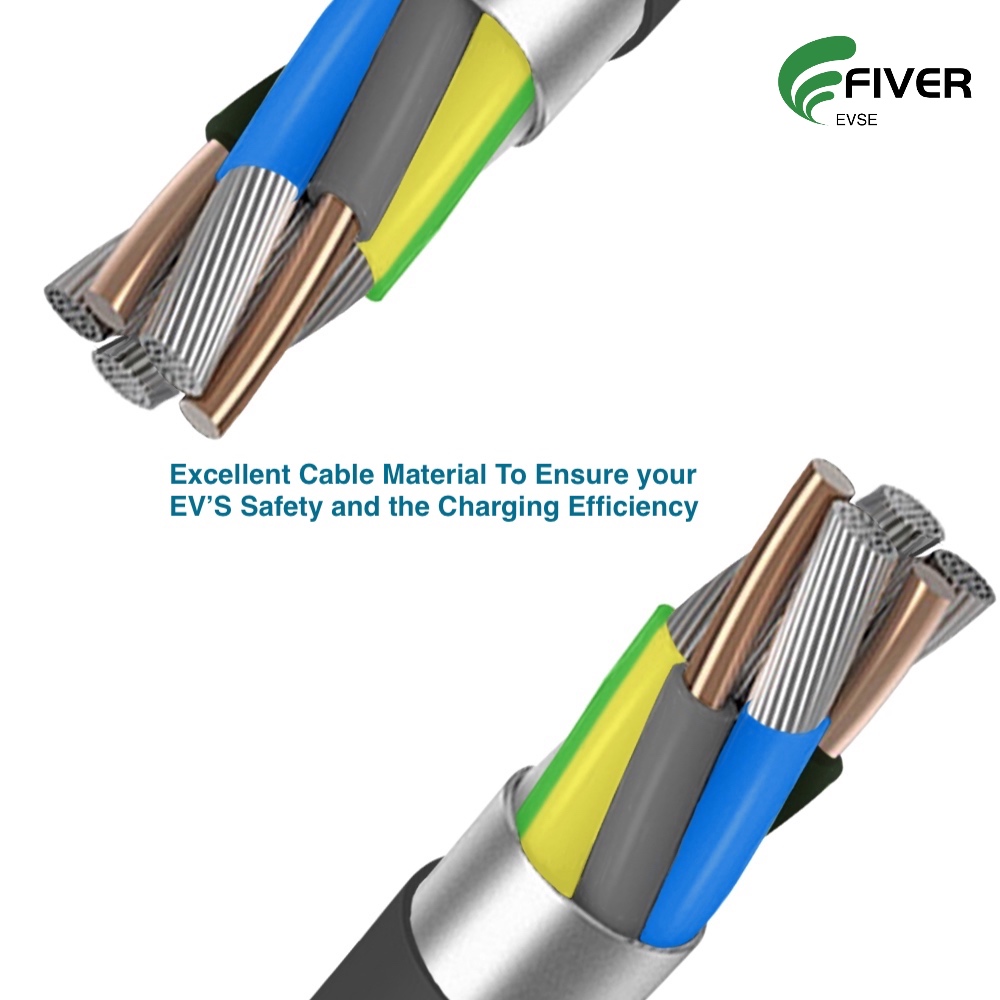

Cable SPEC: 3X6mm²+2×0.75mm² (32A)

3X8mm²+2×0.75mm². (40A)

Case Material: Copper, Thermoplastic material

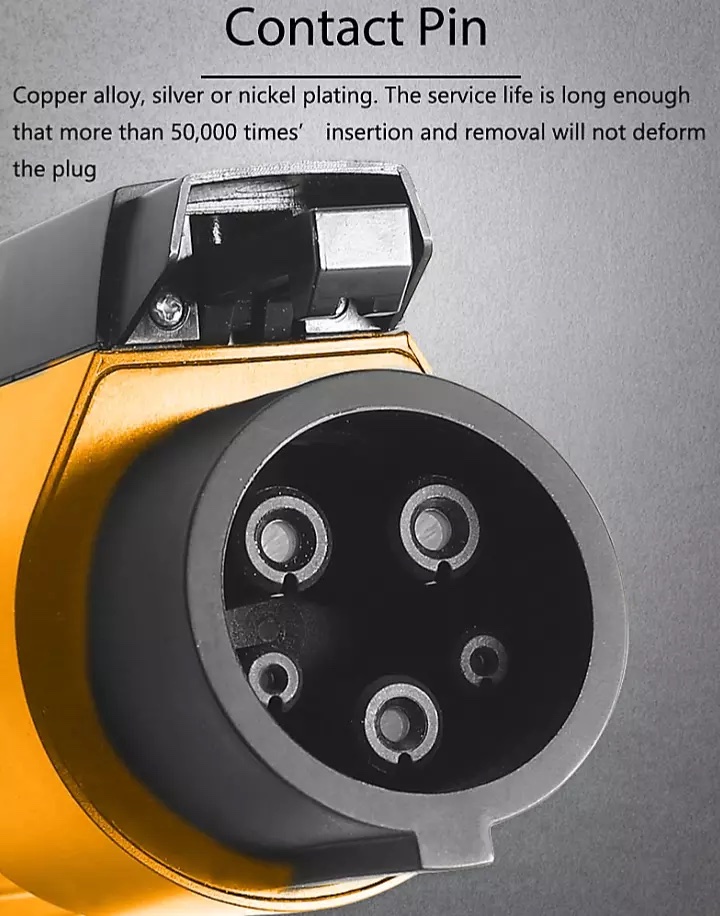

Pin Material: Copper Alloy, Silver+ Thermoplastic On the Top
Mechanical life: No load plug in/out > 10000 times
IP Grade: IP55
Flame Retardant Grade: UL94V-0
Contact impedance: 0.5m Ω Max
Insulation resistance: > 1000M Ω

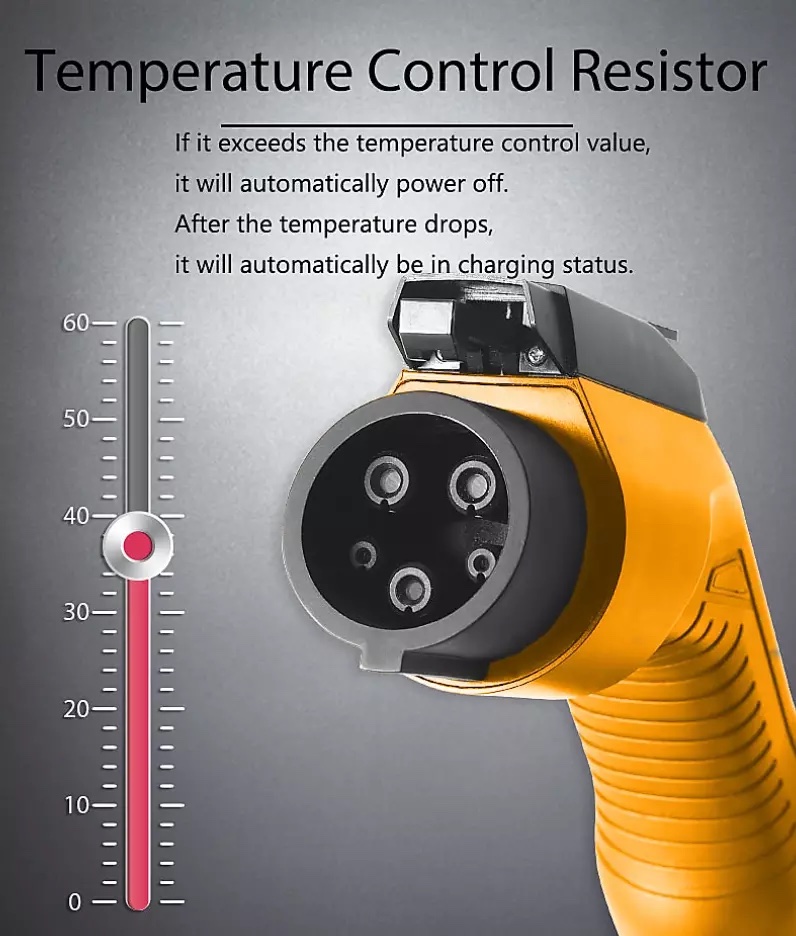

Terminal temperature rise: <50K
UV resistant: Yes
Certificates: CE, TUV

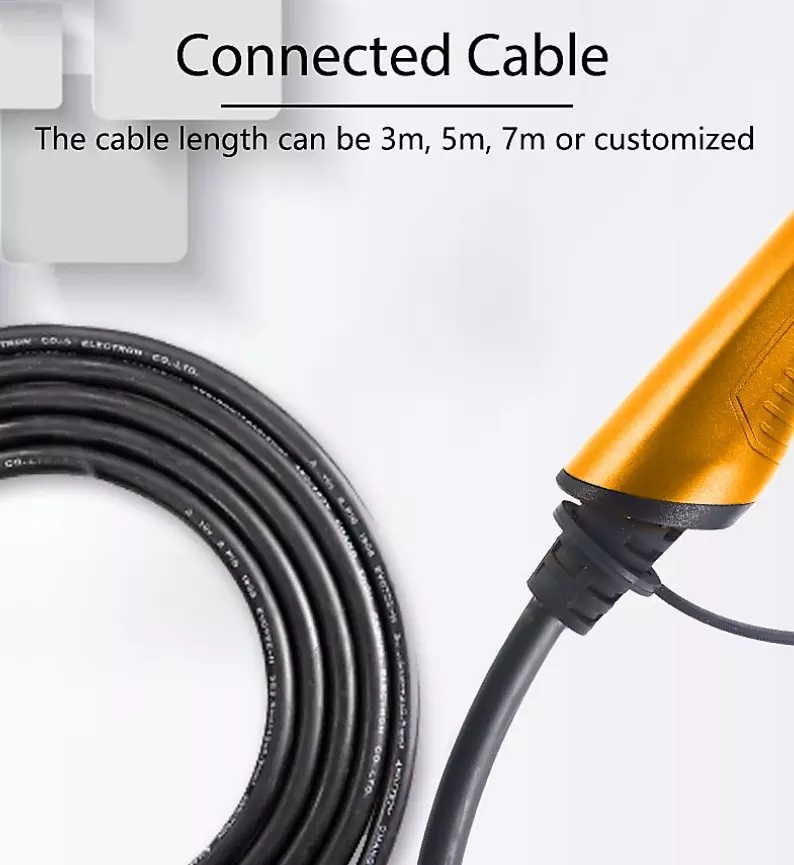

Cable length 5 m (Can Be Customized)
Weight 1.7 kg
Warranty 12 months
