Type 2

3Phase 16A Current Adjustable 11KW Portable EV Charger Type 2 Connector Red CEE Plug

Rated Power: 11KW
Rated voltage: AC380V+/-10% 50/60Hz

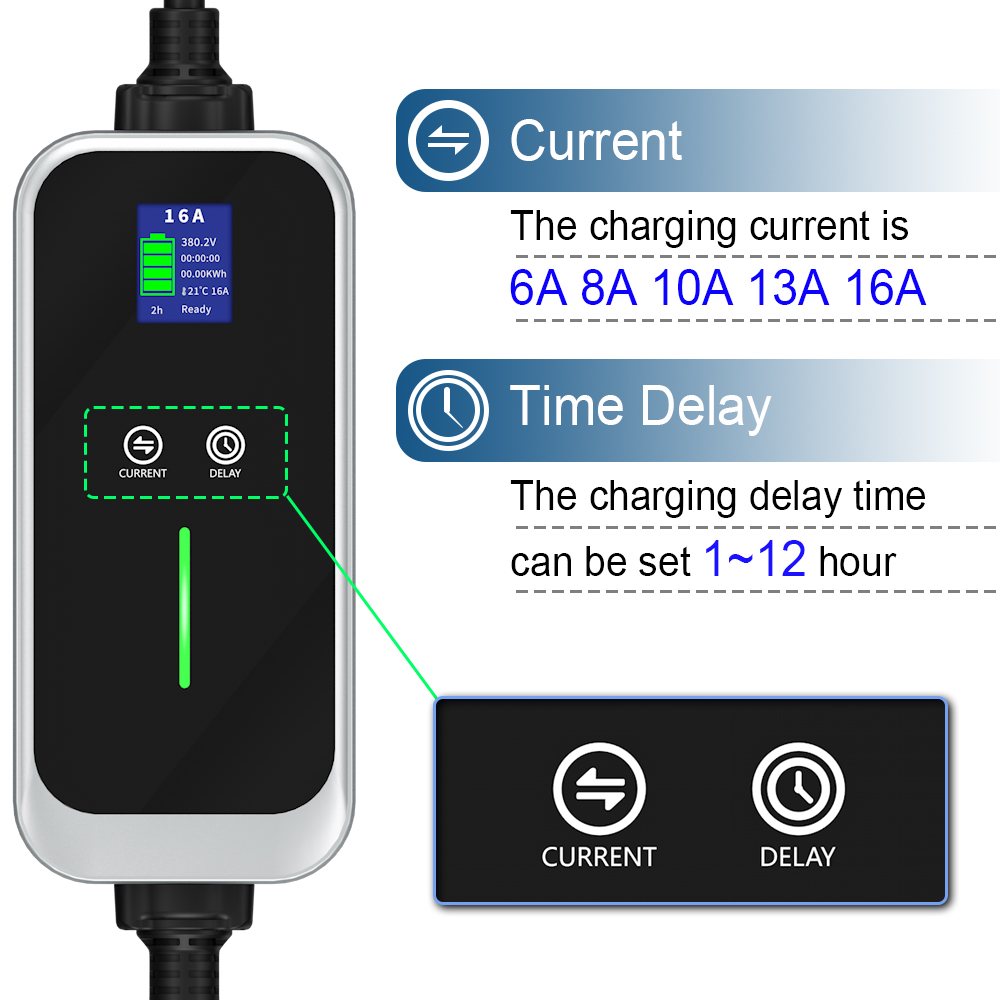

Rated Current: 6-8-10-13-16A Adjustable
IP protection class: IP 67 ( working condition)
Product description: This 11KW portable EV charger is a safe, reliable and efficient option for anyone looking to charge an electric vehicle. With its adjustable current rating, delayed charging feature and fast charging
INQUIRY

3Phase 16A Current Adjustable 11KW Portable EV Charger Type 2 Connector Red CEE Plug

Specifications:

Rated Current	3 Phase 16A	3Phase 32A
Rated Power	11KW	22KW
Operation Voltage	AC 3Phase 380V +/- 10%
Rate Frequency	50Hz/60Hz
Leakage Protection	Type B RCD ( Optional )
Withstand Voltage	2000V
Contact Resistance	0.5mΩ Max
Terminal Temperature	＜50K
Shell Material	ABS and PC Flame Retardant Grade UL94 V-0
Mechanical Life	No-Load Plug In / Pull Out ＞10000 Times
Operating Temperature	-25°C ~ +55°C
Storage Temperature	-40°C ~ +80°C
Protection Degree	IP67 ( EV Charging Plug ) , IP67 ( EV Charging Box )
EV Control Box Size	260mm (L) X 102mm (W) X 77mm (H)
Weight	3.80KG
OLED Display	Temperature, Charging Time, Actual Current, Actual Voltage, Actual Power, Capacity Charged, Preset Time
Standard	IEC 62752 , IEC 61851
Certification	TUV,CE Approved
Protection	1.Over and under frequency protection 2. Over Current Protection 3.Leakage Current Protection (restart recover） 4. Over Temperature Protection 5.Overload protection (self-checking recover) 6. Ground and Short circuit protection 7.Over voltage and under-voltage protection 8. Lighting Protection

Features:

3Phase 16A Current Adjustable 11KW <a href=https://fiverevse.com/Level-2--Portable--EV--Chargers.html target='_blank'>Portable EV Charger</a> Type 2 Connector Red CEE Plug

1.Safe and reliable, fast charging.

This Portable EV Charger is designed with safety and reliability in mind, this Level 2 EV charger is perfect for home use or on-the-go. With a rated current of 16A (three-phase) and a maximum output of 11KW, this charger can provide fast and efficient charging for your electric vehicle.

11KW Level 2 <a href=https://fiverevse.com/Level-2--Portable--EV--Chargers.html target='_blank'>Portable EV Charger</a>

2. Meet the needs of different application scenarios.

This Portable EV Charger is compatible with most electric vehicles on the market, suitable for both indoor and outdoor use. It has a working voltage of AC 440V and a frequency of 50Hz/60Hz, making it a versatile and convenient choice for any EV owner. One of the outstanding features of this product is the adjustable rated current, you can choose between 6A, 10A, 13A and 16A. This means you can tailor the charging rate to your specific vehicle requirements, making it more energy efficient and better suited to your EV.

level 2 ev charger, 11kw home ev charger

3.This EV charger is CE and TUV certified

To ensure its quality and reliability. it's with all-round protections, to ensure your car's safety. the housing of this product is made of ABS and PC flame retardant grade UL94 V-0, making it durable and safe to use under any conditions. its IP67 grade protection, cab be used both indoor and outdoor.

4.Long service life.

With a mechanical life of more than 10,000 no-load insertions and removals, this Portable EV Charger is durable enough to give you years of reliable service.
