Mode 2 16A Current Adjustable Type 2 Charging Connector Portable EV Charger, Electric Vehicle Charging System

Rated current: 16A
Rated voltage: 110V-250V AC
Operation Temp.:-30℃ ~ + 50℃
IP protection class: IP 66 ( working condition)
Product description: This 16A Current Adjustable Charger from www.fiverevse.com is designed to meet the EU standard IEC62192. the current is adjustable 8A/10A/13A/16A.
INQUIRY

Product Features:

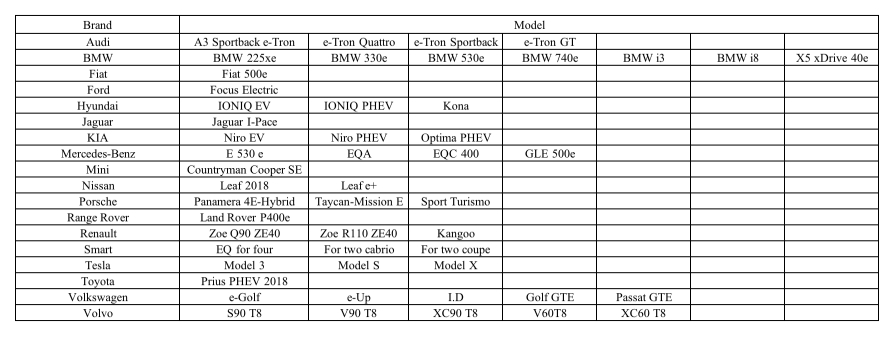

1. This Portable EV Charger is comply with most standard type 2 electric vehicles.

2. Built in chip ，automatically repair non safety faults

3. Waterproof level reached highest level of civil products

4. Monitor the charging temperature of the box in real time , ensure the safety of the charger and your car.

5. Complete protection mechanism of over-voltage protection, lightning protection, etc

6. TUV, CE, FCC, CCC certificated. Quality Assured.

Basic Data

Rated current	Adjustable: 8A/10A/13A/16A
Rated voltage	110V AC - 240V AC
Charging Plug	Type 2/ Mennekes Plug
Insulation resistance	>1000MΩ (DC500V)
Terminal temperature rise.	<50K
Withstand Voltage	2000V
Mechanical life	Non-load plug in / plug out > 10000 times; can withstand 1m drop test and 2T vehicle running over pressure test.
Material	Charging Box: Thermoplastic, Flame retardant grade UL94-0; Pin: Cooper alloy, sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP 66
Protection	RCD Type A Leakage; Over-voltage;Under-voltage;Overload protection (self-checking recover), Over-temperature and Lightning protection

How to identify my car is type 1 or type 2?

Before you order the Portable EV Charger, first you need to know your car is a type 1 or type 2, it's easy to identify just by looking at the charging socket of your car, Type 1 charging socket is normally with 5 pins, (always selling in North America countries or Japan); Type 2 electric cars charging socket with 7 pins.(Type 2 electric cars always selling in the EU Market) the following picture showing the details.

How to charge my car with this charger?

1. Firmly plug the power supply socket into the suitable power outlet. ( remember to choose a socket which can withstand the Highest current, for example for this 16A Charger, the socket need to withstand at lest 16A current)

2. Remove the protection cap on the inlet plug, and insert the charging cord into your car's inlet socket firmly and completely till it clicks.

3. Choose the suitable Current by pressing the switch button on the control box. then start charging. the charging status shows as following.

How to stop the charging ?

1. Disconnect the power supply plug from the power outlet.

2. Disconnect the charging cord from your car inlet.

3. Close the cap on the charging cord, to protect the cord from dust and water for a longer life span.

Remember, our charger have multiple protections, it will automatically shut down, once the charging finished without worrying of overcharge.

How Fast can this charger charge?

Our EV Chargers are level 2 chargers, which is 4 to 12 times quicker that your old level 1 chargers.

EV Charging Power and Time

Charger	AC/DC	Rated Power	30kWh Battery	60kWh Battery	90kWh Battery
Schuko 16A	AC	3.6kW	8hrs	16hrs	24hrs
Schuko 32A	AC	7.2kWh	4hrs	8hrs	12hrs
1-phase 16A	AC	3.6kW	8hrs	16hrs	24hrs
1-phase 32A	AC	7.2kWh	4hrs	8hrs	12hrs
3-phase 16A	AC	11kW	3hrs	6hrs	9hrs
3-phase 32A	AC	22kW	1.5hrs	3hrs	4.5hrs
DC Fast charge	DC	50kWh	40mins	80mins	120mins
Tesla Supercharger	DC	120kW	15mins	30mins	45mins
