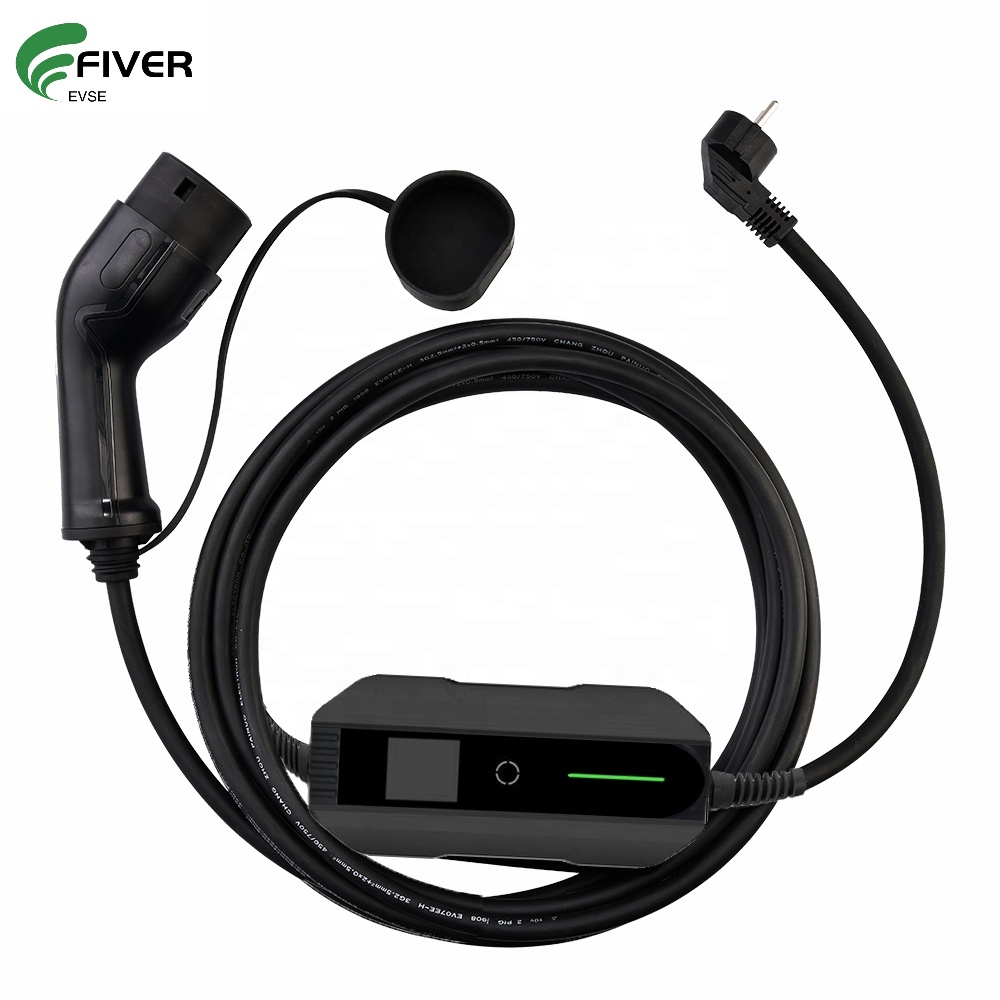

Portable Level 2 Type 2 32A Current Adjustable EVSE

  • Rated current: 32A
  • Rated voltage: 110V-250V AC
  • Operation Temp.:-30℃ ~ + 50℃
  • IP protection class: IP 66 ( working condition)

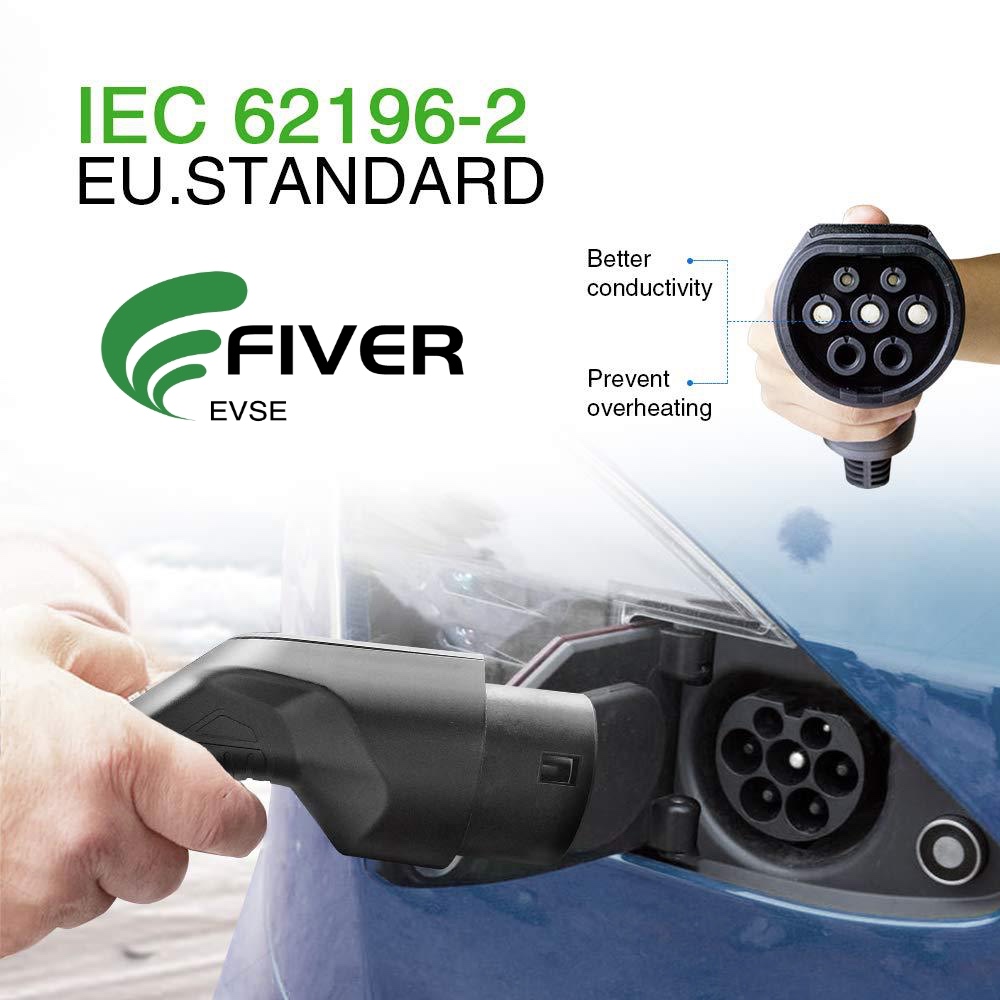

  • Product description: This 32A Current Adjustable Portable EV Charger from www.fiverevse.com with type 2 connector, meets the EU IEC62196-2 standard.
  • INQUIRY


Product Features:

1. This  Portable EV Charger is comply with most standard type 2 electric vehicles.

2. Built in chip ,automatically repair non safety faults

3. Waterproof level reached highest level of civil products

4. Monitor the charging temperature of the box in real time , ensure the safety of the charger and your car.

5. Complete protection mechanism of over-voltage protection, lightning protection, etc

6. TUV , CE, FCC, CCC certificated. Quality Assured.

LCD Screen Status:

Basic Data

Rated current

Current Adjustable 8A,10A,13A,16A,24A, 32A

Rated voltage

110VAC- 250V AC

Charging Plug

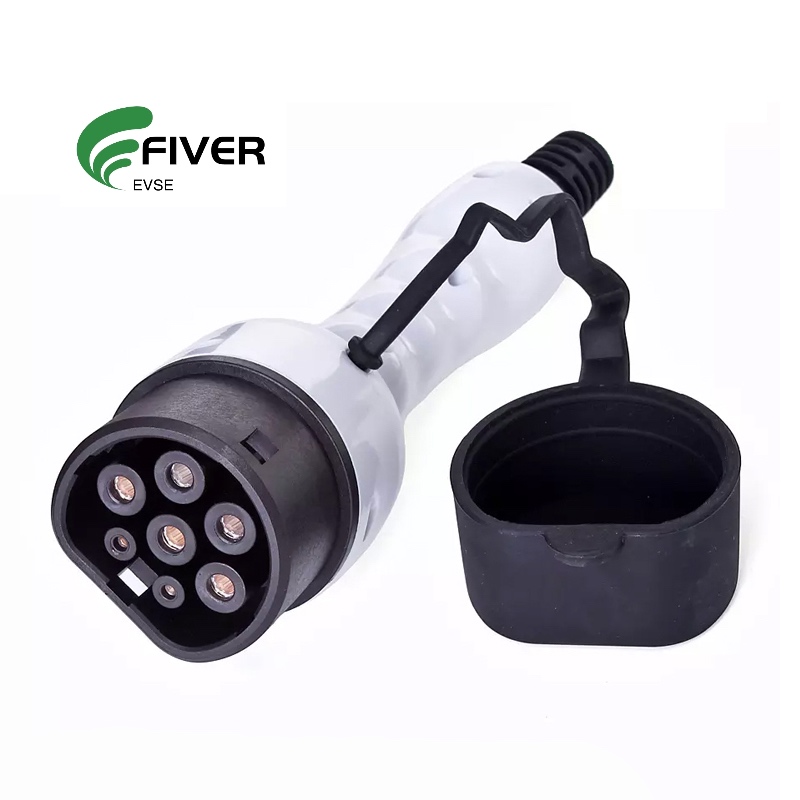

IEC26196 Type 2 Plug

Insulation resistance

>1000MΩ (DC500V)

Terminal temperature rise.

<50K

Withstand Voltage

2000V

Mechanical life

Non-load plug in / plug out > 10000 times; can withstand 1m drop test and 2T vehicle running over pressure test.

Material

Charging Box: Thermoplastic, Flame retardant grade UL94-0;

Pin: Cooper alloy, sliver + thermoplastic on the top

Operation Temp.

-30℃ ~ + 50℃

IP protection class

IP 66

Protection

RCD Type A Leakage; Over-voltage;Under-voltage;Overload protection (self-checking recover), Over-temperature and Lightning protection

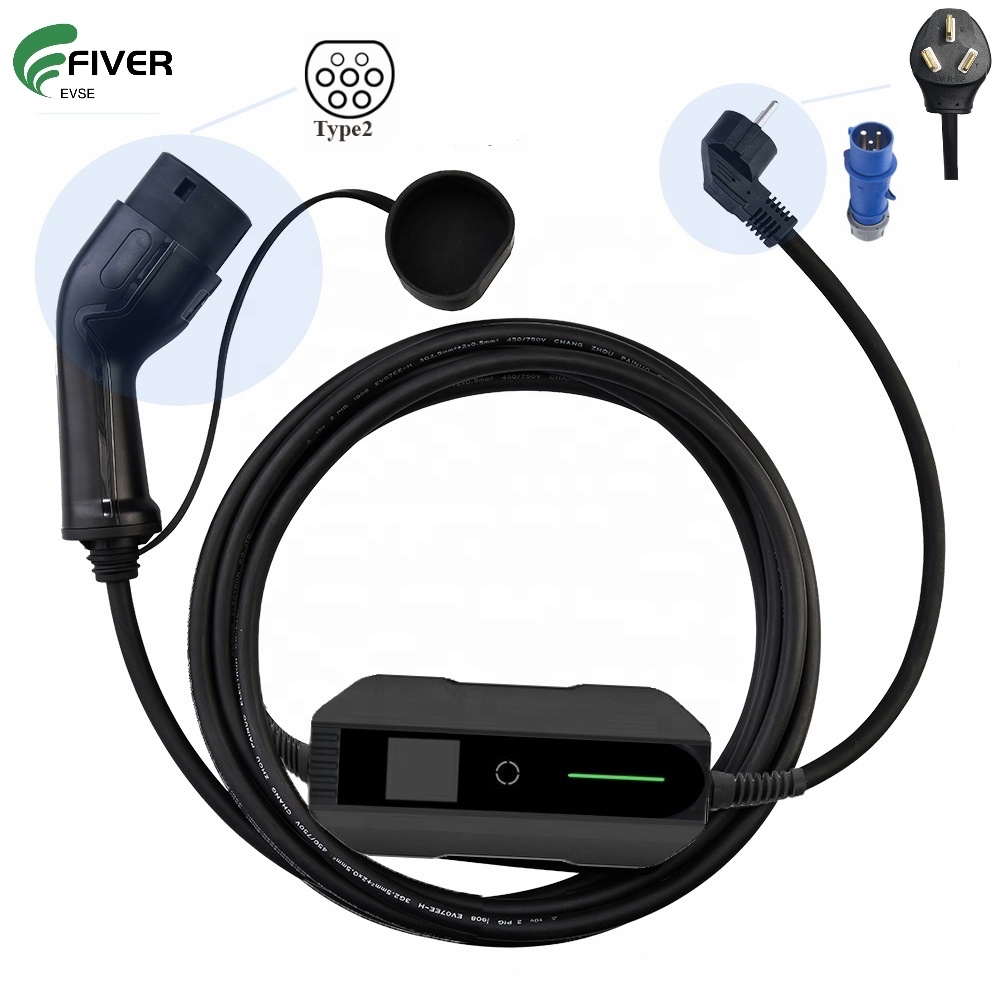

Power Plug Options:

Blue CEE Plug and NEMA10-50 Plug
