Type 2

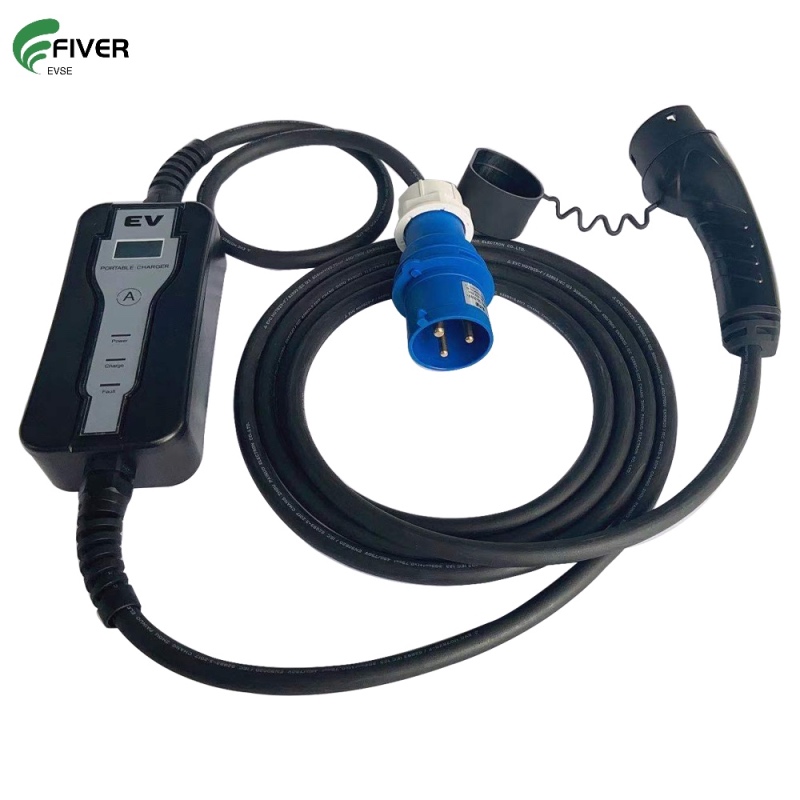

Portable 32A Current Adjustable Type 2 EV AC Charger, Electric Vehicle Chargers

Rated current: 32A,25A, 16A,13A,10A, 8A
Rated voltage: 110V-415V AC
Operation Temp.:-30℃ ~ + 50℃
IP protection class: IP 66 ( working condition)

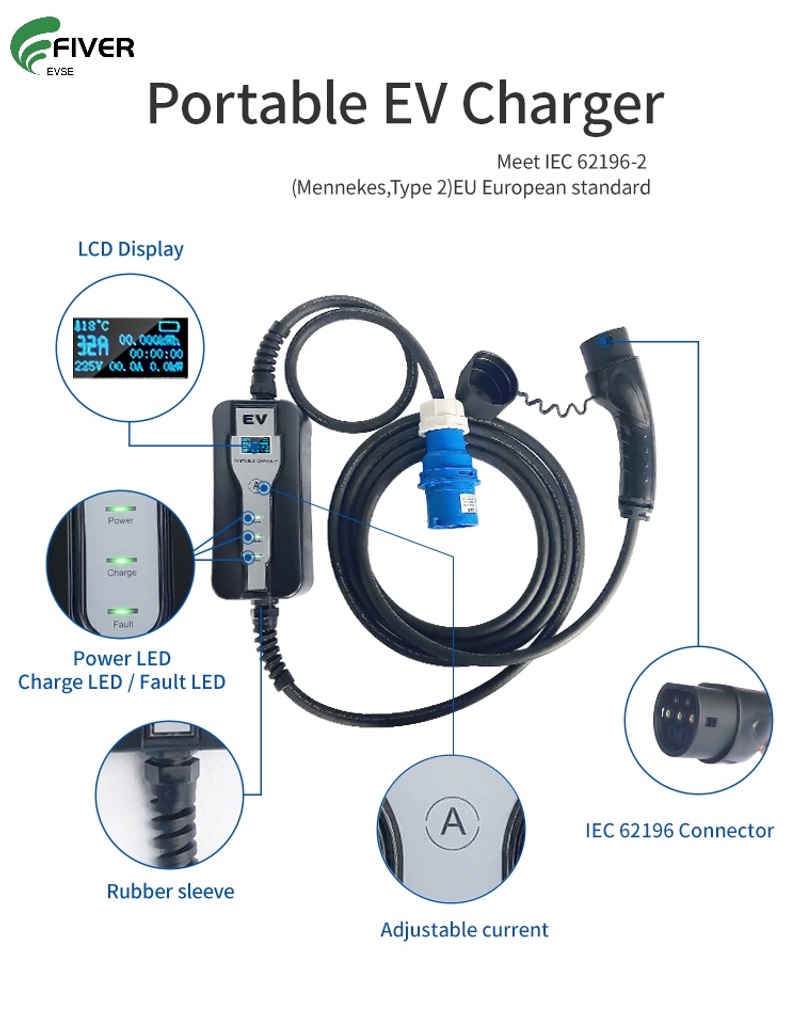

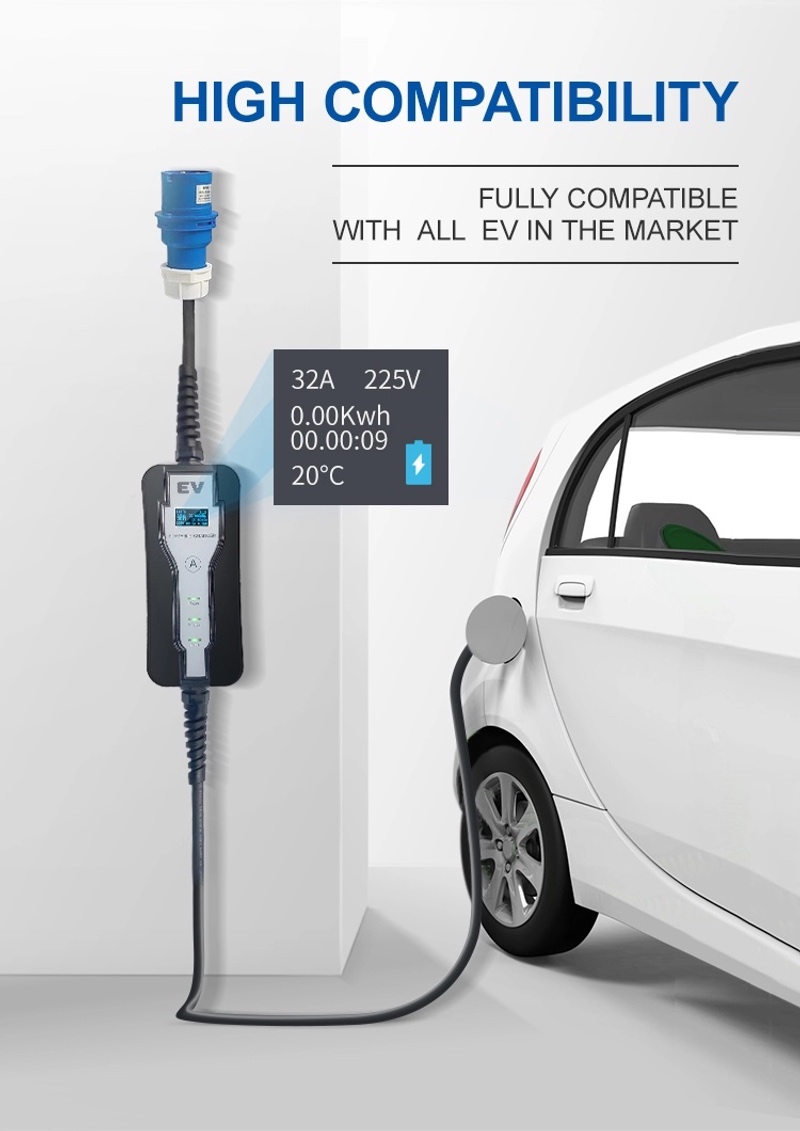

Product description: This Type 2 32A Current Adjustable Portable EV Charger is Fully Compatible with Electric Vehicles with Type 2 Sockets.
INQUIRY

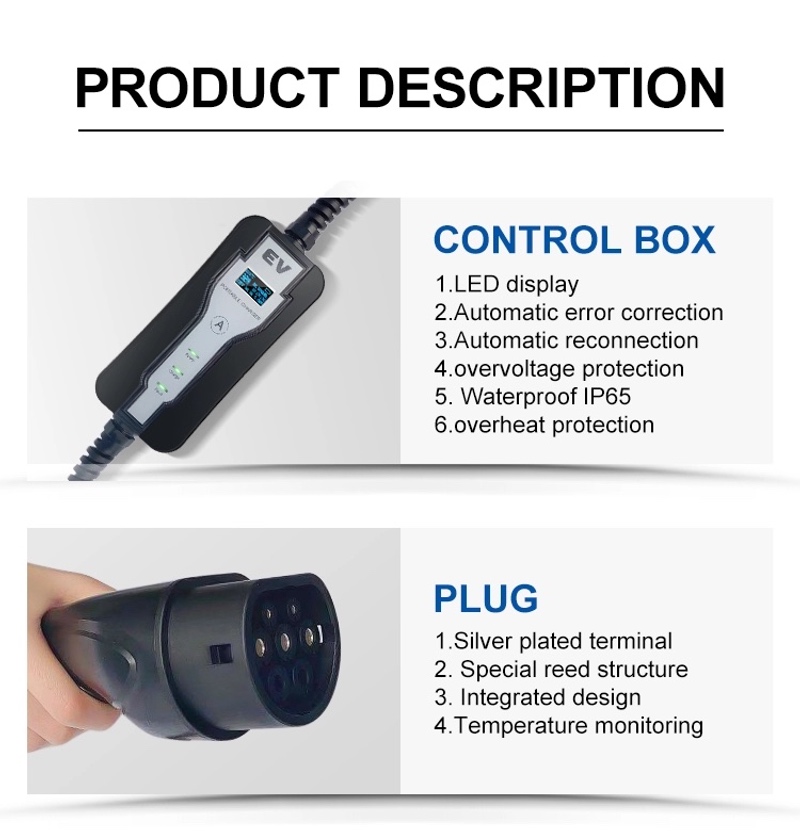

Product Features:

1. This Portable EV Charger is comply with most standard type 1 electric vehicles.

2. Built in chip ，automatically repair non safety faults

3. Waterproof level reached highest level of civil products

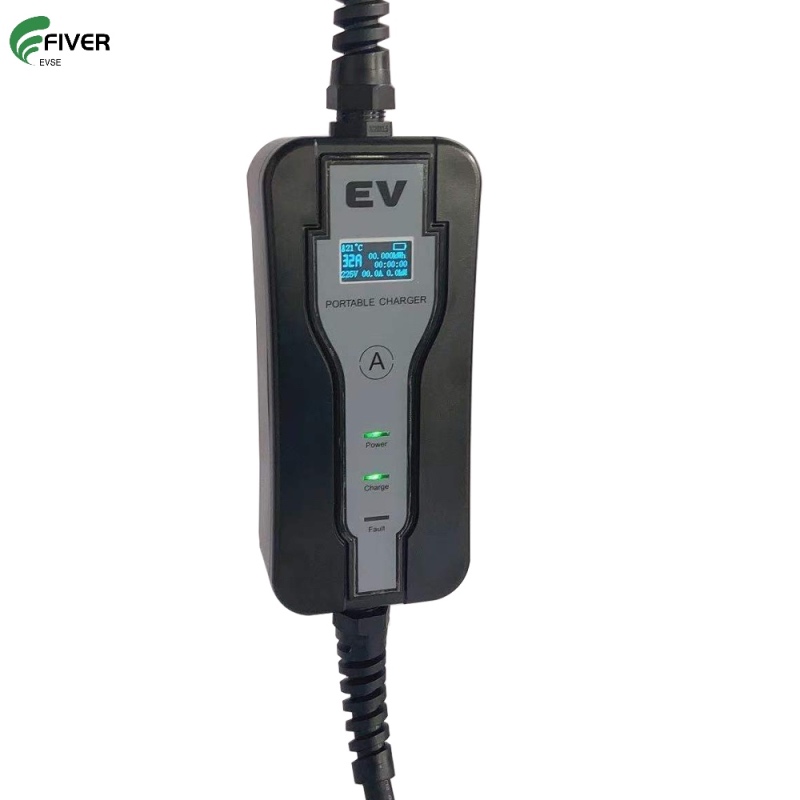

4. Monitor the charging temperature of the box in real time , ensure the safety of the charger and your car.

5. Complete protection mechanism of over-voltage protection, lightning protection, etc

6. TUV, CE, FCC Certificated. Quality Assured.

Basic Data

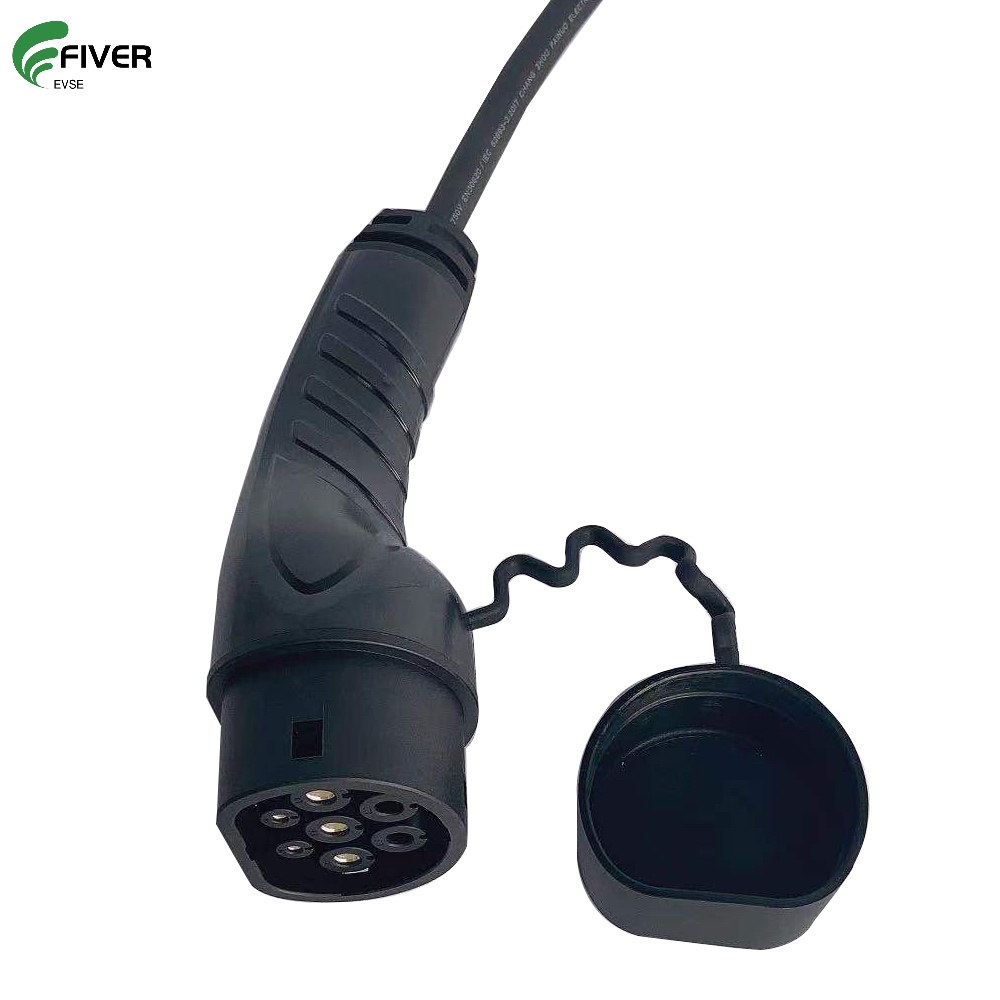

Charging Plug Type	IEC62196-2 Type 2 Plug

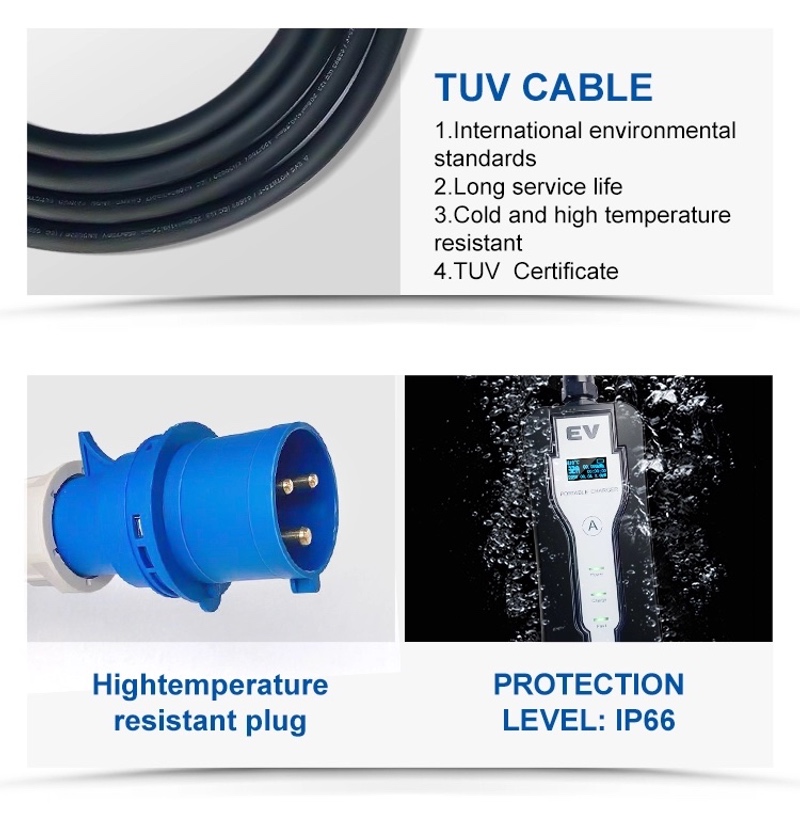

Power Supply Plug	Blue CEE Plug, NEMA14-50 Plug
Input Power	110V AC - 250V AC
Output Power	110V AC -250 AC
Adjustable Amperes	8A- 10A-13A-16A-25A-32A
Warranty	One Year
Insulation resistance	>1000MΩ (DC500V)
Terminal temperature rise.	<50K
Max Withstand Voltage	2000V
Mechanical life	Non-load plug in / plug out > 10000 times; can withstand 1m drop test and 2T vehicle running over pressure test.
Material	Charging Box: Thermoplastic, Flame retardant grade UL94-0; Pin: Cooper alloy, sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP 66
Protection	RCD Type A Leakage; Over-voltage;Under-voltage;Overload protection (self-checking recover), Over-temperature and Lightning protection
