Type 2

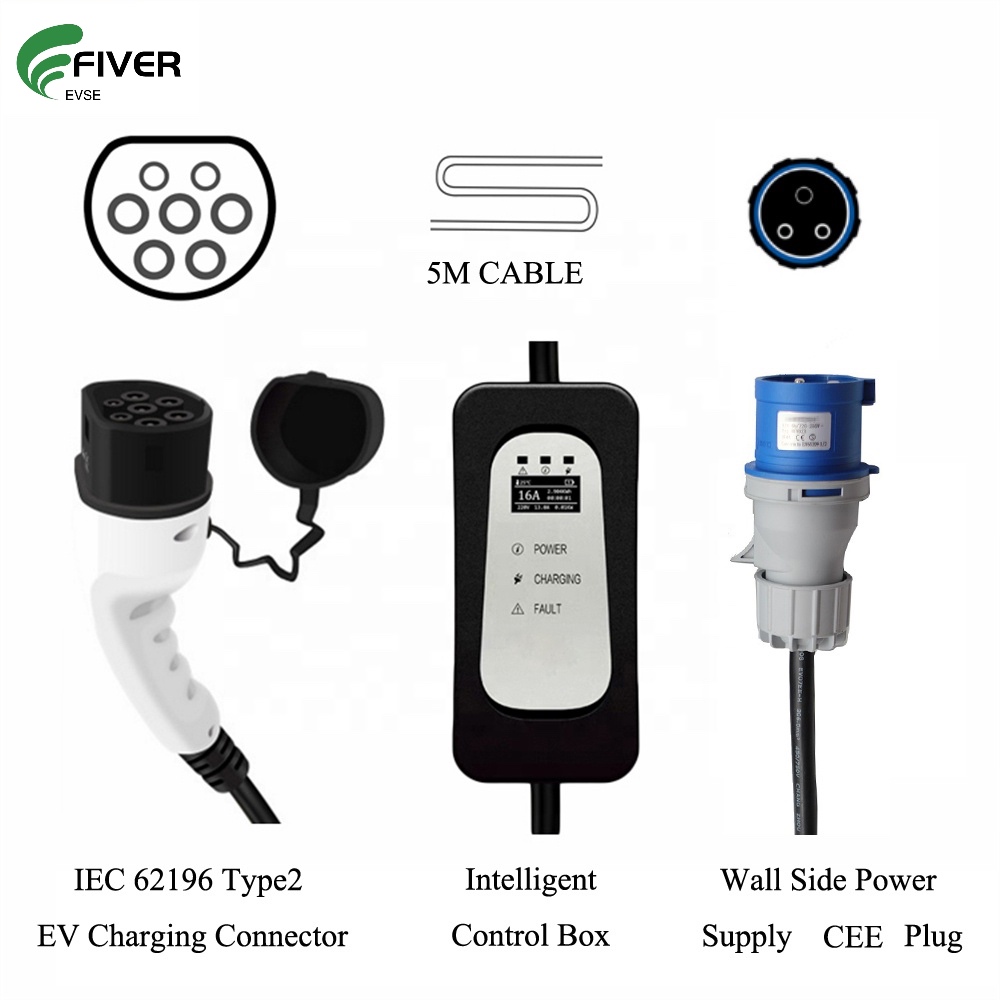

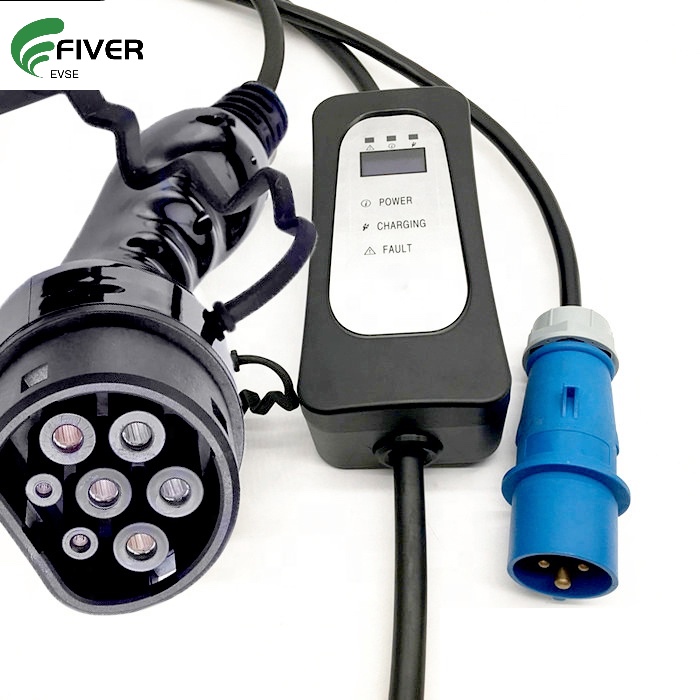

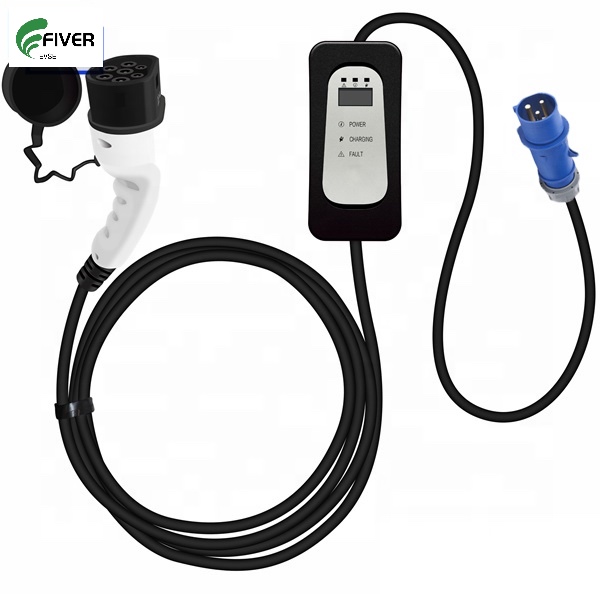

32A Portable Level 2 Type 2 IEC62196 Charging Plug EV Charger

Rated current: 32A
Rated voltage: 110V-250V AC
Operation Temp.:-30℃ ~ + 50℃
IP protection class: IP 54 ( working condition)
Product description: CE Certificated 32A Level 2 Type 2 EV AC Charger, Suitable for the EU standard electric vehicles with Type two plug.
INQUIRY

Product Features:

1. This Portable EV Charger is comply with most standard type 2 electric vehicles.

2. Built in chip ，automatically repair non safety faults

3. Waterproof level reached highest level of civil products

4. Monitor the charging temperature of the box in real time , ensure the safety of the charger and your car.

5. Complete protection mechanism of over-voltage protection, lightning protection, etc

6. TUV CSA, CE, FCC, NTC, CCC certificated. Quality Assured.

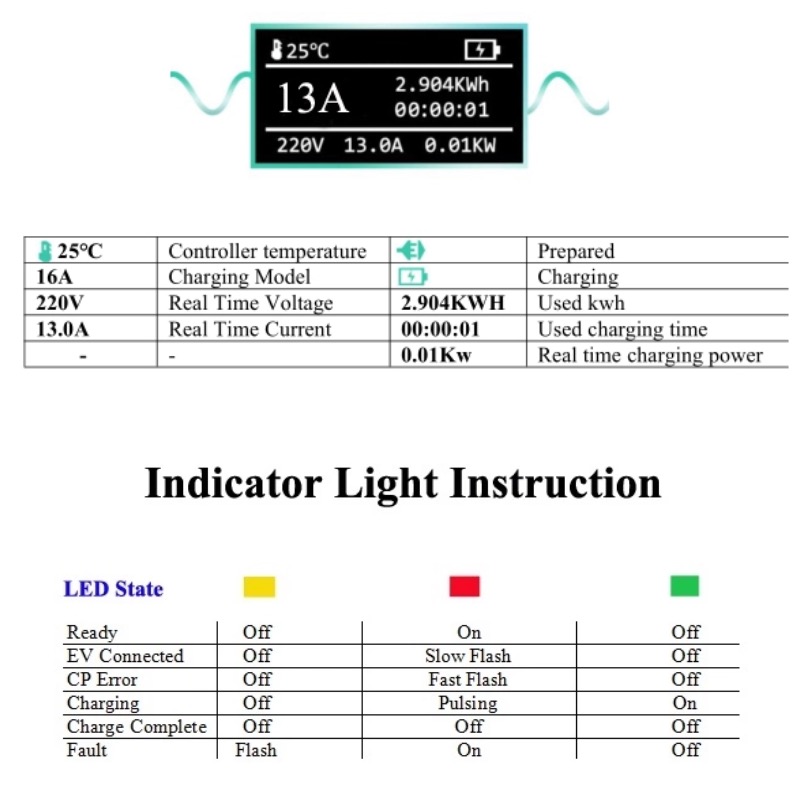

LCD Screen Status:

Basic Data

Rated current	32A
Rated voltage	110V AC - 250V AC

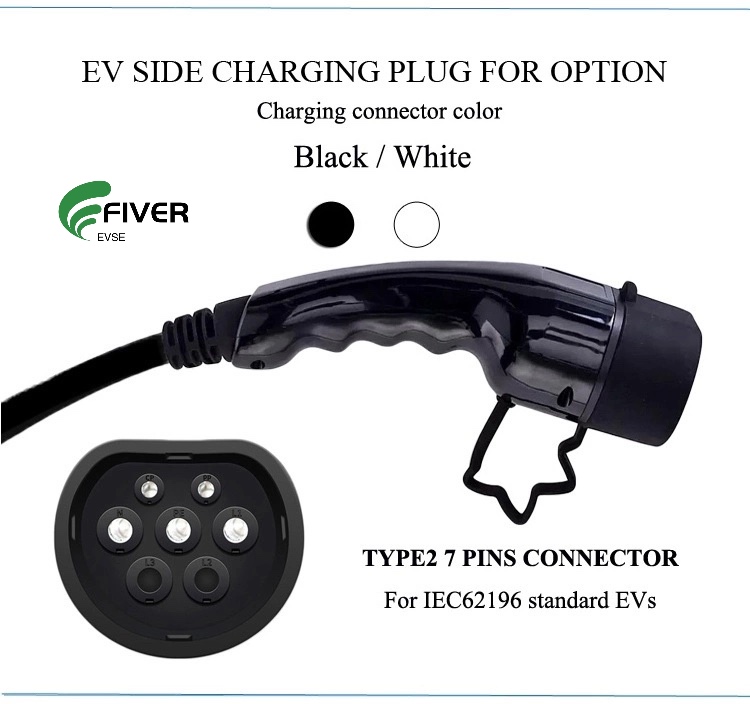

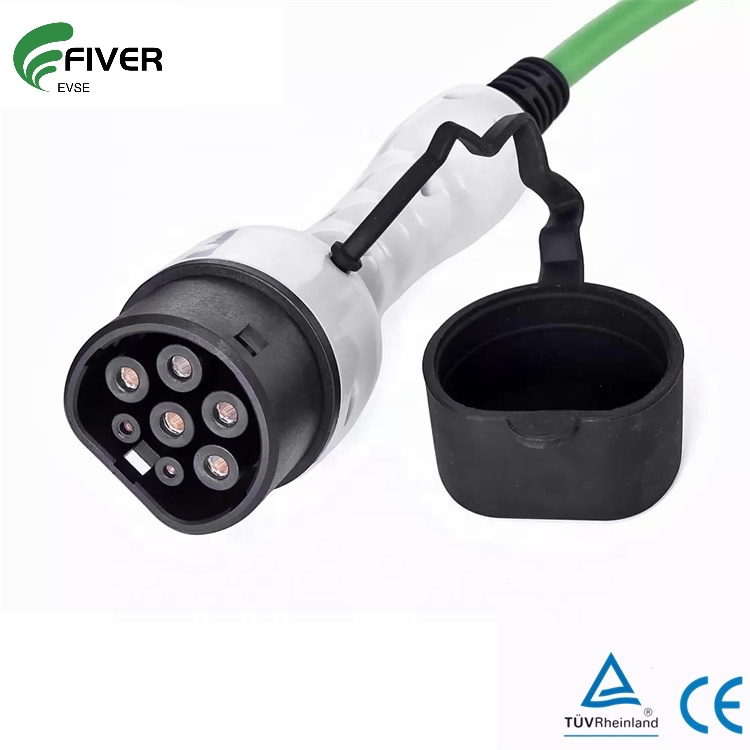

Charging Plug	IEC 62196 Type 2 Plug
Insulation resistance	>1000MΩ (DC500V)
Terminal temperature rise.	<50K
Withstand Voltage	2000V
Mechanical life	Non-load plug in / plug out > 10000 times; can withstand 1m drop test and 2T vehicle running over pressure test.
Material	Charging Box: Thermoplastic, Flame retardant grade UL94-0; Pin: Cooper alloy, sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP 54
Protection	RCD Type A Leakage; Over-voltage;Under-voltage;Overload protection (self-checking recover), Over-temperature and Lightning protection
