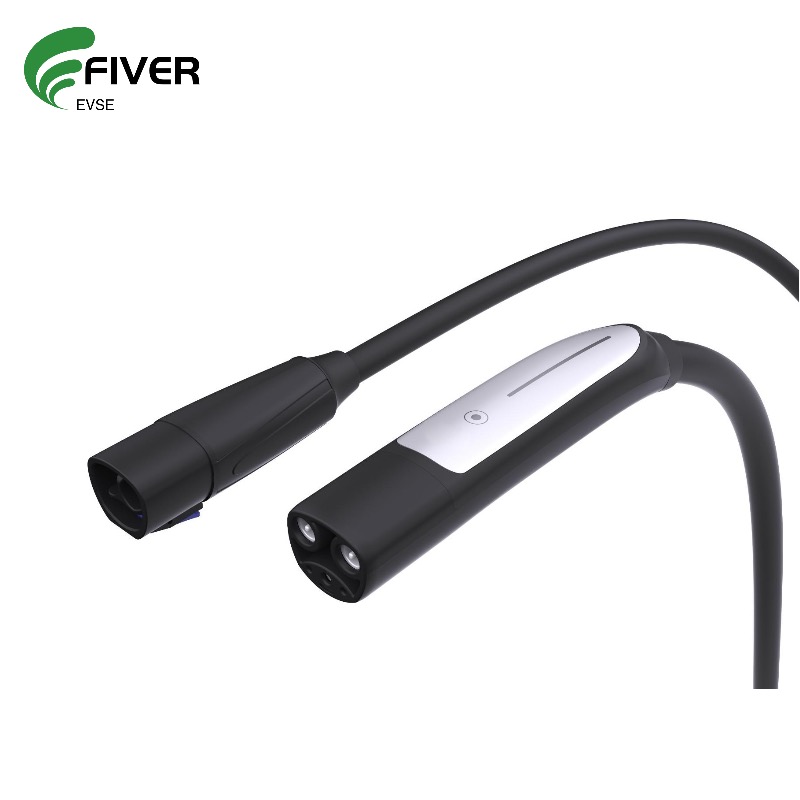

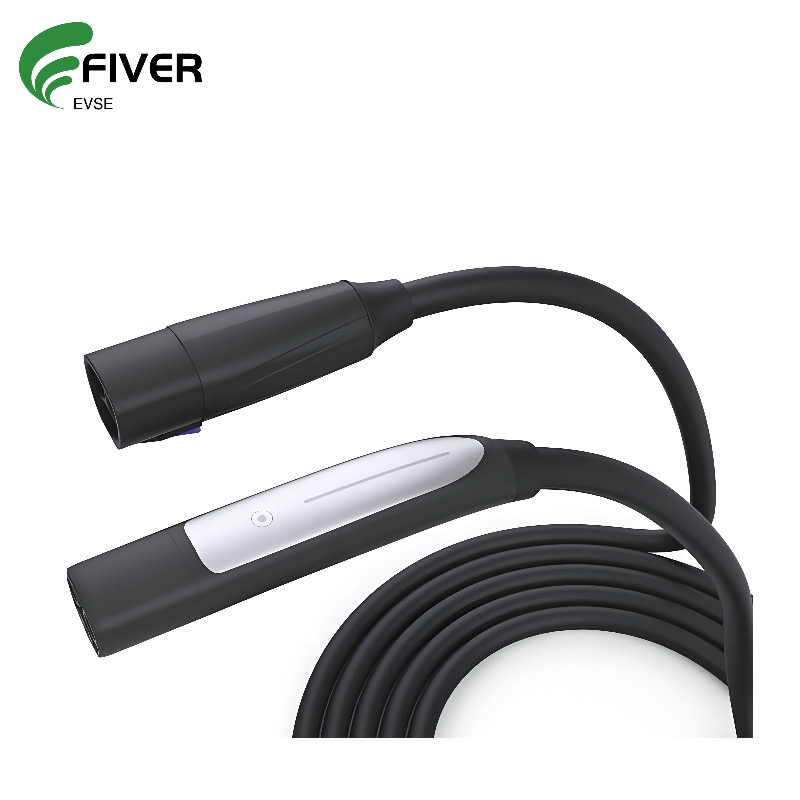

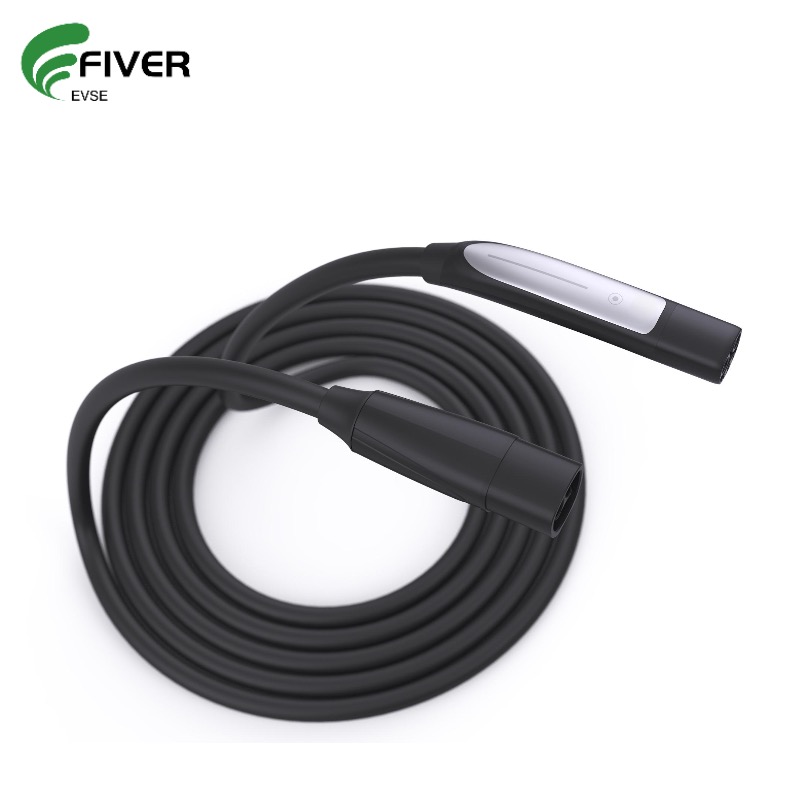

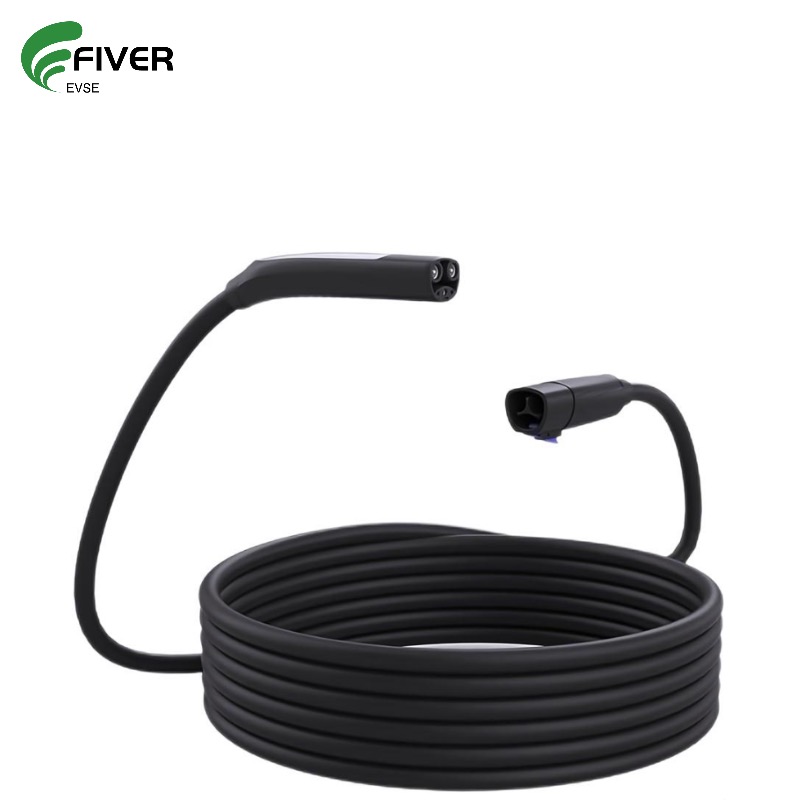

EV Charging Extension Cable 240V 48A 5M NACS Extension Cable

  • Rated Power: 11.5KW
  • Rated voltage: 240V AC
  • Rated Current: 48A
  • IP protection class: IP 67 ( working condition)
  • Product description: This 240V 48A 5M/21FT NACS EV Charging Extension Cable, with a female NACS Connector at one end a male J3400 plug at the other, connected with 5M cable, suitable for those cars with NACS inlet to char
  • INQUIRY

EV Charging Extension Cable 240V 48A 5M NACS Extension Cable

EV Charging Extension Cable NACS 240V 48A 5M Extension Cord for EV Charger

Specifications for Fiver's 5M/21FT 240V 48A Extension Cable for EV Charger

Rated Current

48A

Rated Voltage

240V AC

Cable Length

5M/21FT

Contact Resistance

0.5 mΩ Max

Withstand Voltage

2000V

Flammability Rating

UL94V-0

Mechanical Lifespan

>10000 Mating Cycles

Casing Protection Rating

IP67

Casing Material

Thermoplastic UL94V-0

Contact Material

Copper alloy, silver plated

Terminal Temperature Rise

<50K

Insertion & Withdrawal Force

<100N

Certification

UL

Warranty

24 months/10000 Mating Cycles

Operating Environment Temperature

-40℃- +50℃



Features of Fiver's 240V 48A 11.5KW EV Charger Extension Cable

1> NACS Connector Compatibility: Designed to work seamlessly with NACS (North American Charging Standard) equipped electric vehicles, ensuring a secure and efficient charging connection.

2> Powerful Performance: With a 240V voltage rating and 48A current capacity, this extension cable delivers ample power for fast and reliable charging up to 11.5KW/H .

3> 5-Meter Length: The 5-meter length provides additional reach, allowing you to charge your EV from a greater distance. the cable length can be customized according to needs.

4> Durable Construction: Built to withstand  withstand impact, pressure, and wear, and has a fireproof, IP54 waterproof design and silver plated copper alloy contacts, which can prevent overheating, provide better conductivity, and provide maximum protection under challenging conditions.

5> OEM Service welcomed: As a manufacturer of ev charging cables, Fiver welcome OEM service, we can provide customized solutions for all our customers.


How to Use This NACS Extension Cable

Please notice that, this NACS extension cable is only for NACS AC charging, can not used on Tesla Supercharger or NACS DC charging stations.

Why you need a ev extension cord

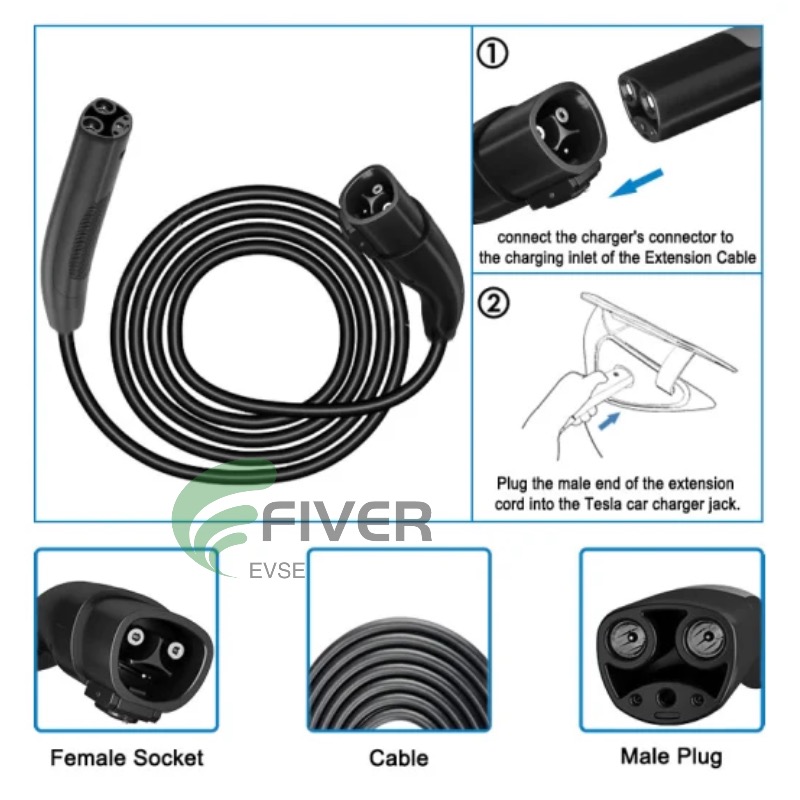

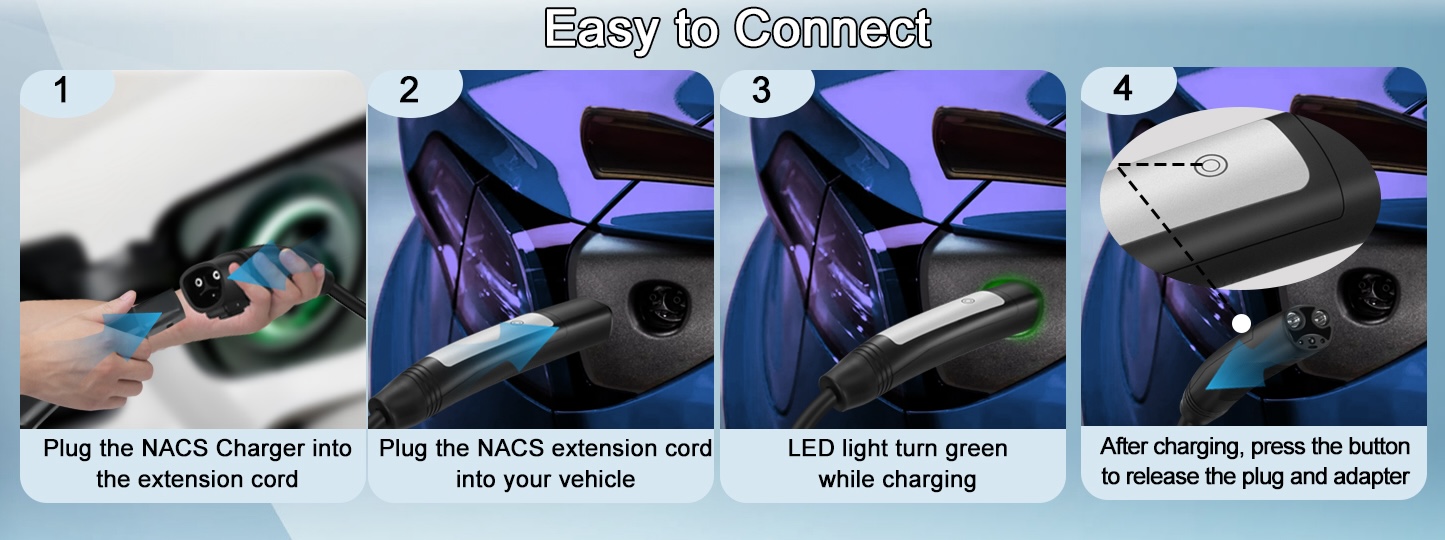

How to use the NACS extension cable
