NACS EV Charger 40A 9.6KW NACS Level 2 Charger

  • Rated Power: 9.6KW
  • Rated voltage: 240V AC
  • Rated Current:16-20-24-32-40A
  • IP protection class: IP 67 ( working condition)
  • Product description: This Portable NACS EV charger, with a NEMA14-50 power supply plug, working under 240V ac, Output current 16-20-24-32-40A switchable, with a nacs connector, compatible with all EVs with NACS charge inl
  • INQUIRY

NACS EV Charger 40A 9.6KW NACS Level 2 Charger



Specifications of Fiver's 240V 40A Current Adjustable 9.6KW Portable NACS Charger.

Operation Voltage
240V ac ± 15%
Rated Current
16-24-32-40A (Switchable)
Rated Power
9.6KW Max
Scheduled Charging 0-12H Adjustable
Leakage Protection
Type A (Type B Optional)
Power Supply Plug NEMA14-50
Connector Type NACS Charging Connector
Withstand Voltage
2000V AC
Shell Material
ABS + PC
Mechanical Life
No-Load Plug In  / Pull Out >10000 Times
Operating Temperature
-25°C ~ +55°C
Protection Degree
-40°C ~ +80°C
Standard
IEC 62752  ,  IEC 61851
Certification
UL Certified
Safety Features Over and under frequency protection
Over Current Protection
Leakage Current Protection (restart recover)
Over Temperature Protection
Overload protection (self-checking recover)
Ground and Short circuit protection
Over voltage and under-voltage protection
Lighting Protection

Features of Fiver's  16-20-24-32-40A Current Switchable Scheduled Charging NACS Level 2 Charger

1> Safe, Reliable and Longevity: This 9.6KW NACS EV Charger meet IEC62752 standard and is UL certified, Equipped with built-in safety features to protect your vehicle and the emergency charger from overheating or other potential hazards.its safe and reliable for the users. can withstand over 10000 mating cycles.

Fiver's 16-20-24-32-40A Current Switchable Scheduled Charging NACS Level 2 Charger

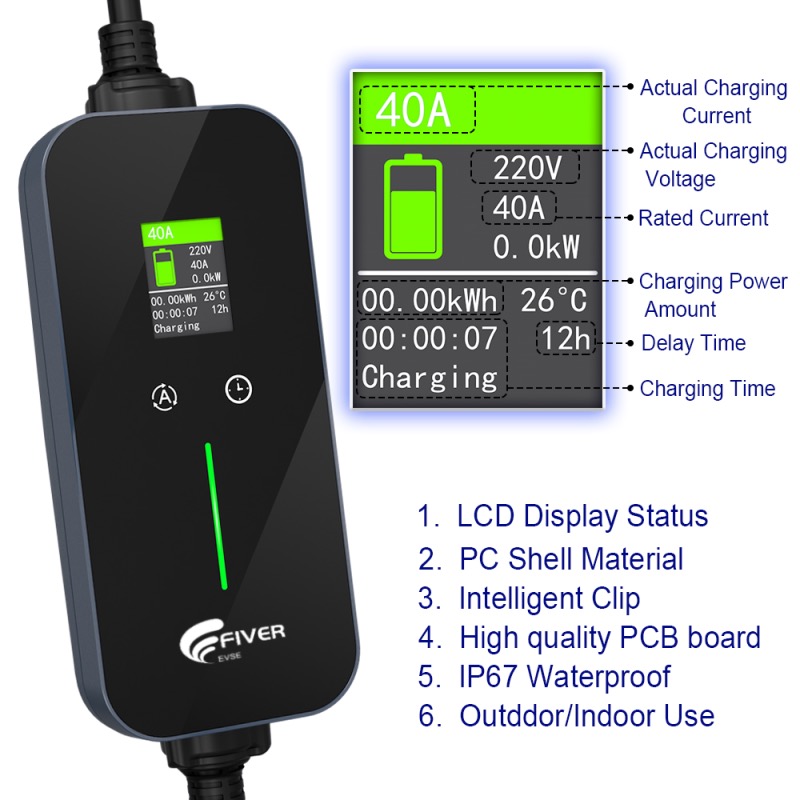

2> LCD Display, Charging Status Clear in a Glance: This 9.6KW NACS charger with a LCD display shows the charging datas in details, such as charing voltage, charging current, charged power, real-time temperature....

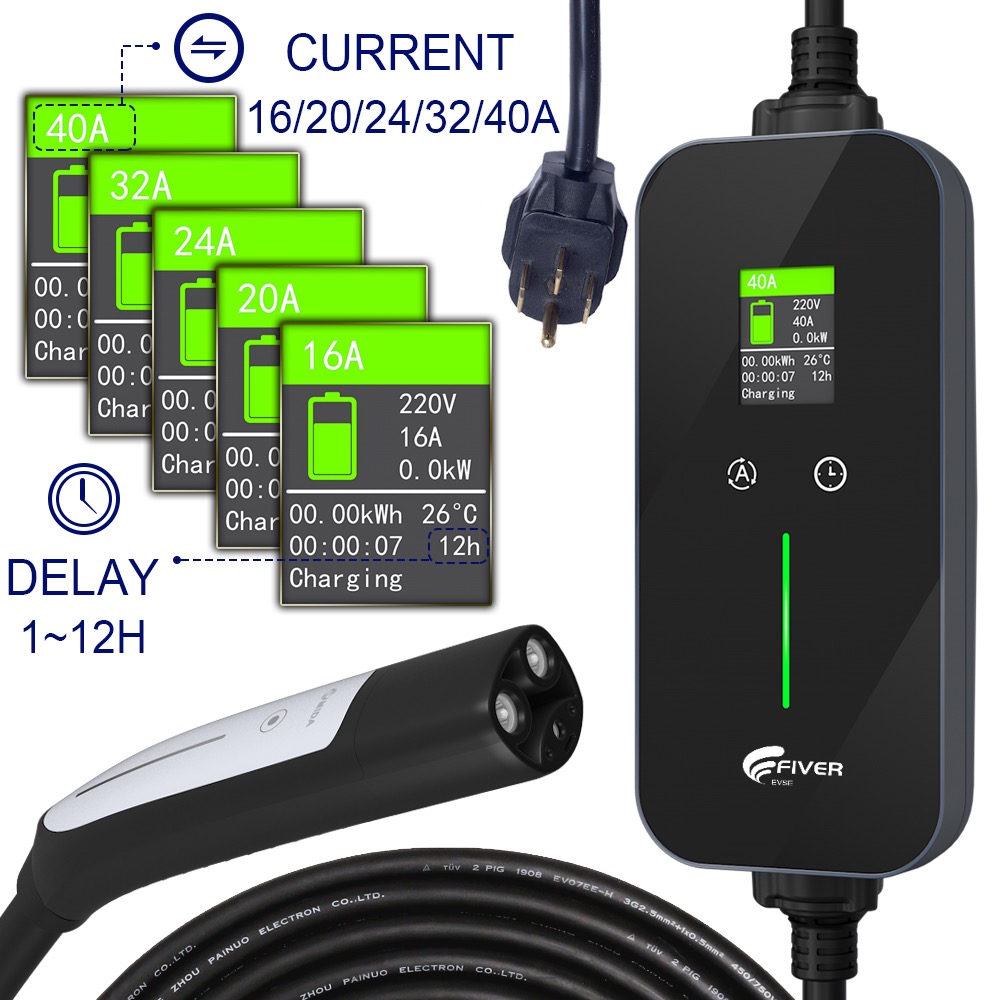

3> Fast Charging Capability: This NACS level 2 charger is with max current output 40amp, max power up to 9.6KW. it's 26% faster than original Tesla Mobile Connector. Can add up to 30miles/H to your range. what's more the charging current is switchable from 16-20-24-32-40A, suitable for different charging amperage needs.

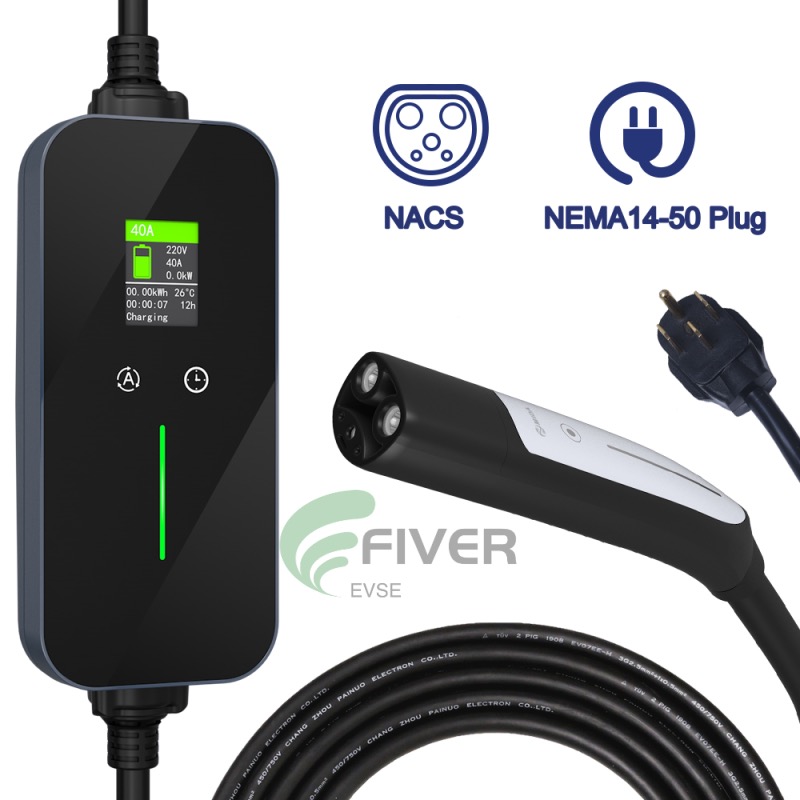

4> Universal Fit: This 40amp NACS charger is with a J3400 NACS charging connector, is compatible not only with Tesla Electric cars, also compatible for those electric vehicles with NACS charging Port booming in the market in North America.

5> Portability: The compact and lightweight design of the Portable EV Charger makes it easy to store in your truck making them ideal for travel or outdoor activities.

6> Built-in UHF Signal Emitter: Enables seamless communication between this NACS portable charger and your EV to open the NACS port lid automatically.


7> Scheduled Charging: You can set the charging starting time, enable the users to charge at valley hours, to save charging cost.


8> Full Link Temperature Monitoring System: Real-time monitor is equipped to detect the temperature of the car-end and the wall-end plugs. Once the temperature is detected above 80℃, the current will be cut off immediately. When the temperature returns below 50℃, charging will resume.


9> Automatically Intelligent Repair: The smart chip is equipped to automatically repair common charging errors. It can also restart the power to protect the device from stopping charge caused by voltage fluctuation.


10> Robust Con-structure IP67 Grade Protection: Rugged shell which could resist the rolling and crash of the car. IP67 ensure the perfect work outdoors in any environment including rain and snow.

11> OEM Service Welcomed: We offer OEM services for customers.
