250A Tesla Charging Connector Replacement 250KW NACS Plug for DC Fast Charging

250A Tesla Charging Connector Replacement 250KW NACS Plug for DC Fast Charging

Rated Power: 250KW
Rated voltage: 1000V DC
Rated Current: 250A
IP protection class: IP 67 ( working condition)
Product description: This 1000V DC 250A Tesla NACS Charging Cable replacement is made according to the standard SAE J3400. it's a combination for both AC and DC Charging, for AC charging it can provide up to 80 amps at 24
INQUIRY

1000V 250A Tesla Charging Plug Replacement 250KW NACS Charging Cable Manufacturer

1000V 250A NACS Charging Cable Technical Information

Product Definition
Charging Standard	NACS
Approvals & Certification	UL 2251
Dimensions Charging Connector
Width	56 mm
Height	84 mm
Depth	245.5 mm
Cable Length & End Treatment	Standard per Tesla Spec. or Customized
Ambient Conditions
Ambient Temperature (Operation)	-40°C to +50°C
Ambient Temperature (Storage / Transport)	-40°C to +105°C
Max. Altitude	3000 m (above sea level)
Operating Humidity	Up to 95% RH, Condensing
UV Resistance	F1 per UL746C
Degree of Protection (Unmated)	IP67
Electrical Properties
Number of Phases	DC
Rated Voltage for Power Contacts	500V / 1000V
Rated Current for Power Contacts	200A / 250A	350A
Maximum Charging Power	200 kW / 250 kW	350 kW
Number of Power Contacts	3 (DC+, DC-, PE)
Temperature Sensor Type	2* PT 1000
Temperature Sensor Threshold	90°C
Number of Signal Contacts	2 (CP, PP)
Note on the Connection Method	Crimp Termination (cannot be disconnected)
Resistor Coding (between PE and CS)	480 Ω (lever operated) 150 Ω (lever not operated)
UHF Transmitter (Optional)	Silicon Labs Si4010-C2-ATR
UHF Transmitter Frequency (Optional)	315 MHz
Mechanical Properties
Mating Cycles	> 10,000
Insertion Force	< 90 N
Withdrawal	< 90 N
Rated Drop Resistance	200 Drops
Replaced Component	DC +/– Terminal & Plug Head
Design
Housing / Handle Area Colour	Black
Mating Face / Locking Lever Colour	Black
Housing with Customer Logo	On Request

Cable Cable is UL-R (Set approval is required when using UL-R cable)
Cable Structure	200A / 250A	350A
Cable Structure	42AWG+112AWG+218 (S)+418AWG	4×1/0AWG+1×12AWG+1×18AWG（S)+5×18AWG
Cable Diameter	30 mm	36.5 mm
Cable Resistance at 20°C 1/0AWG	≤ 0.351 Ω/km
Cable Resistance at 20°C 3AWG	≤ 0.70 Ω/km
Cable Resistance at 20°C 6AWG	≤ 1.40 Ω/km
Cable Resistance at 20°C 18AWG	≤ 22.4 Ω/km
Cable Standard	UL 62
Type of Conductor	Per Above Construction
Outer Sheath Material	TPE
Outer Sheath Color	Black

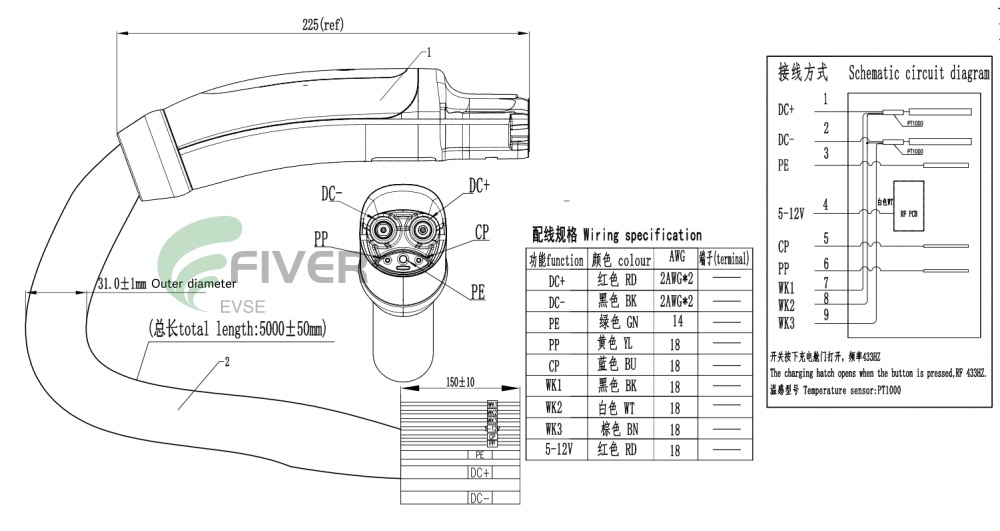

1000V DC 250A Tesla NACS Connector Pinout Diagram

The North American Charging Standard (NACS) connector has five pins:

DC+/L1 and DC+/L2: Two primary pins used for both AC charging and DC Fast Charging
Ground (G): A pin that eliminates excess charge by dumping it into the road surface
CP: Control pilot pin. charging status current signaling.
PP: Proximity pilot. vehicle connection status signaling

250A Tesla NACS Charging Cable Replacement Product Features:

1. Compact design Cheaper Cost

This 1000V 250A NACS Charging Connector is with compact design, it have several advantages over CCS and CHAdeMO charging connectors, its smaller in size, lighter in weight, and is a combination of AC and DC charging. This 250A NACS plug, t's a combination for both AC and DC Charging, for AC charging it can provide up to 80 amps at 240 volts 19.2KW capacity.which is suitable for residential and public level 2 charging stations. for DC charging it can provide up to 250 amps at up to 1000 volts, 250KW charging capacity. suitable for Tesla supercharging network all-over North America.

2.Safe and Reliable in Use

Our 1000V 250A Tesla NACS Charging Cable replacement is UL certified and comply with charging standard SAE J3400. with all-round safety protections. it manufactured with built-in temperature sensor and a back up temperature switch for over-temperature protection.

3. Support level 3 High Power Fast Charing.

This 1000V 250A NACS Charging Cord support 1000V 250A level 3 DC Fast Charging. charging capacity up to 250KW.

4. Ultra-sonic welding technology

This 250A NACS EV Plug uses ultrasonic welding technology, which makes it highly reliable with a resistance close to zero. With its output current capability of up to 250A and natural heat dissipation, it allows electric vehicle owners to achieve faster and safer charging.

5. Durable and Long Life span

This 250A Tesla NACS Charging Cable can withstand more than 10000 times of mating. it can also withstand the impact from high fall.

6. OEM & ODM Service Welcomed.

We offer not only logo customization we also offer customization for the entire function and appearance.
