EV Charging Plugs

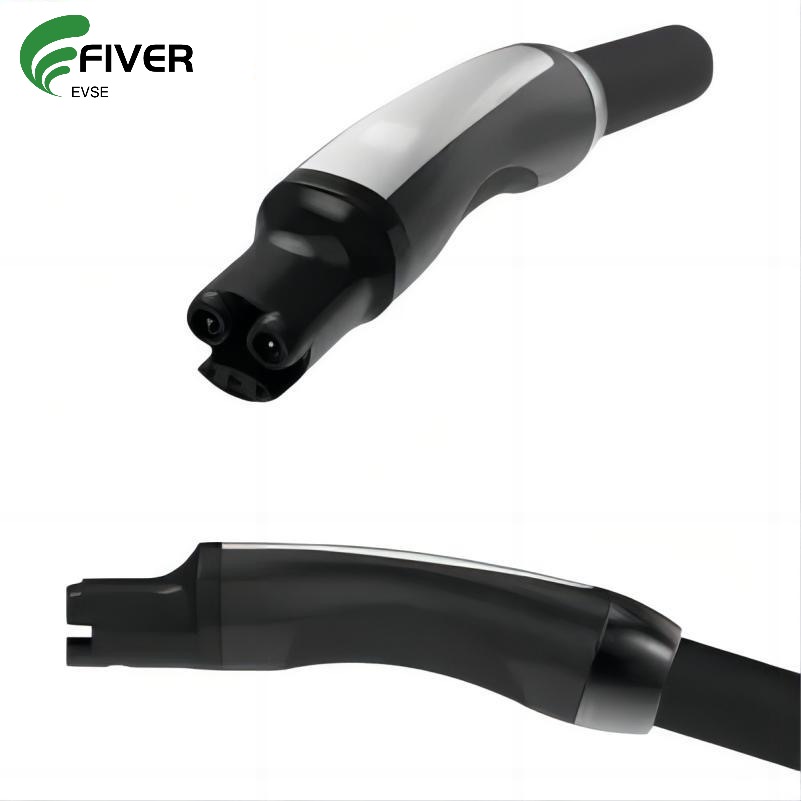

110V/240V 16A 32A 48A 80A NACS Tesla AC Charging Cable

110V/240V 16A 32A 48A 80A NACS Tesla AC Charging Cable

Rated current: 16A/32A/48A/80A
Rated voltage: 110V/240V AC
Connector Type: Tesla/NACS
IP Protection Class: IP 67 ( working condition)
Product description: our newly designed NACS AC charging cables, meticulously crafted to cater to all your charging requirements. Regardless of your needs for16A,32A,48A, or80A options, our cables
INQUIRY

Factory Supply Tesla NACS Charging Cable 110V/240V 16A 32A 48A 80A Optional

Product Parameters:

Product	Tesla AC Plug with Cable
Product Model	FV-TSA-16A , FV-TSA-32A , FV-TSA-48A, FV-TSA-80A	Terminal Rise	＜50K
Rated Current	16A/32A /48A/80A	Operating Temperature	-30°C~+50°C
Operation Voltage	AC 120V / AC 240V	Impact Insertion Force	>300N
Insulation Resistance	＞1000MΩ（DC 500V）	Waterproof Degree	IP55
Withstand Voltage	2000V	Cable Color	Black ,Orange, Green, Blue etc.
Pin Material	Copper Alloy, Silver Plating	Cable Length	(5Meter ,10Meter) The length of the cable can be customized
Shell Material	Thermoplastic,Flame Retardant Grade UL94 V-0	Cable Protection	Reliability of materials, anti-flaming, pressure-resistant, abrasion resistance
Mechanical Life	No-Load Plug In / Pull Out ＞10000 Times		impact resistance
Contact Resistance	0.5mΩ Max	Certification	UL,TUV,CE Approved

Cable Specifications:

Rated Current	Cable Specifications
16A	3 X 14AWG + 1 X 18AWG
32A	3 X 10AWG + 1 X 18AWG
48A	2 X 8AWG + 1 X 10AWG + 2 X 16AWG
80A	2 X 5AWG + 1 X 8AWG + 6 X 20AWG

NACS Tesla AC Connector Drawing:

NACS AC Plug Drawings

Why US?

Our NACS AC charging cords come with a variety of features to meet your specific charging requirements. With current ratings ranging from 16A to 80A, you have the flexibility to choose the right option for your vehicle. 110-240V AC /500V DC rated voltage, compatible with a variety of charging stations, charging is convenient and reliable. Additionally, the cable length is customizable and you have the option to personalize the cable with your logo, making it a uniquely branded charging solution for your electric vehicle.

In addition to customizable options, our NACS AC charging cables are designed to provide high-performance charging capabilities. This cable is designed to withstand the rigors of daily charging, providing a durable, reliable solution for your electric vehicle charging needs. Whether you're at home, in the office, or on the road, our NACS AC charging cables provide a convenient and efficient way to charge your electric vehicle, so you're ready to go.

We know that charging your electric vehicle is an important part of your daily life, and our NACS AC charging cables are designed to make the process as seamless as possible. With their customizable options and versatile compatibility with Telsa AC charging plugs and North American AC connectors, our cables provide a simple, worry-free solution for charging your electric vehicle. Whether you are a residential user or a commercial entity, our NACS AC charging cables are ideal for all your electric vehicle charging needs.

In summary, our NACS AC charging cable is a customizable, versatile charging solution that delivers high performance, durability, and convenience. Our cables are available in a range of current ratings, customizable cable lengths and personalization options with your logo, providing a tailor-made charging solution for your electric vehicle. Whether you need reliable charging cables for your personal vehicle or are looking for a branded charging solution for your business, our NACS AC charging cables are the perfect choice for all your electric vehicle charging needs.
