Air Cooled 1000V 375A CCS Type 2 Charging Cable

Product Specifications for 375KW DC Charging Cable CCS2

Product Features for Fiver's Natural Cooling 375A Electric Vehicle Charging Cables.

1> High Power Capacity: This 375KW CCS2 Charging Cable is designed for high-speed charging, Capable of handling 1000V DC and 375A continuously charge, at boost model it can support 400A charging. Our extensive lab tests with multiple samples showed that even when pushed to 400A peak for 60 minutes, terminal temperatures stayed below 50K—well within safe operating ranges, with no overheating issues detected.

2> Robust Construction: Our electric vehicle charging cables are built with durable materials and reinforced construction, this cable is designed to withstand harsh conditions and heavy usage with a lifespan over 10000 mating cycles.

3> Air-Cooled Design: This CCS type 2 charging cable adopt "2+ 2" DC cables structure, reduces the current density per conductor by 50% through dual-conductor parallel design, combined with a 40% increase in surface area and optimized airflow paths to significantly enhance natural convection cooling efficiency. This configuration achieves a 36% temperature rise reduction compared to traditional single-conductor designs (from 55K to 35K). The staggered conductor arrangement creates micro-air channels that utilize the stack effect to accelerate hot air exhaust, while high-thermal-conductivity insulation materials (0.8W/(m·K)) enable lightweight and cost-effective solutions, reducing weight by 30%-40% and costs by 20% compared to liquid-cooled cables. Efficient air cooling technology ensures optimal temperature management, extending the cable's lifespan.

4> IP55 Protection: The IP55 rating of our CCS2 dc charging cable guarantees protection against dust and water ingress, ensuring reliable performance in various environments.

5> Ultrasonic Welding: Precise ultrasonic welding techniques create strong, reliable connections between the cable and connectors.
6> Glue-Filled Connector: The CCS2 connector is filled with a special glue to prevent moisture ingress, improved electrical insulation performance; enhanced heat dissipation and ensure long-lasting performance.
7> CCS2 Compatibility: Our car charge cable for CCS2 charger compatible with CCS2 charging standards IEC 62196-2, making it suitable for a wide range of electric vehicles.

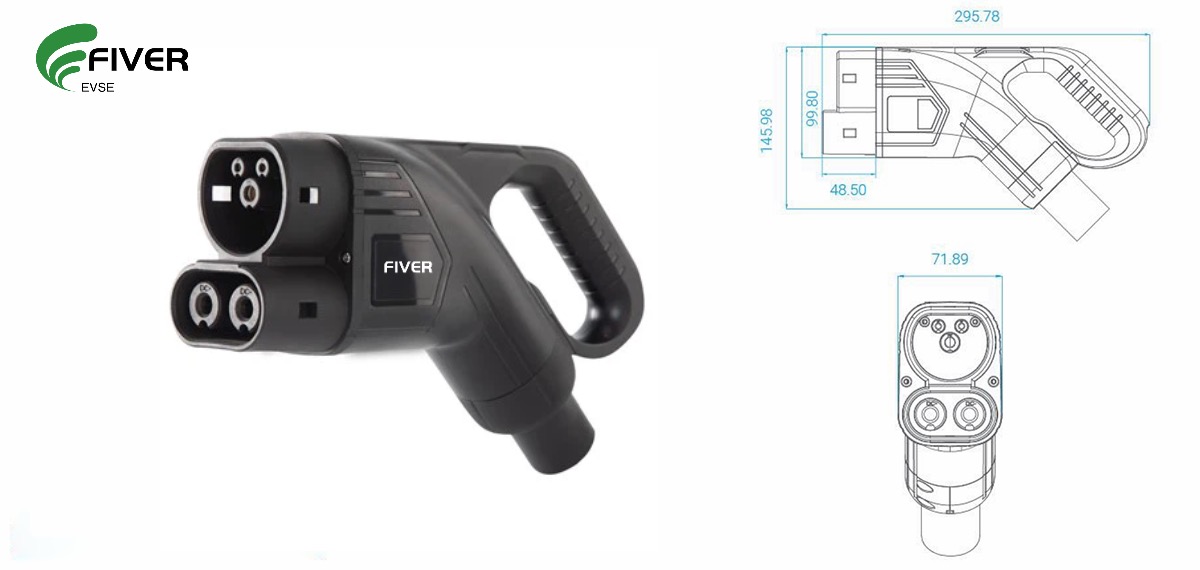

Drawings and Wiring Diagram for Our 1000V DC 375A CCS2 Charging Cables

Learn More About How Fiver Ensure Heat Dissipation and Safety in Our CCS Charging Cables
