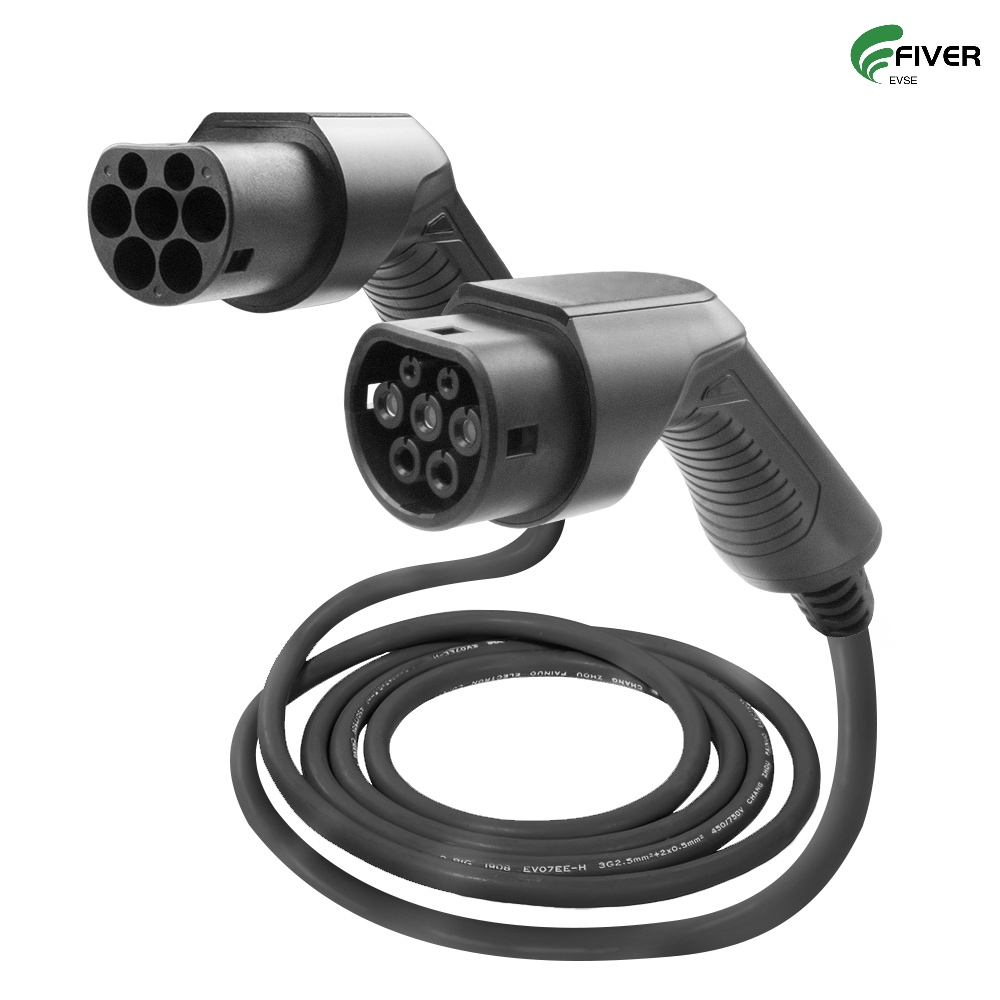

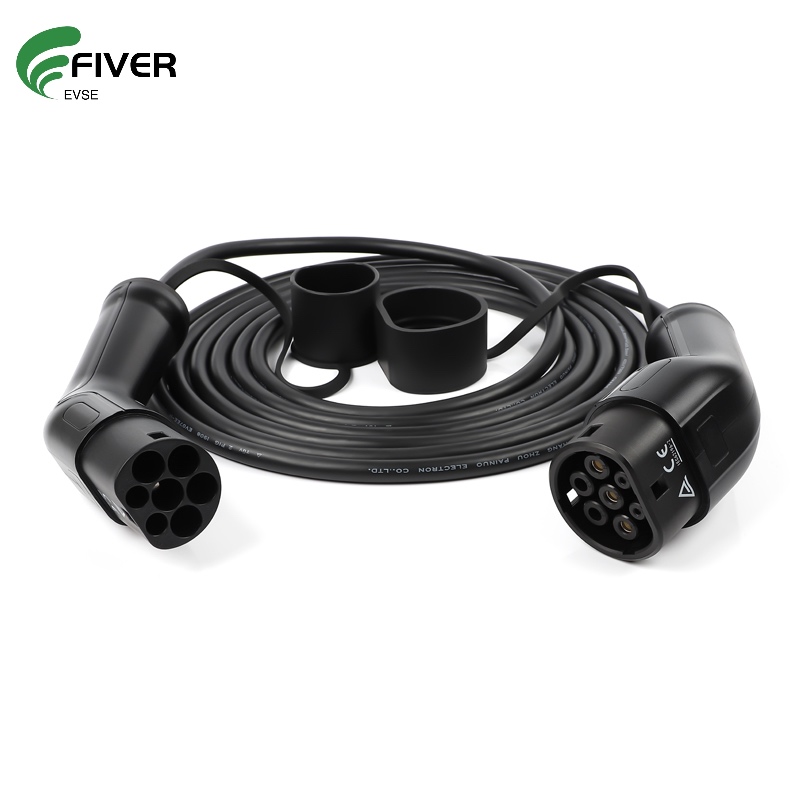

1 Phase 16A Type 2 to Type 2 EV Charging Cable

  • Rated current: 16A
  • Rated voltage: 250V AC-480V AC
  • Operation Temp.:-30℃ ~ + 50℃
  • IP protection class: IP 55 ( working condition)
  • Product description: The type2 to type2 EV charging cable is meet the IEC 62196standard and TUV CE certificated. You can use this mode3 EV charging cable charging in home or public mode3 socket type EV charging station.
  • INQUIRY

Key Features:

Plug type: IEC 62196 Type2
Power supply plug: IEC 62196 Type2
Input power: 1 phase, 16A
Output power: 3.6KW/7.2KW
Operational voltage:110V- 250 VAC
Operational temperature: -30 °C to +50 °C

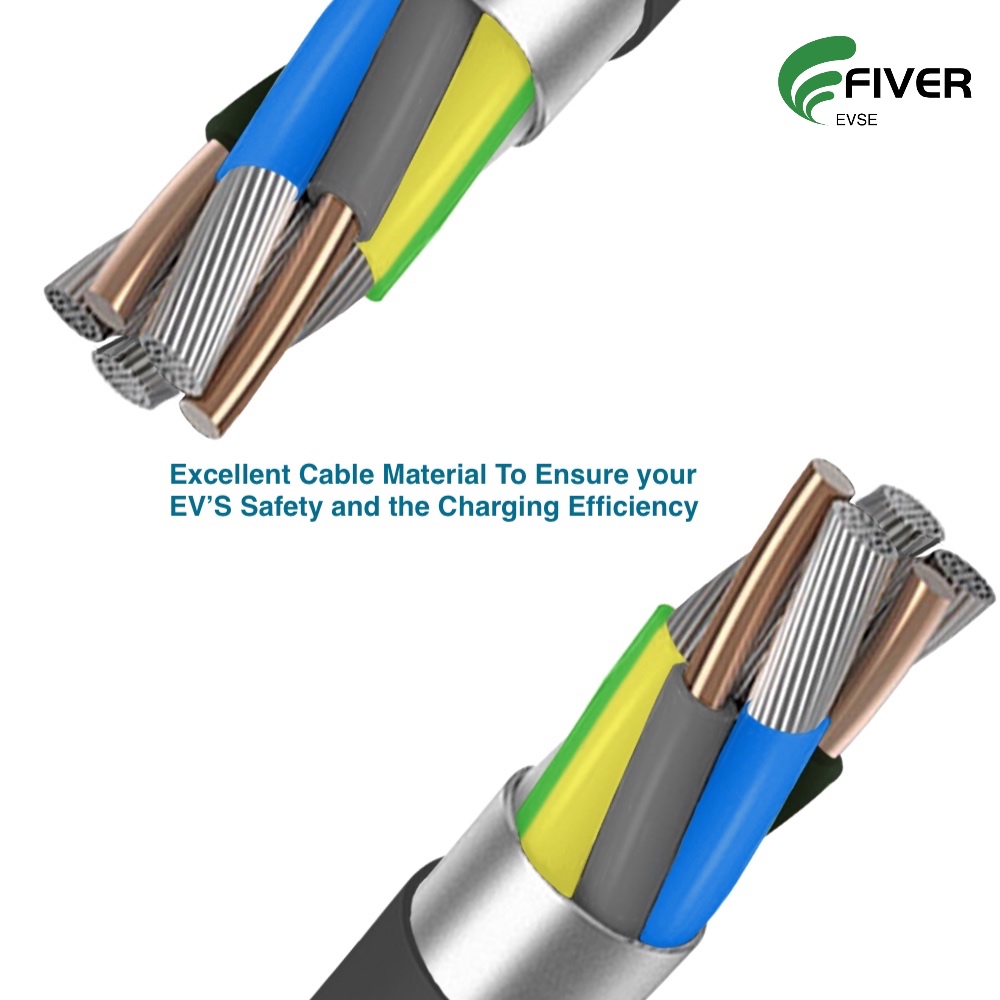

Cable SPEC: 5X2.5mm²+2×0.5mm²
Case Material: Copper, Thermoplastic material

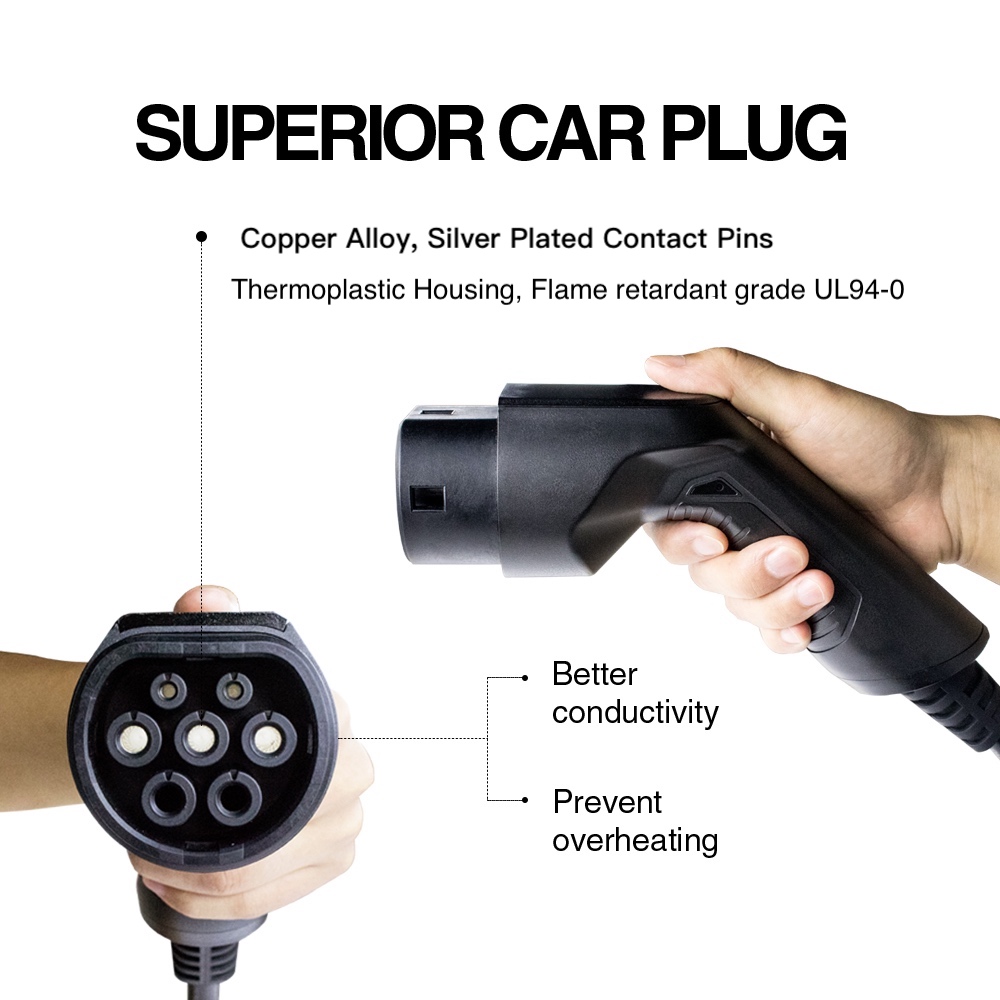

Pin Material: Copper Alloy, Silver+ Thermoplastic On the Top
Mechanical life: No load plug in/out > 10000 times
IP Grade: IP55
Flame Retardant Grade: UL94V-0
Contact impedance: 0.5m Ω Max
Insulation resistance: > 1000M Ω
Terminal temperature rise: <50K
UV resistant: Yes
Certificates: CE, TUV
Cable length 5 m (Can Be Customized)
Weight 1.7 kg
Warranty 12 months
