Mode 3 Charging Cables

  • 1 Phase Mode 3 32A Type 2 to Type 2 EV AC Charging Cable
  • 1 Phase Mode 3 32A Type 2 to Type 2 EV AC Charging Cable
  • 1 Phase Mode 3 32A Type 2 to Type 2 EV AC Charging Cable
  • 1 Phase Mode 3 32A Type 2 to Type 2 EV AC Charging Cable
  • 1 Phase Mode 3 32A Type 2 to Type 2 EV AC Charging Cable
1 Phase Mode 3 32A Type 2 to Type 2 EV AC Charging Cable1 Phase Mode 3 32A Type 2 to Type 2 EV AC Charging Cable1 Phase Mode 3 32A Type 2 to Type 2 EV AC Charging Cable1 Phase Mode 3 32A Type 2 to Type 2 EV AC Charging Cable1 Phase Mode 3 32A Type 2 to Type 2 EV AC Charging Cable

1 Phase Mode 3 32A Type 2 to Type 2 EV AC Charging Cable

  • Rated current: 32A
  • Rated voltage: 250V AC
  • Operation Temp.:-30℃ ~ + 50℃
  • IP protection class: IP 55 ( working condition)

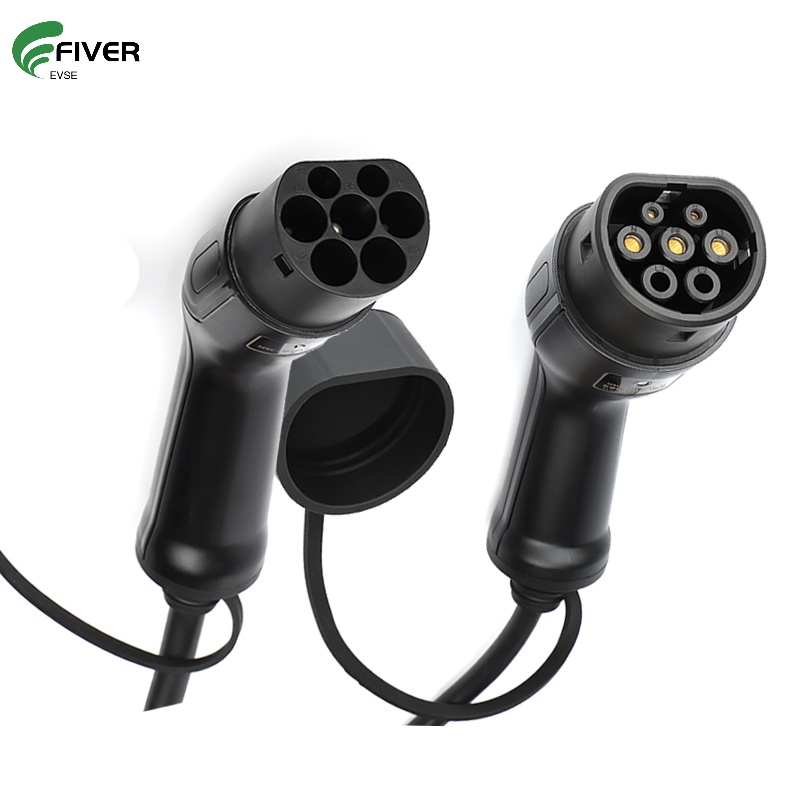

  • Product description: The type 2 to type 2 EV charging cable is meet the IEC 62196standard and TUV CE certificated. You can use this mode3 EV charging cable charging in home or public mode 3 socket type EV charging station
  • INQUIRY

Key Features:
Plug type: IEC 62196 Type2

Power supply plug: IEC 62196 Type2
Input power: 1 phase, 32A
Output power: 7.2 kW
Operational voltage:110V- 250 VAC
Operational temperature: -30 °C to +50 °C
Cable SPEC: 3X6mm²+2×0.5mm²
Case Material: Copper, Thermoplastic material

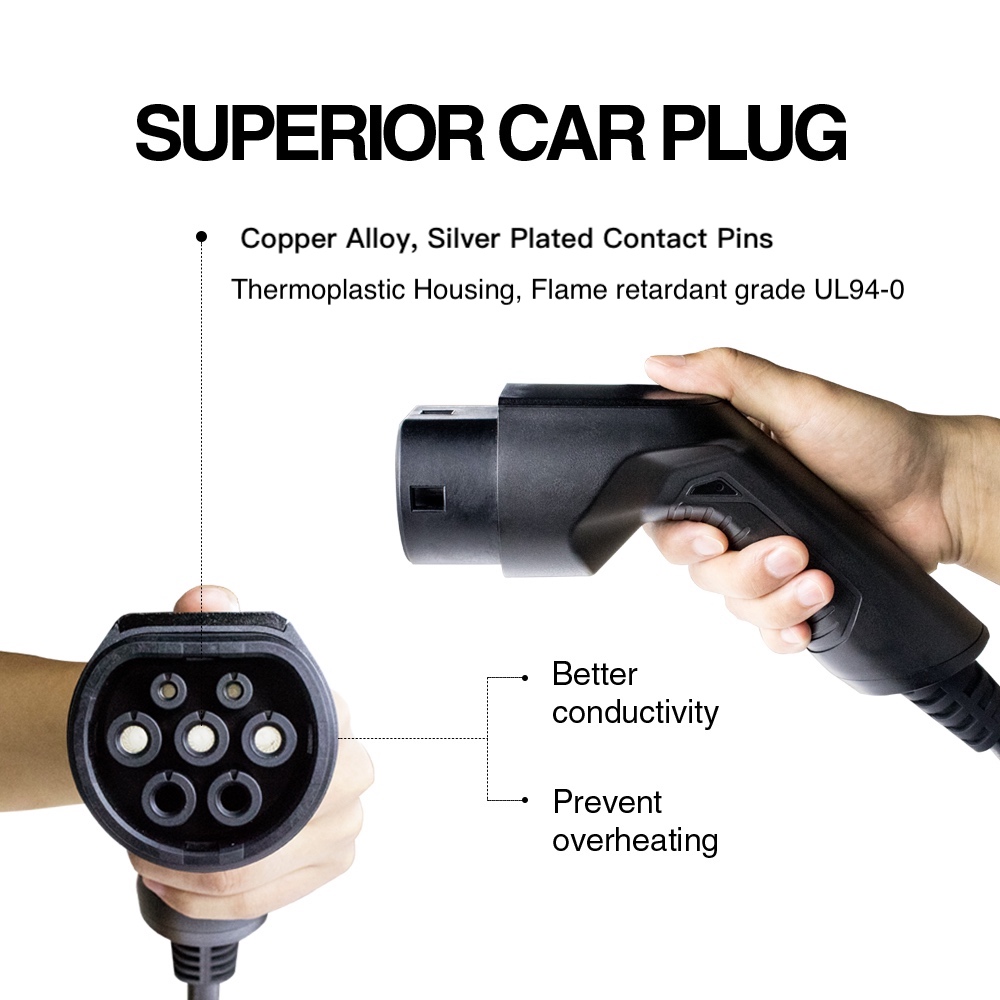

Pin Material: Copper Alloy, Silver+ Thermoplastic On the Top
Mechanical life: No load plug in/out > 10000 times
IP Grade: IP55
Flame Retardant Grade: UL94V-0
Contact impedance: 0.5m Ω Max
Insulation resistance: > 1000M Ω
Terminal temperature rise: <50K
UV resistant: Yes
Certificates: CE, TUV
Cable length 5 m (Can Be Customized)
Weight 1.7 kg
Warranty 12 months
