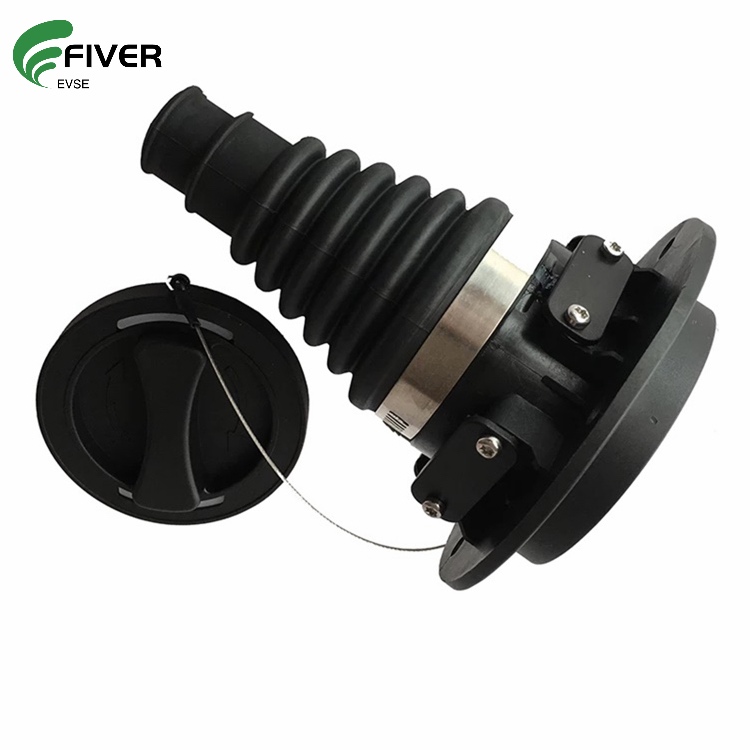

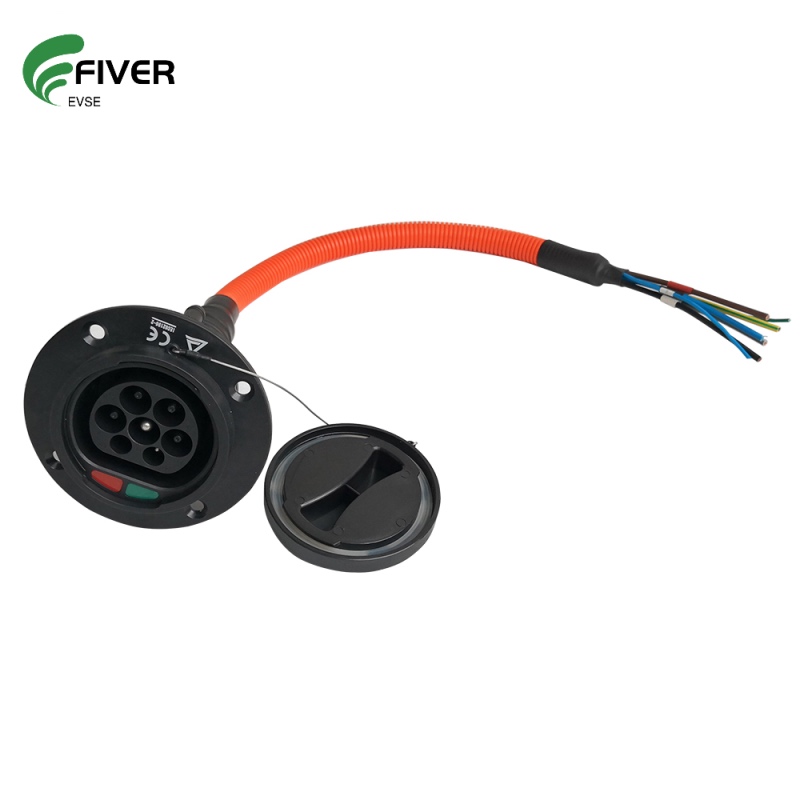

32A Type 2 AC Charging Inlet Socket

  • Rated current: 32A
  • Rated voltage: 250V AC/415V AC
  • Operation Temp.:-30℃ ~ + 50℃
  • IP protection class: IP 44 ( working condition)
  • Product description: This Type 2 AC Charging Socket Vehicle Side, also Know as AC Charging Inlet Socket, can be installed on the Type 2 Electric Vehicle.
  • INQUIRY

32A Electric Vehicle Charging Socket,  EV Type 2 IEC62196-2 Connector,AC Charging Inlet Socket

Features:

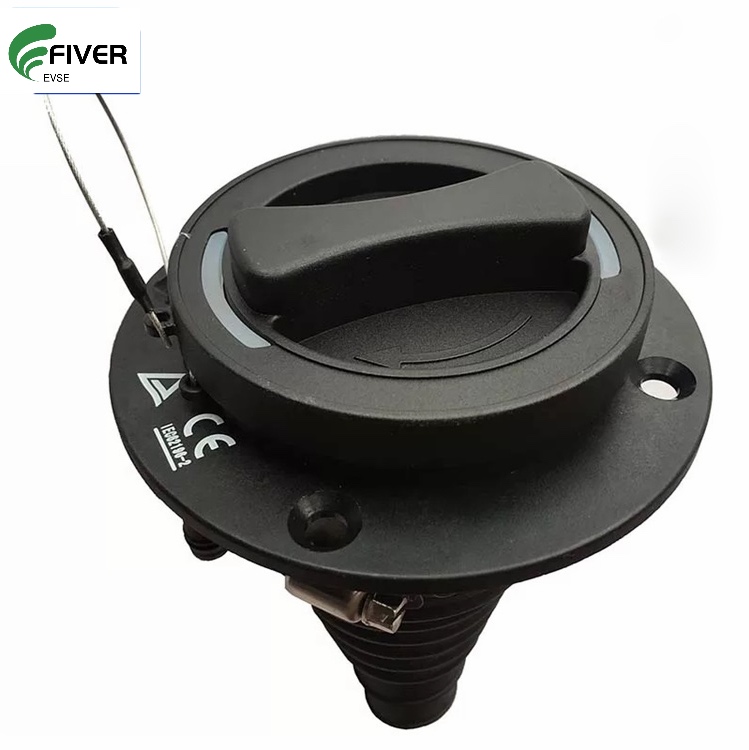

1. This Type 2 AC Charging Socket is with protection cover, safe for front install.

2. This Type 2 AC charging inlet socket is CE, TUV and RHOS Certificated, is safe and reliable.


Product Specifications:

Electric Performance

Rated current

32A

Rated voltage

250V AC, Single Phase or 415V AC, Three Phase for option

(please note the voltage you need when inquiry)

Standard
IEC 62196 Standard Type2 Socket

Insulation resistance

>1000MΩ (DC500V)

Terminal temperature rise.

<50K

Withstand Voltage

2000V

Mechanical life

no-load plug in / plug out > 10000 times

Materia

Thermoplastic, Flame retardant grade UL94-0;

Pin: Cooper alloy, sliver + thermoplastic on the top

Operation Temp.

-30℃ ~ + 50℃

IP protection class

IP 44

Suggested Cable Specifications: 16A / 32Amp 3x6mm2+2x0.5mm2 EV Charging Cable
