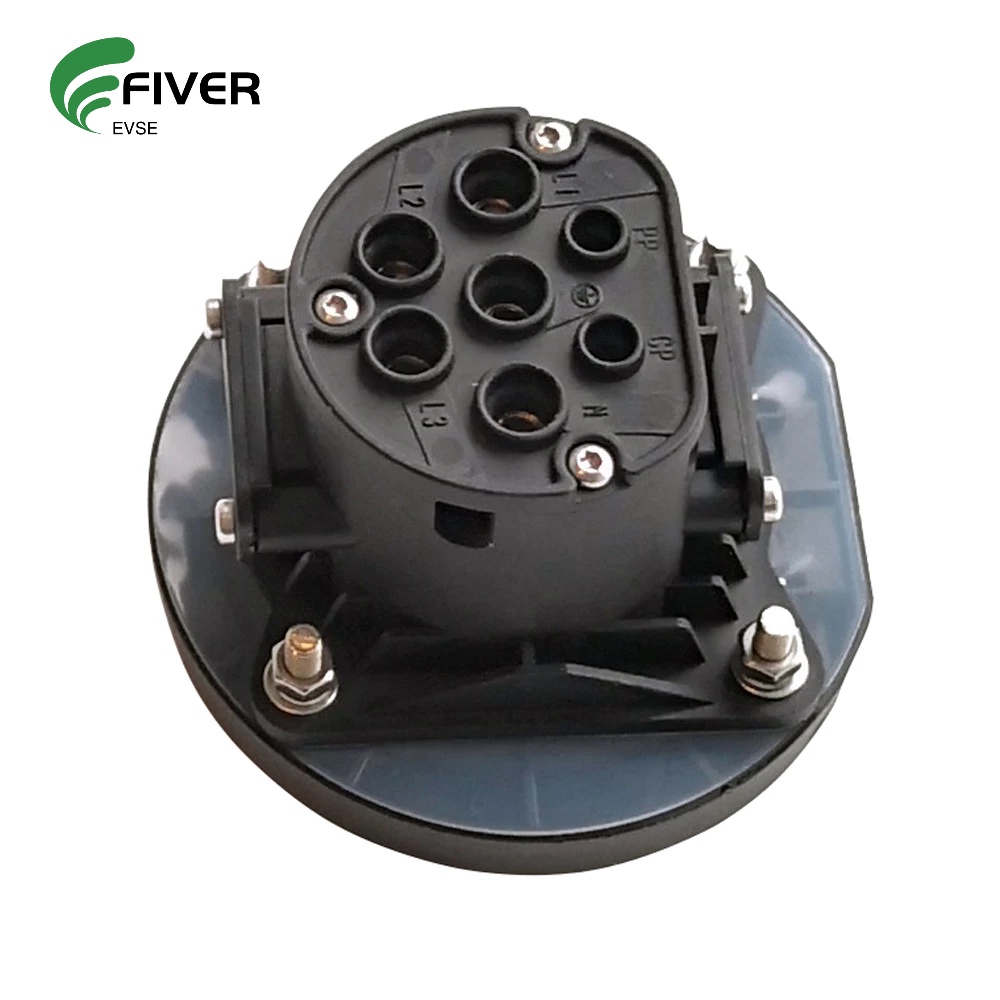

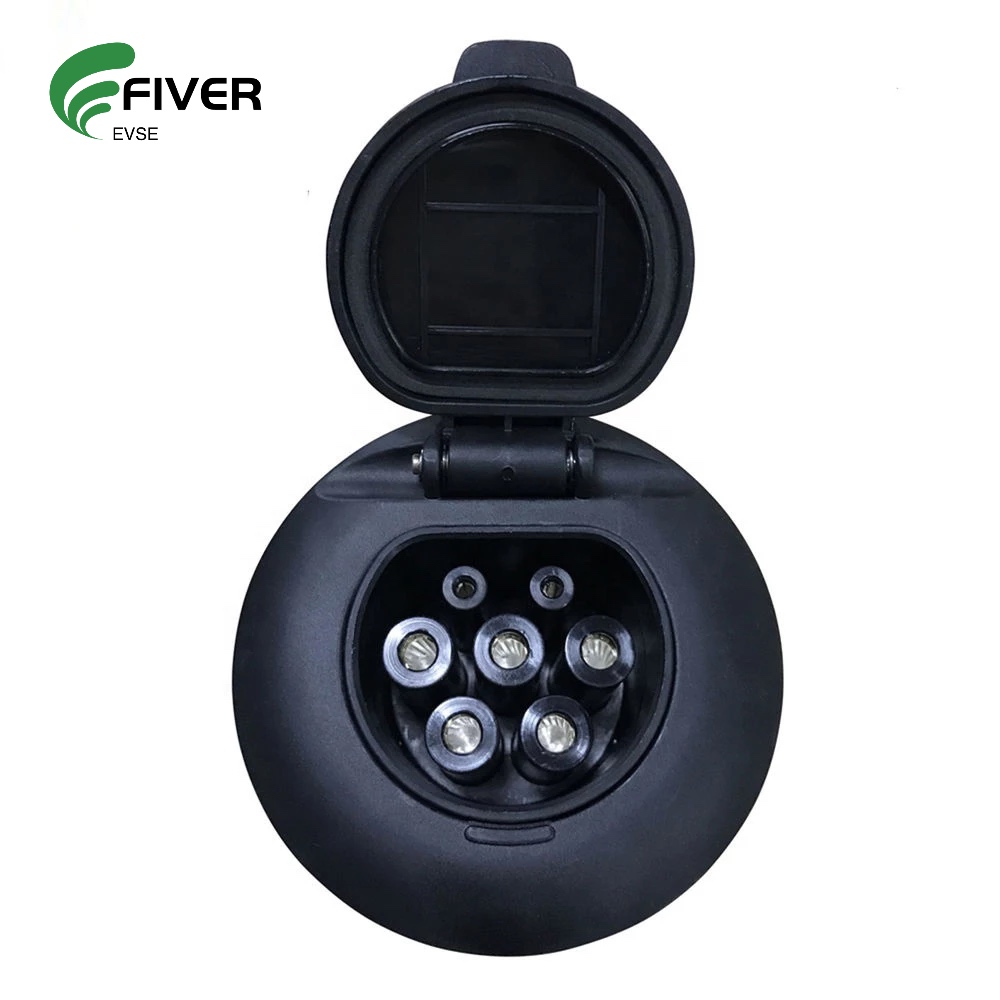

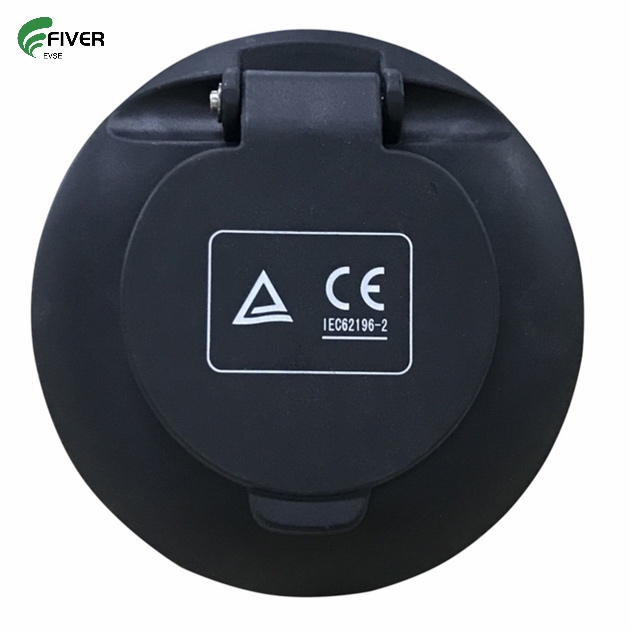

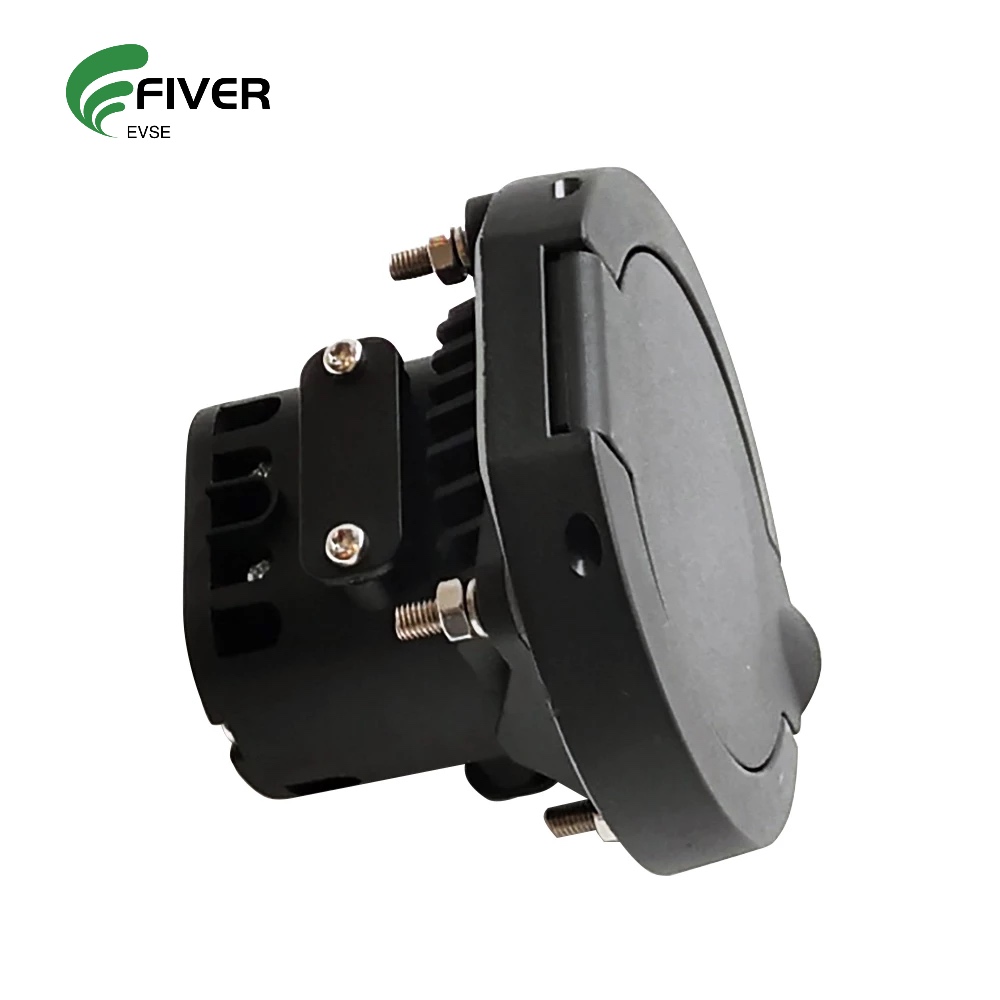

16A Type 2 Female EV Charging Connector Socket
- Rated current: 16A
- Rated voltage: 250V AC/415V AC
- Operation Temp.:-30℃ ~ + 50℃
- IP protection class: IP 44 ( working condition)
- Product description: This IEC62196 Type 2 AC EV Female Socket is used at the type 2 AC charging station, as a electric outlet for model 3 charging cable to charge the electric cars.
16A Type 2 Female EV Charging Connector Socket
Features
1.Conform to the provisions and requirements of IEC 62196-2 2016 2-IIb, IEC 62196-2 2016
2.Excellent protection performance, protection grade achieved IP65 (working condition).
|
Electric Performance |
|
|
Rated current |
16A |
|
Rated voltage |
250V AC, Single Phase or 415V AC, Three Phase for option (please note the voltage you need when inquiry) |
|
Standard |
IEC 62196 Standard Type2 Socket |
|
Insulation resistance |
>1000MΩ (DC500V) |
|
Terminal temperature rise. |
<50K |
|
Withstand Voltage |
2000V |
|
Mechanical life |
no-load plug in / plug out > 10000 times |
|
Materia |
Thermoplastic, Flame retardant grade UL94-0; Pin: Cooper alloy, sliver + thermoplastic on the top |
|
Mechanical Life |
No load plug in / out more than 10000 times |
|
Operation Temp. |
-30℃ ~ + 50℃ |
|
IP protection class |
IP 44 |
