EV Charging Sockets

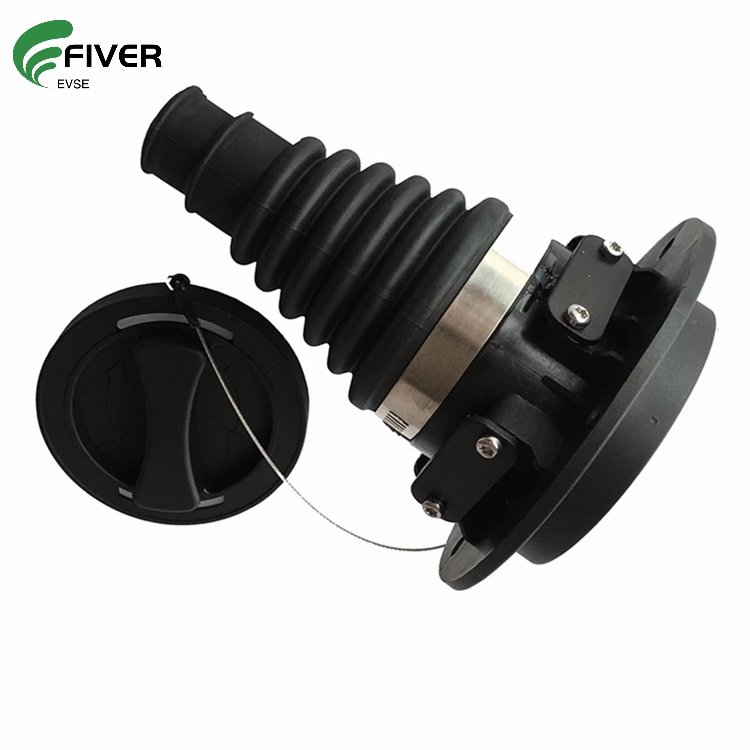

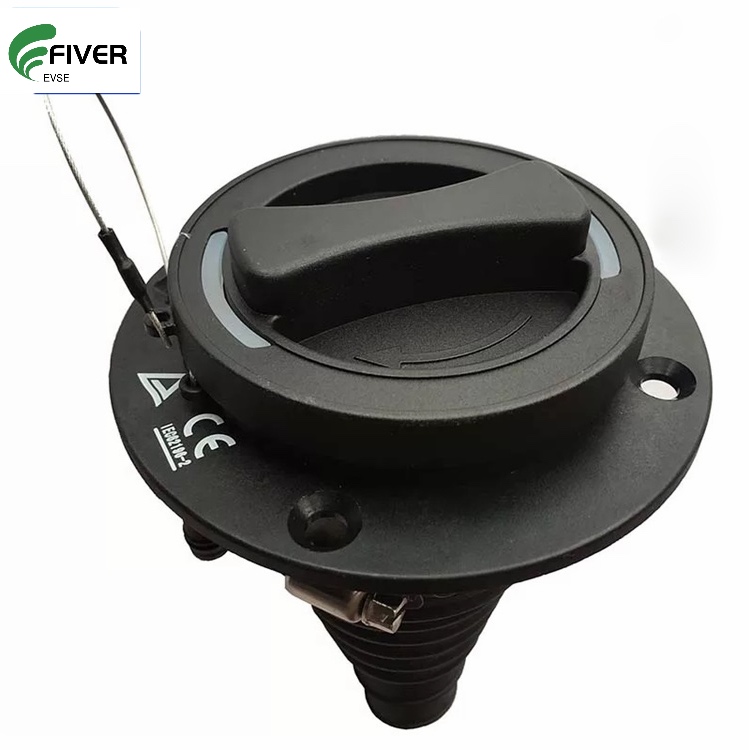

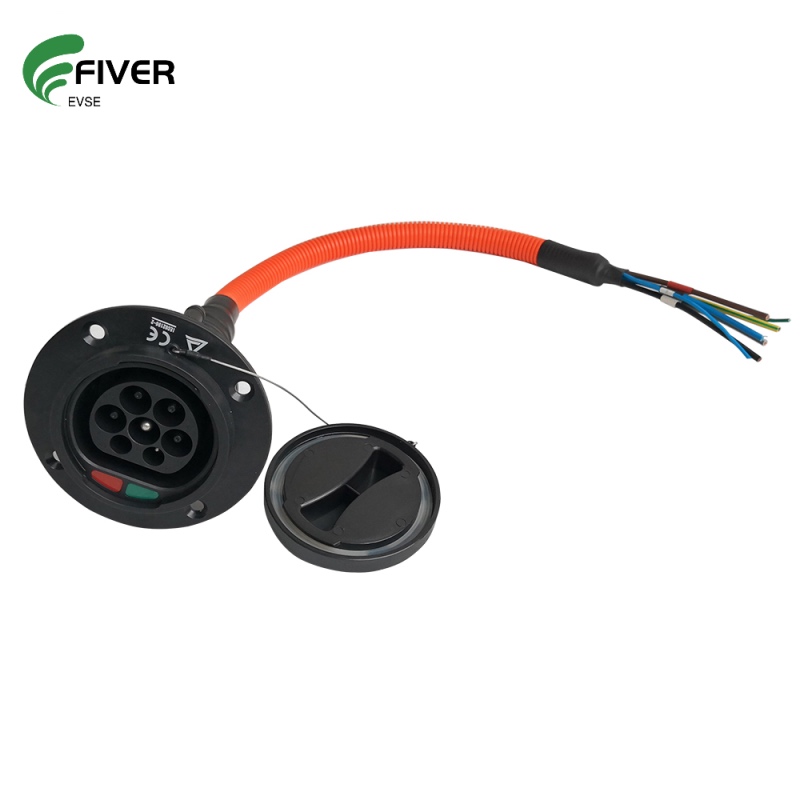

16A Type 2 AC Charging Socket Vehicle Side

Rated current: 16A
Rated voltage: 250V AC/415V AC
Operation Temp.:-30℃ ~ + 50℃
IP protection class: IP 44 ( working condition)
Product description: This Type 2 AC Charging Socket Vehicle Side, also Know as AC Charging Inlet Socket, can be installed on the Type 2 Electric Vehicle.
INQUIRY

16A Electric Vehicle Charging Socket, EV Type 2 IEC62196-2 Connector,AC Charging Inlet Socket

Features:

1. This Type 2 AC Charging Socket is with protection cover, safe for front install.

2. This Type 2 AC charging inlet socket is CE, TUV and RHOS Certificated, is safe and reliable.

Product Specifications:

Electric Performance
Rated current	16A
Rated voltage	250V AC, Single Phase or 415V AC, Three Phase for option (please note the voltage you need when inquiry)
Standard	IEC 62196 Standard Type2 Socket
Insulation resistance	>1000MΩ (DC500V)
Terminal temperature rise.	<50K
Withstand Voltage	2000V
Mechanical life	no-load plug in / plug out > 10000 times
Materia	Thermoplastic, Flame retardant grade UL94-0; Pin: Cooper alloy, sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP 44
