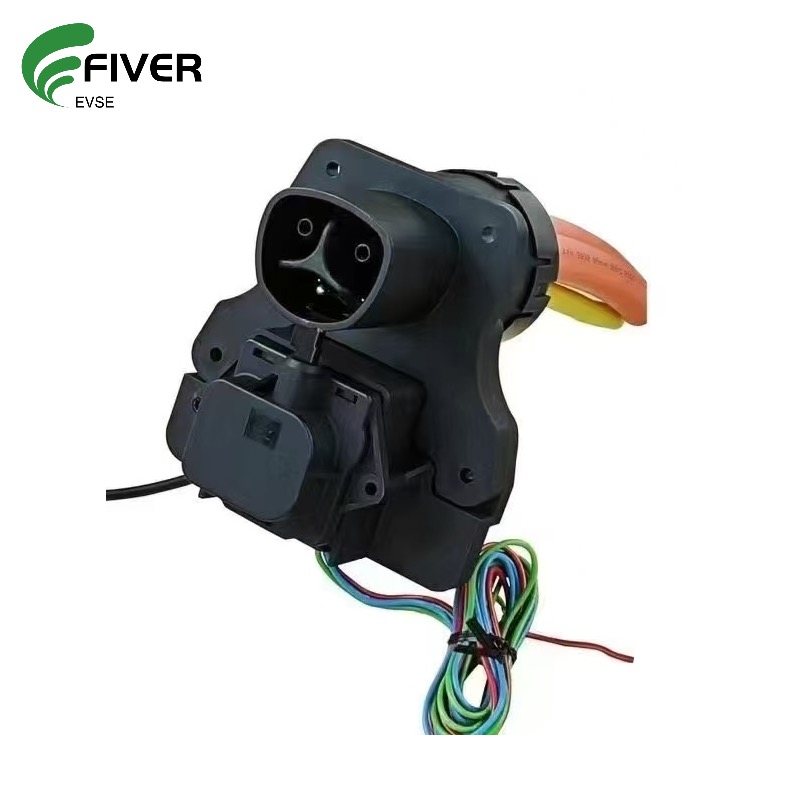

Modular 1000V DC J3400 NACS Port with Actuator Custom Harness Solution

Modular 1000V DC J3400 NACS Port with Actuator Custom Harness Solution

Rated Power: 350KW
Rated voltage: 1000V DC
Rated Current: 350A
IP protection class: IP 67 ( working condition)
Product description: Discover FIVER New Energy’s J3400-compliant NACS charging port with intelligent actuator technology, dual NTC sensors, and military-grade durability. Engineered for 800V+ architectures and global EV i
INQUIRY

FIVER J3400 Modular NACS Port: 1000V DC Actuator Locking, Dual NTC Sensors & Custom Harness Solutions

Fiver's 1000V DC J3400 Compliant Modular NACS Port with Actuator, Custom harness solutions

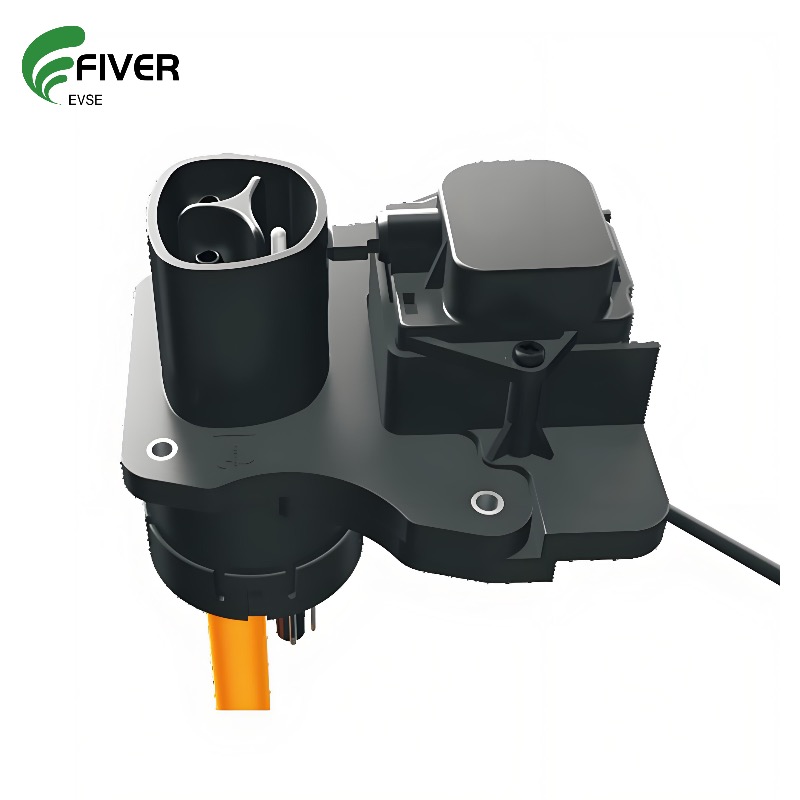

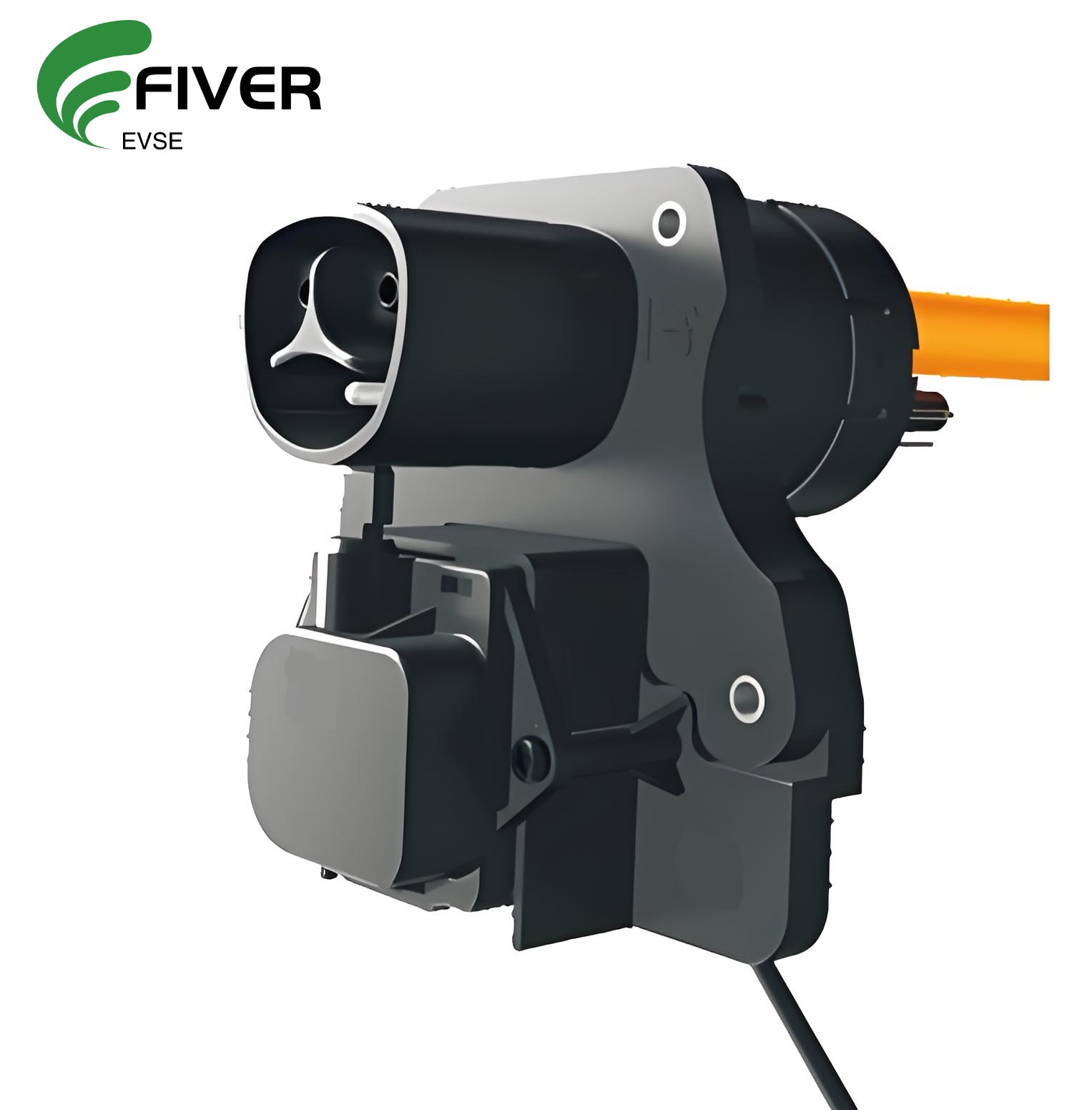

Introducing the Next-Generation NACS Charging Interface

FIVER New Energy, a pioneer in high-voltage EV connector solutions, unveils its J3400 NACS Port with Actuator—a breakthrough in modular, intelligent charging technology. Designed for OEMs and car makers, this innovation combines 1000V DC capability, military-grade robustness, and smart thermal management to redefine reliability in ultra-fast charging.

Product Specifications for Fiver's 1000V NACS Port

Rated Current	AC: 16/32A; AC/DC:48-80A; DC: 80-125-150-200-250-300-350A
Rated Voltage	250A AC/ 1000V DC
Signal Current	2A
Contact Resistance	0.5 mΩ Max
Withstand Voltage	3000V
Flammability Rating	UL94V-0
Mechanical Lifespan	＞10000 Mating Cycles
Casing Protection Rating	IP67
Casing Material	Thermoplastic UL94V-0
Contact Material	Copper alloy, silver plated
Terminal Temperature Rise	＜50K
Insertion & Withdrawal Force	＜100N
Certification	UL
Warranty	24 months/10000 Mating Cycles
Operating Environment Temperature	-40℃- +50℃

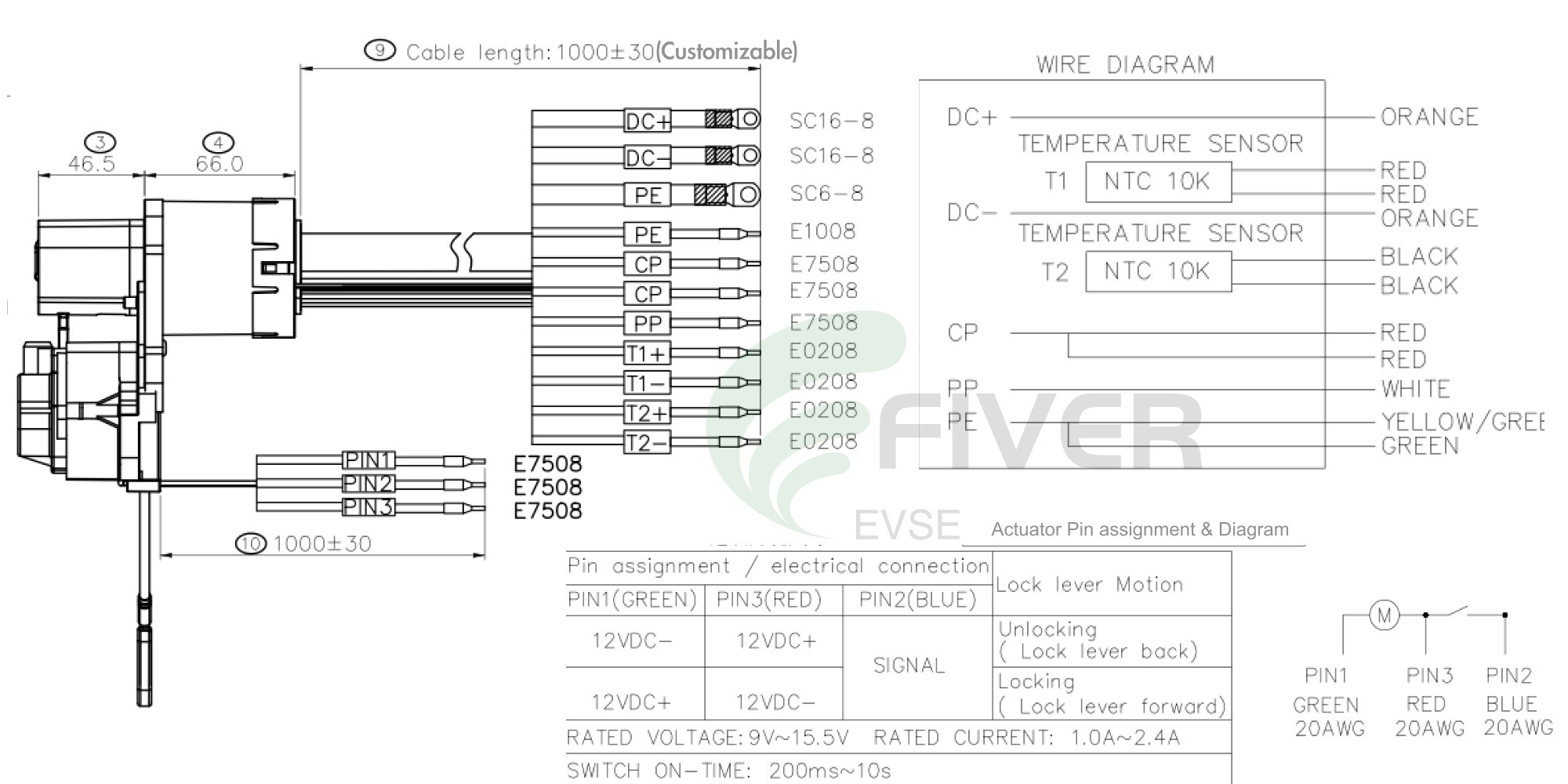

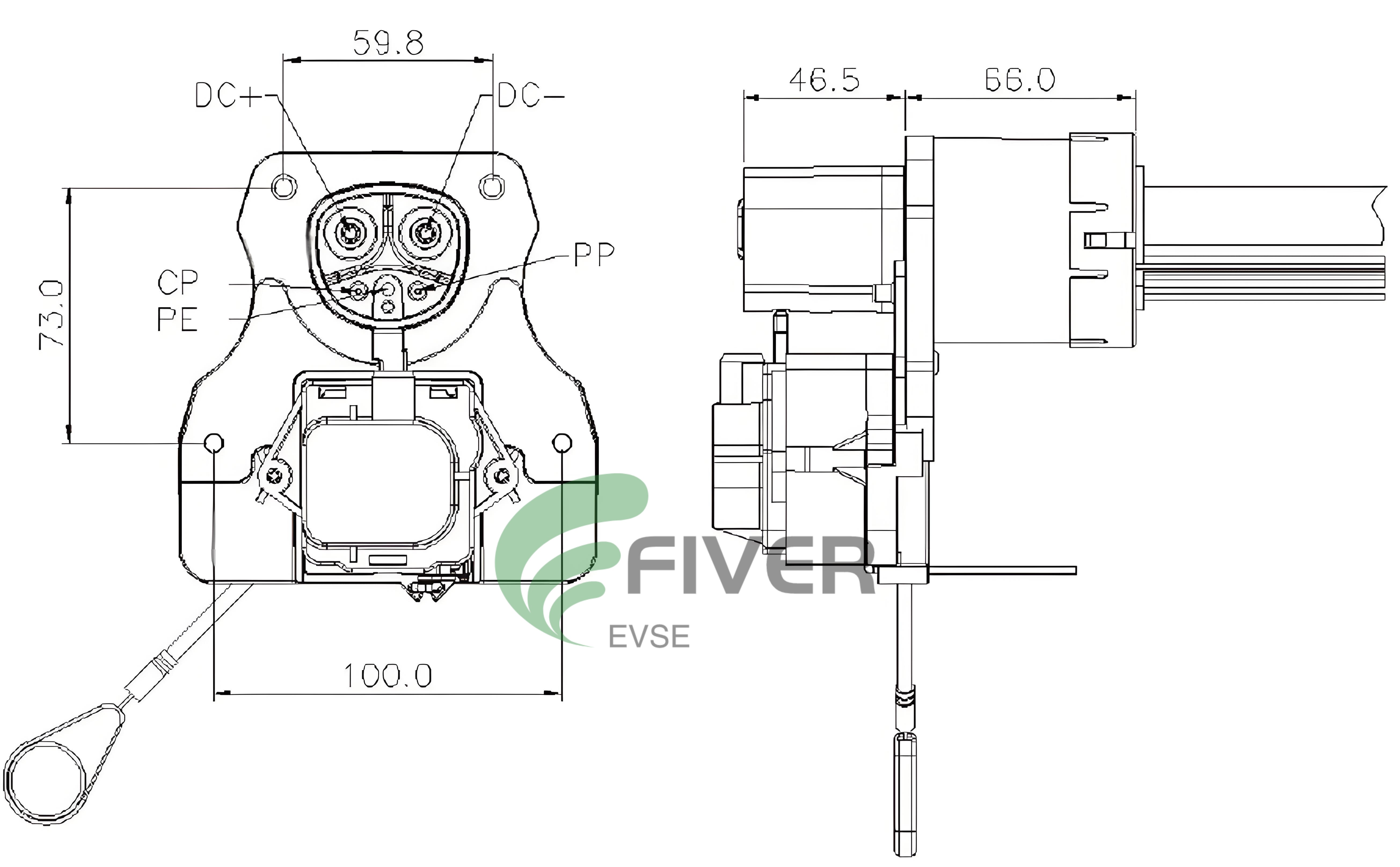

Fiver's NACS Port with Actuator Pinout Diagram and Measurements

Key Features & Technical Superiority.

1. 1000V-Ready Modular Architecture
- Voltage Rating: 1000V DC (Supports 800V battery systems and future 1000V platforms)
- Current Flexibility:
- AC/DC Combo: 48A–80A (dual model operation)
- DC Fast Charge: 125A-150A-200A-250A-300A–350A (Liquid-cooled configurations available soon)
- Snap-In Locking System: Tool-free installation with 800N retention force (SAE J3109 compliant).

2. Intelligent Actuator & Thermal Safety
- Dual NTC Sensors:
- Integrated into DC+/DC- terminals for real-time monitoring (-40°C to +150°C, ±0.5°C accuracy).
- 3-stage derating protocol to prevent thermal runaway.
- Wide-Voltage Electromagnetic Lock:
- Operates at 9V–15.5V (compatible with 12V/24V systems).
- Emergency unlock via backup super-capacitor during power loss.

3. Extreme Environment Resilience
- Operating Temperature: -40°C to +50°C continuous / 105°C peak (15 mins).
- Protection Ratings:
- Type 3R (Corrosion-resistant for outdoor industrial use).
- IP2X touch protection (uncoupled) / IP67 (coupled).
- Material Excellence:
- Silver-plated C18150 terminals (<0.25mΩ resistance @200A).
- UL94-V0 self-extinguishing housing.

Application Scenarios for The NACS Charging Port?

1> Passenger Electric Vehicles

Ultra-Fast Charging for Consumer EVs, Enable 10% -80% SOC in 9 minutes (350KW) for premium EVs with 800V/1000V battery systems.

- Supports bidirectional charging (V2X) for vehicle-to-home (V2H) and vehicle-to-grid (V2G) energy transfer.

- Technical Edge:

-1000V DC rating ensures compatibility with next-gen high-voltage architectures (e.g., Porsche Taycan, Lucid Air).

- Dual NTC sensors on DC+/DC- terminals prevent overheating during sustained 350A+ operation.

Urban Mobility & Fleet Vehicles
- Optimized for ride-hailing fleets requiring high-duty-cycle charging (50+ cycles/day).
- Compact design suits urban charging stations with space constraints.
- Durability:
- IP67/IP69K protection withstands frequent plug/unplug cycles in all weather conditions.
- Snap-in locking mechanism reduces maintenance costs vs. screw-type connectors.

2. Commercial & Heavy-Duty Vehicles
Electric Trucks & Logistics
-Scenario:
- Delivers 1C charging rates for 600kWh+ battery packs (e.g., Tesla Semi, Volvo VNR Electric).
- Liquid-cooled 350A+ configurations sustain continuous operation in long-haul trucking.
- Customization:
- Shielded high-voltage harnesses (up to 15m length) for trailer integration.
- Military-grade materials (Type 3R) resist road salt, dust, and vibration.
Public Transport (Buses, Shuttles)
- Scenario:
- Supports overnight depot charging at AC32A/DC150A for municipal bus fleets.
- CAN FD communication enables smart load balancing across multiple vehicles.
- Safety:
- UL94-V0 flame-retardant housingmeets transit safety regulations (e.g., NFPA 130).

3. Microgrid & Emergency Power
- Scenario:
- Critical for V2G-enabled microgrids providing backup power during outages.
- 12-24V electromagnetic lock ensures secure coupling in mission-critical applications.
