Factory Supply 80A/125A/150A/200A CHAdeMO Charge Port with Tailored Harness

The CHAdeMO charge port/inlet is a specific type of DC fast-charging interface used for electric vehicles (EVs). CHAdeMO was developed by a consortium of Japanese automakers, including Nissan, Mitsubishi, and Toyota. Its primary function is to provide rapid DC (direct current) charging, allowing EVs to quickly replenish their batteries. This enables significantly faster charging times compared to AC charging (Level 1 or Level 2)

Product Parameters of the CHAdeMO Port:

Product Features of the CHAdeMO Inlets:

1> Safe and Reliable: Engineered to comply with select tests of IEC/EN 62196-3 standards, this CHAdeMO inlet ensures superior safety and performance.

2> Enhanced Protection & Stable Operation: Built with a UL 94 V-0 rated flame retardant housing and integrated dual temperature monitoring on DC+ and DC- current carry pins, it offers enhanced protection and operational stability.

3> IP54 Grade Protection: Constructed with highly weather-resistant materials and rated IP54, this charge port delivers exceptional durability and reliability in diverse environmental conditions

4> Different Power Rates for Diverse Needs: With a maximum charging capacity of 80A, 125A, 150A and 200A, it supports rapid charging for all CHAdeMO-compatible electric vehicles. Ideal for installation as a recharging inlet on pure electric and hybrid vehicles.

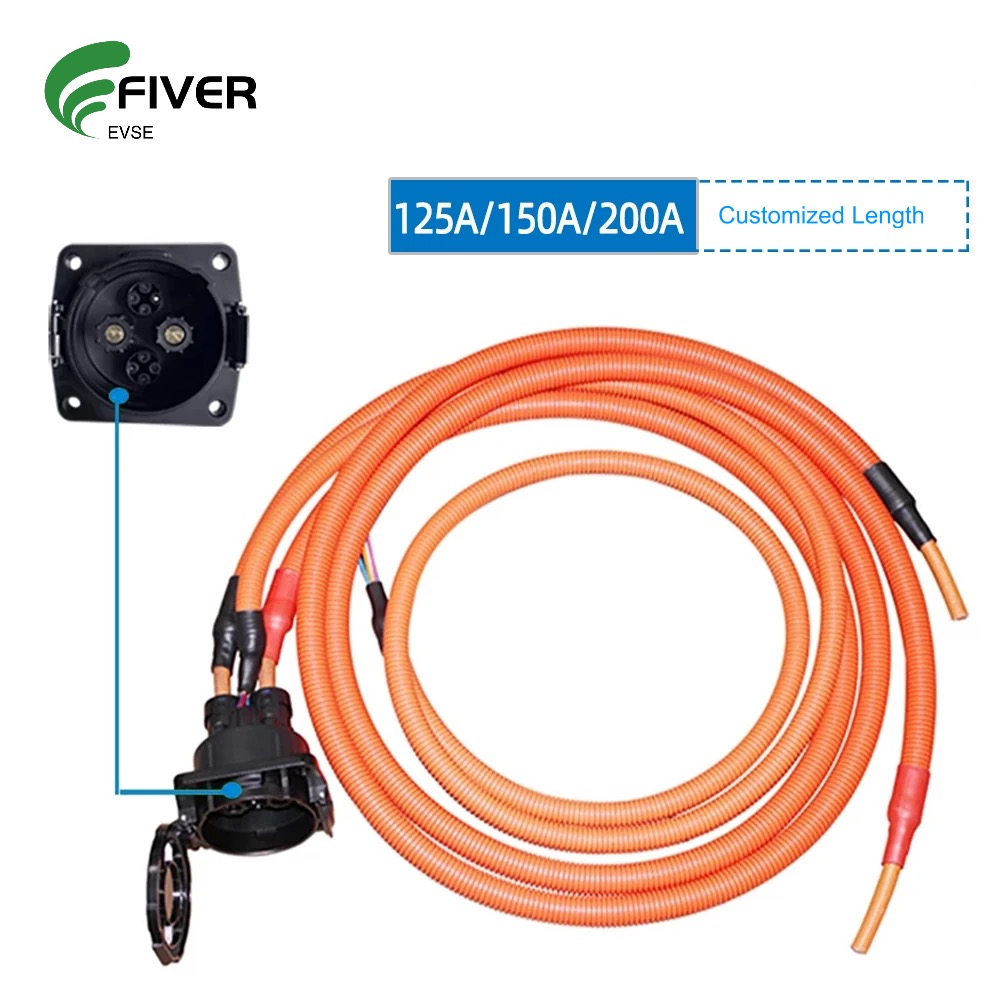

5> Customized Harness: Fiver's CHAdeMO charge port with tailored harness provides a seamless and efficient charging experience.

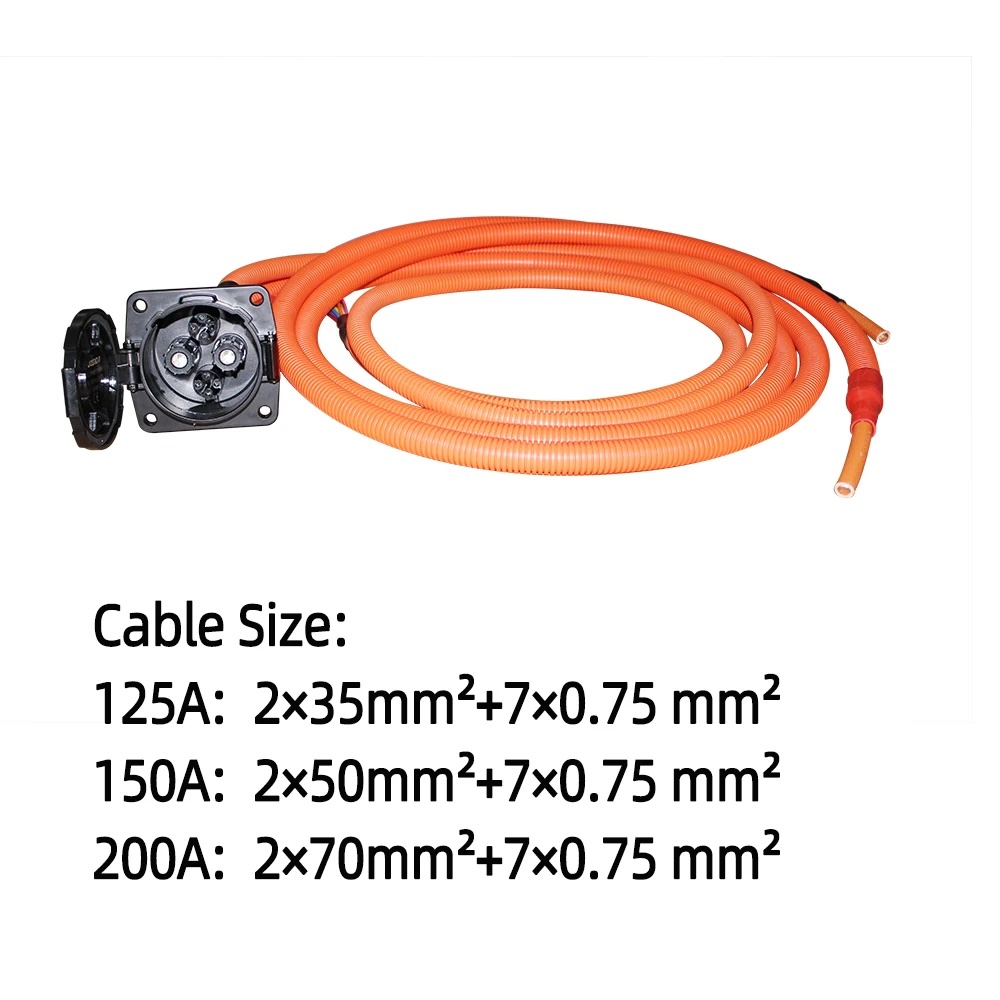

Wire Guage for the 125A 150A and 200A CHAdeMO Charging Ports

Need more info about this CHAdeMO Charge Port Assembly? please contact our Sales-team: jerry@fiverevse.com
