CHAdeMO Connector & Charging Cables

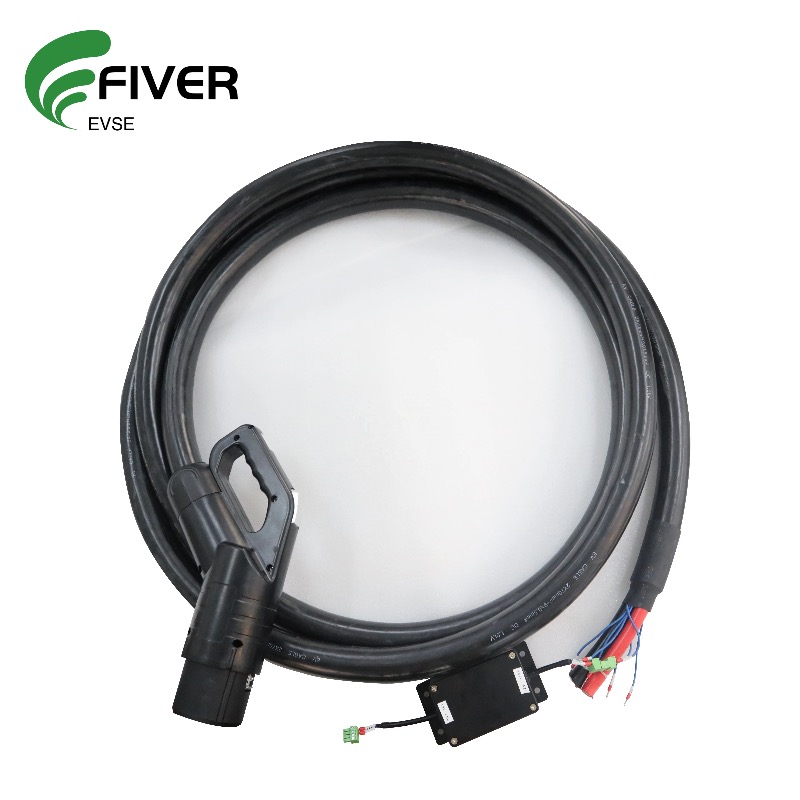

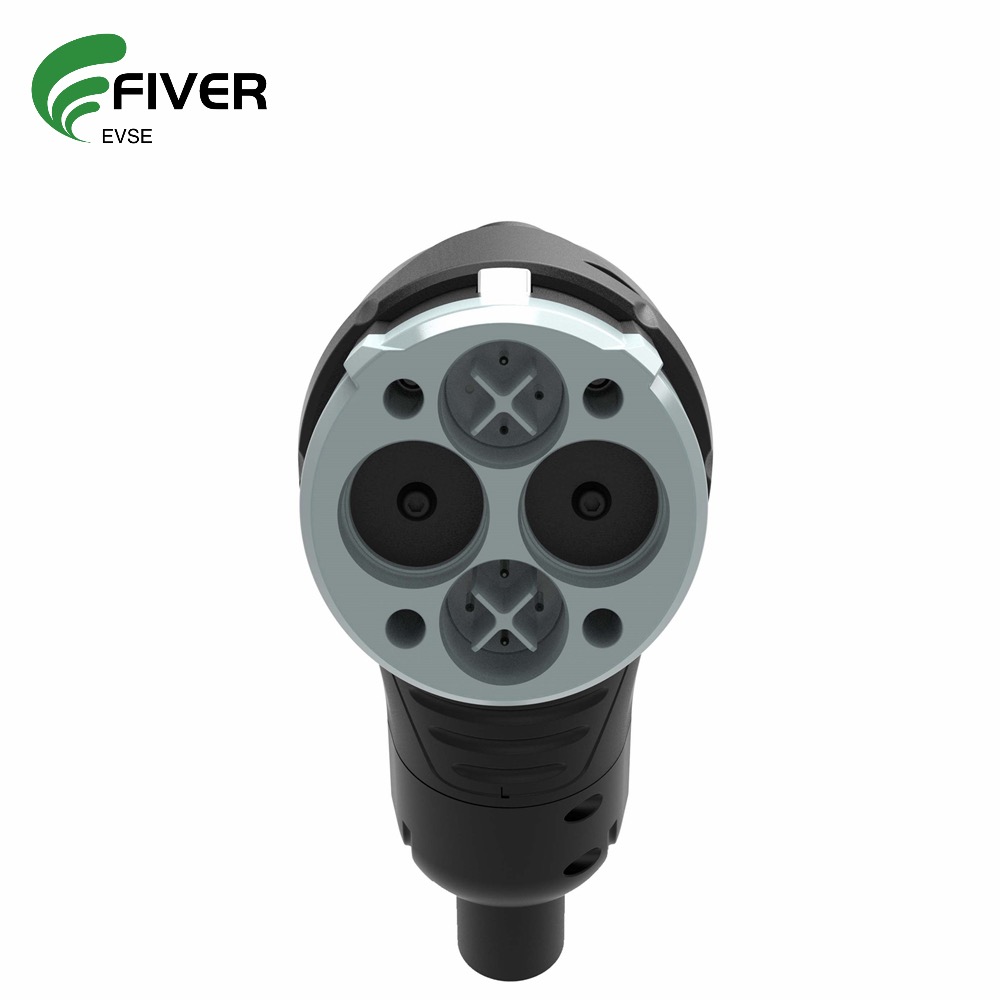

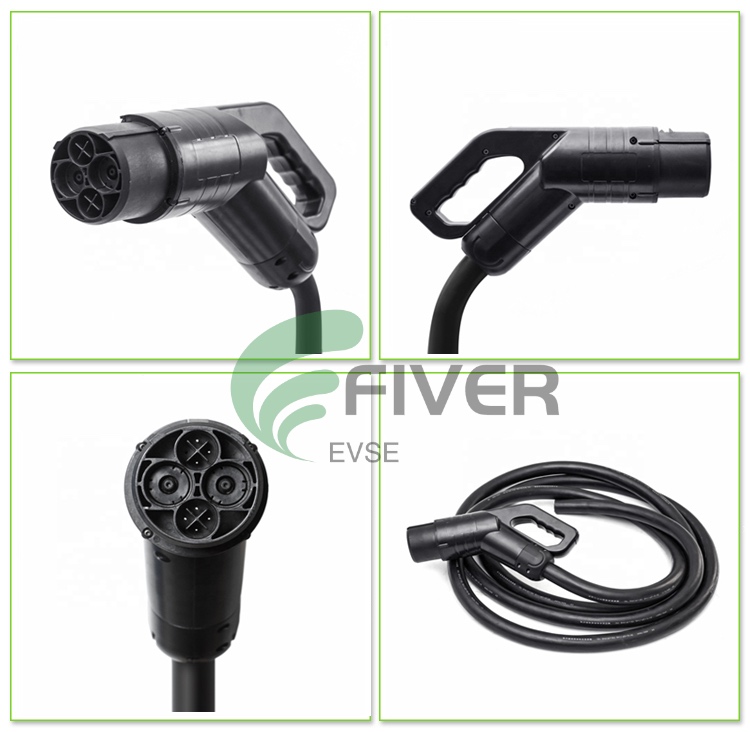

400A Liquid Cooled CHAdeMO 2.0 Plug for Level 3 Fast Charging
- Rated Power: 400KW
- Rated voltage: 1000V DC
- Rated Current: 400A
- IP protection class: IP 54 ( working condition)
- Product description: Discover high-power 400A CHAdeMO 2.0 charging cables. Rapid EV charging solutions with advanced safety features. Ideal for commercial and public stations
400A CHAdeMO 2.0 Charging Cables: High-Power EV Fast Charging Solutions
Introduction abou the CHAdeMO 2.0 Standard
CHAdeMO 2.0, released in 2018, is an advanced fast-charging standard for electric vehicles (EVs) that addresses evolving charging demands with key improvements over its predecessor. It supports DC charging up to 400 kW (1000 V/400 A), enabling significantly faster charging compared to the original 62.5 kW limit. The standard introduces bidirectional Vehicle-to-Grid (V2G) functionality, allowing EVs to supply energy back to the grid for stability and potential revenue generation for users. Enhanced safety features include improved insulation, fault detection, and multiple safety checks during charging, while backward compatibility ensures it works with older CHAdeMO stations. Communication relies on a CAN bus for reliable coordination between vehicles and chargers, and the compact connector design maintains usability despite higher power delivery. The charging process involves seven steps, from initialization to termination, with continuous monitoring for efficiency and safety. While CHAdeMO 2.0 faces competition from CCS in North America and Europe, it remains dominant in Japan and other regions, contributing to global EV adoption through its robust capabilities and technological advancements.Product Parameters for the 400A Liquid Cooled CHAdeMO 2.0 Plug
Product Name
Liquid Cooled CHAdeMO Plug
Rated Voltage
1000V DC
Rated Current
400A
Cooled Method
Liquid Cooled
Withstand Voltage
3200V AC/1 min (DC+/DC- --PE)
Insulation Resistance
100m 750V DC
Actuator
12V/24V DC optional
Mechanical Lifespan
> 10000 Matting Cycles
Ambiant Temperature
-40℃ ~ + 50℃
IP Grade
IP54 (not Matted) IP44(Mated)
Shell Material
PA
Contact Material
Copper Alloy Silver Plated
Product Features for the 400A CHAdeMO Charging Cable:
1. High Power Capacity: The cable supports DC Fast Charging at 400A and 1000V, delivering up to 400 kW of power, enabling rapid charging for compatible EVs.
2. Durable Construction: Built with a black thermoplastic polyurethane (TPU) jacket, the cable offers superior flexibility and resistance to abrasion, weather, and wear, ensuring long-term durability in various environments.
3. Advanced Safety Features: Designed with integrated safety mechanisms, including robust insulation and secure locking mechanisms, to prevent overheating and ensure safe charging operations.
4. Standard Compliance: Fully compliant with the CHAdeMO charging standard, making it compatible with a wide range of electric vehicles, including popular models like the Nissan Leaf and Mitsubishi i-MiEV .
5. Customizable Length: Cable length can be customized according to your needs, providing flexibility and ease of use in diverse charging setups, whether at public stations, or commercial hubs.
6. Efficient Heat Management: Liquid cooling design, engineered to dissipate heat effectively, maintaining optimal performance even during extended high-power charging sessions.
7. User-friendly Design: Features a user-friendly connector with clear indicator lights and mechanical buttons for intuitive operation and reliable connectivity.
Electric Vehicles that Adopts CHAdeMO Charging Connectors
