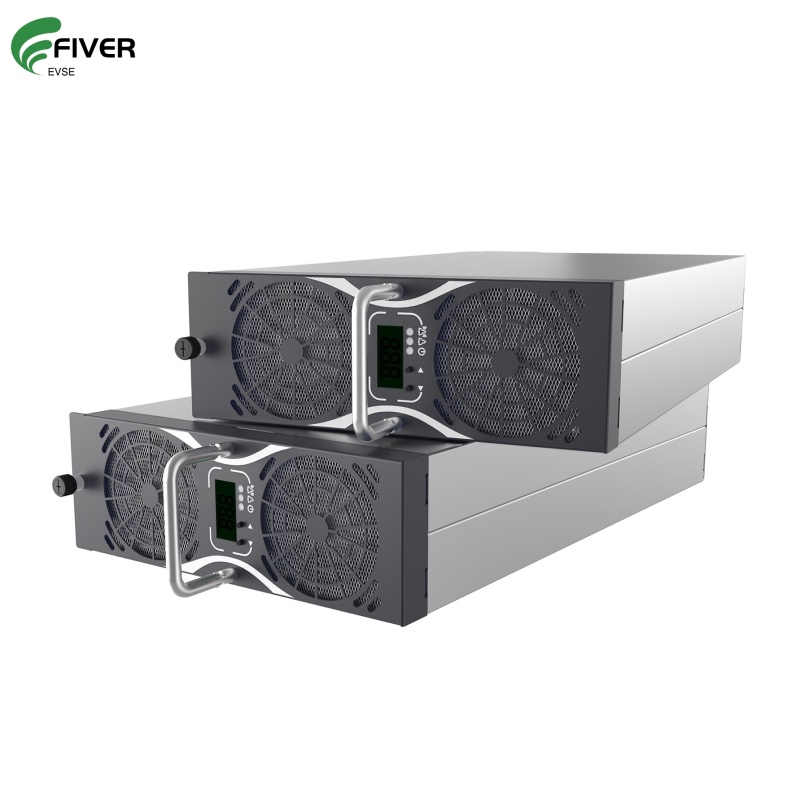

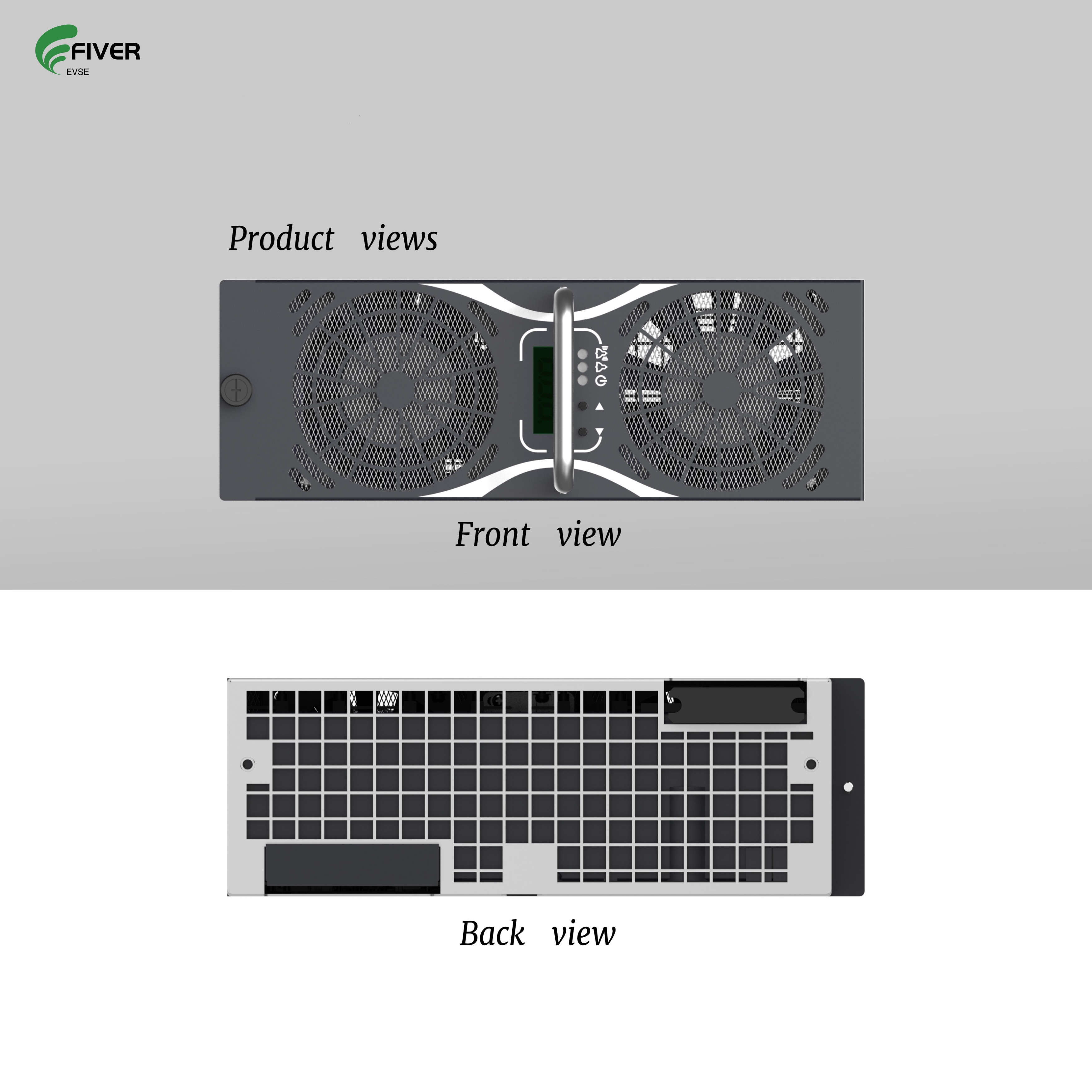

DC Charging Power Module

15KW 750V 20A AC DC Converter

Input Voltage Range: 268-478V AC
Output Voltage Range: 200-750V DC
Rated Output Power: 15KW
MTBF:500000 Hours
Product description: This FIVEREVSE 15KW Power Module is specially developed for EV DC chargers, It has high efficiency, high power factor, high power density, high reliability advantage. AC input is 3 phase 4 wire, DC o
INQUIRY

DC Charger Power Converter Features:

1 Safe and Highly Reliable: Isolation design to ensure users’ and the EV charging system's safety.

2 Support Hot Plug Design: improving system reliability and facilitate the maintenance.

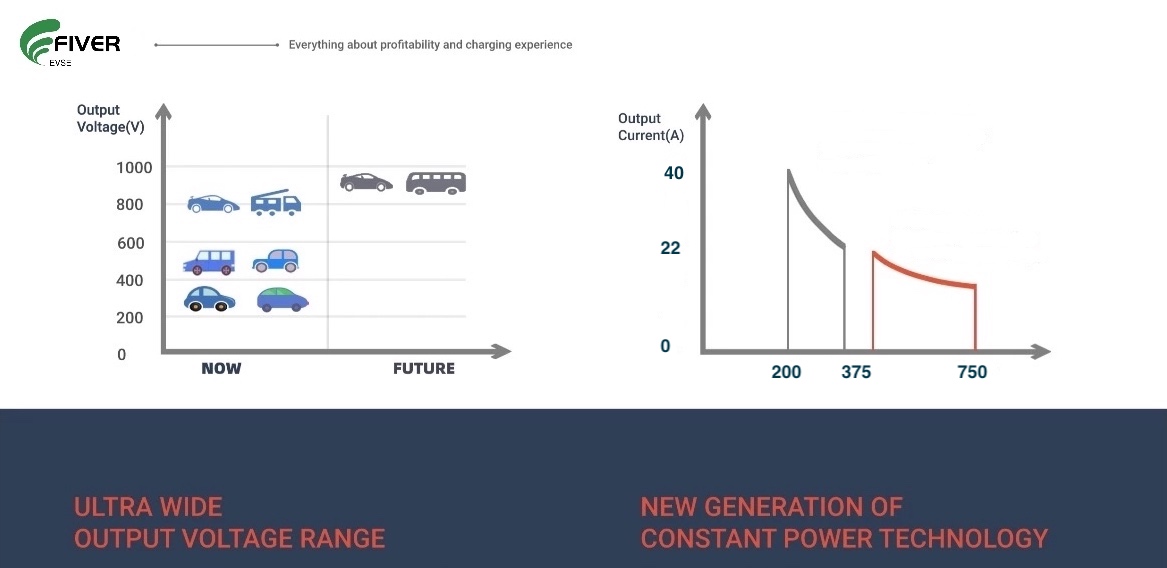

3 Ultra Wide Output Voltage Range: 200-750V DC Compatible with vast majority of the platforms and vehicle charging equipment.

4 Latest Constant Power Technology: 200Vdc-750Vdc Constant power dual output segment, achieves the maximum constant power range, which improves the power utilization ratio of the DC charger, improve the operation efficiency, Maximize the carrier revenue.

5 Low Standby power: consumption <0.1% of the rated output power

6 High Efficiency: High full load/Peak efficiency ≥96%, Half load efficiency ≥95%

7 Power Factor ≥ 99%, and infinitely close to the pure restive load.

8 3phase active power factor correction technology, reduce the harmonic interference to the grid.

9 Orderly switch in between the High Voltage model and Low Voltage model to ensure the constant power and improve the efficiency.

10 A patent intelligent discharge circuit inside, improve the system reliability and simplify the system design

11 Intelligent Control: Dust-proof anti-blocking fans, fan fault alarm, to ensure best and reliable cooling effect; Supports remote fault detection and recovery; Module Protocol supports automatic OTA upgrade and continuous software upgrade, optimizing continuous module performance.

12 Low noise,Supporting Mute Model: Equipped with step-less regulation intelligent fan, lower noise; suitable for noise sensitive area.

13 Wide operating temperature range: -40℃ to +75℃

14 Compliant with CE TUV Safety standard EN61851-1, EN61851-23 , EN61851-23 and EN61851-21-1EMC Standard.

Parameters

Specification	Model	SRE750V-3
AC Input	Phases/ Lines	3-phase (without neutral supported)
	Input Voltage	380Vac±20%: 268-480Vac
	Frequency	45Hz-65Hz
	Power Factor	0.99
	MAX Input Current	30A
	THDi	≤5%
	Efficiency	≥96%
DC Output	DC Output Power	15KW
	DC Output Voltage	200Vac-750Vac
	DC Output Current	>375Vac:0-22A/<375Vac:0-40A
	Unbalanced Current Sharing	≤3%
	Voltage stabilized accuracy	<±0.5%
	Current stabilized accuracy	<±1% (output power in 20%-100%)
Control	Communication	CAN BUS (MAX 48 power module in parallel)
	Indicate LED Light	Green (Normal Operation) / Yellow (Alarm) / Red (Failure)
	Address Indication	Automatic address identification, Panel dial switch for group setting
Structure	Housing material	Metal case
	Installation method	Hot plug type
	Cables	SRE750V cables/black 1.8m 10AWG power cable-input and output
Environmental Index	Operating Temperature	-20~+75°C, power berating form 55°C
	Working Humidity /Altitude	≤95% RH non-condensing / <2000M
	MTBF	>50000h
	Cooling Method	Fan cooling
Security Protection	Voltage Protection	Over Under Voltage automatic shutdown and restart when voltage return normal
	Over Current / Short Circuit Protection	Automatic shutdown and lock, need to power off to restart and unlock
	Over Temperature Protection	Automatic shutdown. Automatic restart when the temperature return to normal
	Certificate	Comply with CE, EN 61851-1-2001, EN 61851-21-2001, EN 61851-22-2001, EN61000-6-3 and EN61000-6-1 Class B
Dimension	Dimension & Weight	86 mm220mm395mm (HWD) & 11KG
