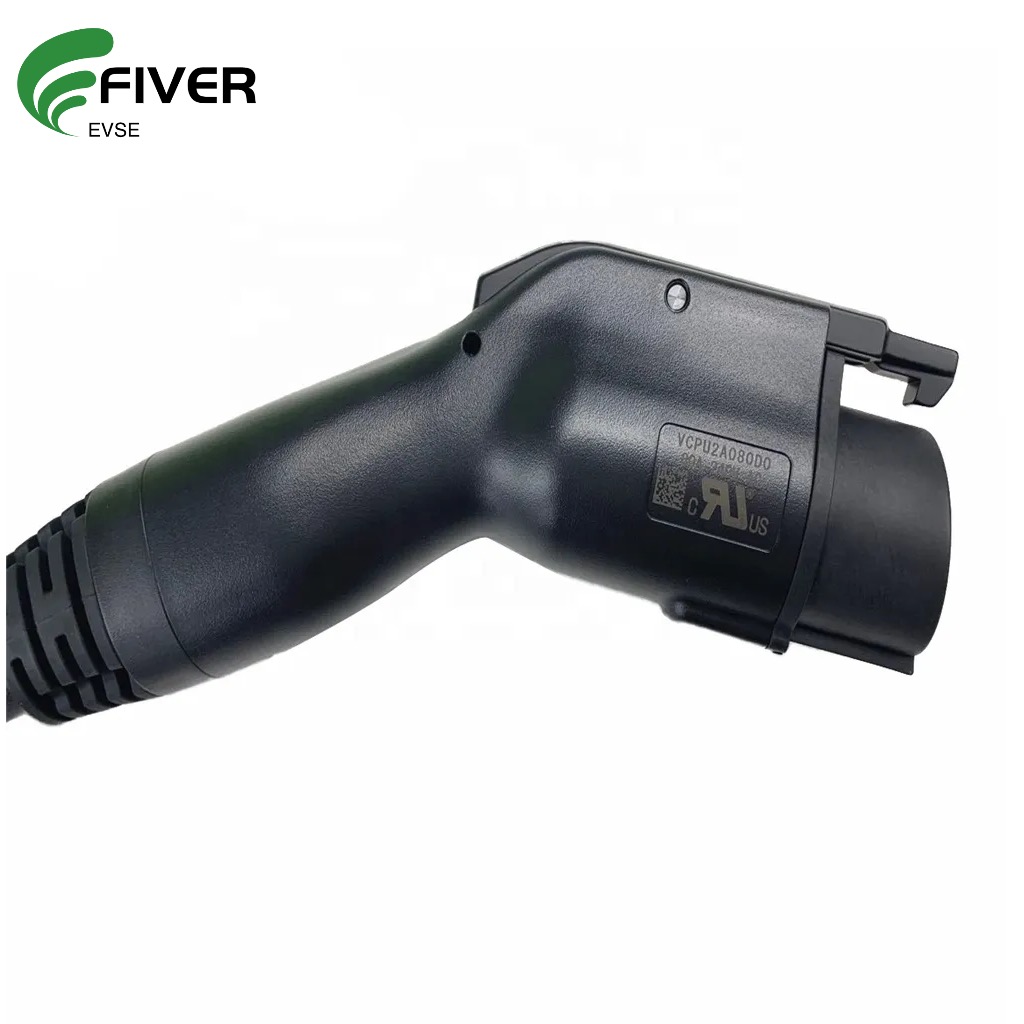

UL Certified 240V 80A 19.2KW SAE J1772 Type 1 Charging Cable

UL Certified 240V 80A 19.2KW SAE J1772 Type 1 Charging Cable

Rated Power: 19.2KW
Rated voltage: 240V AC
Rated Current: 80A
IP54
Product description: This 80A Type1 SAE J1772 AC Electric Vehicle Charging Cable designed and manufactured by Fiver for all your electric vehicle (EV) charging needs. Whether for residential or public charging application
INQUIRY

UL Certified 240V 80A 19.2KW SAE J1772 Type 1 Charging Cable OEM Service Welcomed

80A 240V Type 1 AC EV Charging Cable

80A Type 1 SAE J1772 AC EV Charging Cables Technical Information

Product Definition
Charging Standard	J1772
Standards / Regulations	UL 2251, CSA C22.2 NO. 282 SAE J1772
Approval	UR/cUR
Dimensions Charging Connector
Width	43.8 mm
Height	117.5 mm
Depth	220.5 mm
Cable Length	On Request
Ambient Conditions
Ambient Temperature (Operation)	-30°C to +50°C
Ambient Temperature (Storage/Transport)	-40°C to +80°C
Max. Altitude	5,000m (above sea level)
Degree of Protection (Unmated)	IP67 / 3R and above
Degree of Protection (Mated)	IP44
Degree of Protection (Protective Cap)	IP54
Electrical Properties
Number of Phases	1 Phase
Rated Voltage for Power Contacts	240V AC
Rated Current for Power Contacts	16A	32A		48A		80A
Maximum Charging Power	3.84 kW	7.68 kW		11.52 kW		19.2 kW
Number of Power Contacts	3 (L1, N, PE)
Rated Voltage for Signal Contacts	30V AC
Rated Current for Signal Contacts	2A
Number of Signal Contacts	2 (CP, PP)
Note on the Connection Method	Crimp Termination (cannot be disconnected)
Resistor Coding (between PE and CS)	480 Ω (lever operated)
Resistor Coding (between PE and CS)	150 Ω (lever not operated)
Mechanical Properties
Mating Cycles	> 10,000
Insertion Force	< 75 N
Withdrawal	< 75 N
Design
Housing / Handle Area Colour	Black
Mating Face / Locking Lever Colour	Black
Protective Cap Colour	Black
Housing with Customer Logo	On Request
Material
Material Housing / Handle Area	Plastic
Material Mating Face	Plastic
Material Protective Cap	Soft Plastic
Flammability Rating	V0
Material Contacts	Cu-Alloy
Plating	Silver Plating
Cable	* UL Listed EVE cable ** Set Approval is required when using the UL Recognised EVC cable
Cable structure	1 Phase
	** 16A	** 32A	* 32A	** 48A	* 48A	** 80A	* 80A
	EVC 3x14AWG + 1x22AWG	EVC 3x10AWG + 1x22AWG	EVE 3x10AWG + 1x22AWG	EVC 2x8AWG + 1x10AWG + 1x22AWG	EVE 2x8AWG + 1x10AWG + 1x18AWG	EVC 2x5AWG + 1x6AWG + 1x16AWG	EVE 2x5AWG + 1x6AWG + 1x16AWG
Cable Diameter	10.5 mm	12.0 mm	15.8 mm	14.5 mm	22.5 mm	21.85 mm	24.0 mm
Cable Resistance at 20°C (6AWG)	≤ 1.40 Ω/km
Cable Resistance at 20°C (8AWG)	≤ 2.23 Ω/km
Cable Resistance at 20°C (10AWG)	≤ 3.51 Ω/km
Cable Resistance at 20°C (14AWG)	≤ 8.88 Ω/km
Cable Resistance at 20°C (18AWG)	≤ 22.4 Ω/km
Cable Resistance at 20°C (22AWG)	≤ 56.8 Ω/km
Cable Standard	UL 62
Type of Conductor	Straight (or more type on request)
Outer Sheath Material	TPE Compound
Outer Sheath Colour	On Request
Environmental Product Compliance
REACH SVHC	Compliant
China RoHS	Compliant
EU RoHS	Compliant

80A Type 1 AC Charging cable supplier

110/240V 80A SAE J1772 Charging Cable Type 1 Features:

1. One of the key features of our Type 1 J1772 AC charging cable is its charging current versatility. We offer a variety of options, from 16A to AC up to 80A, ensuring there is a cable to suit every EV owner's requirements. No matter the size or model of your electric vehicle, our cables can restore your battery to full capacity in no time.

2. To ensure compatibility with the North American electric vehicle market, our charging cables comply with strict SAE J1772 specifications. This means they are designed to work seamlessly with your electric vehicle to provide a reliable, efficient charging experience every time. You can trust that our charging cables are specifically designed to meet the high standards set by the industry, ensuring a safe and reliable charging process.

3. Safety is always a top priority, which is why our Type 1 J1772 AC charging cables are available in UL Listed and UL Approved cable configurations. This means they meet the strict electrical safety standards set by Underwriters Laboratories (UL). Our cables comply with UL 2251 and UL 62 standards, giving you peace of mind knowing that the products you use are rigorously tested and meet the highest safety requirements.

4. Our 80A Type 1 J1772 AC Charging Cord is more than just another charging cord. This is a reliable and durable solution that will last for years. With their sturdy construction and high-quality materials, our cables are built to withstand the wear and tear of daily use. Its design is sturdy yet flexible, giving you a worry-free charging experience.

5. The Type 1 charging cable is easy to use and features a user-friendly design. The connector is ergonomically designed for easy insertion and extraction, minimizing the possibility of damage to your vehicle's charging port. The length of the cable allows for convenient charging even if the charging station is a little further away from your vehicle.

In summary, our Type 1 SAE J1772 AC EV Charging Cable is the perfect solution for all your EV charging needs. With their wide range of charging currents, compliance with SAE J1772 specifications, and UL Listed and UL Approved configurations, you can trust that our cables will provide a safe and reliable charging experience. Make charging your electric vehicle a breeze with our Type 1 J1772 AC Charging Cable.

A Glance to our Plant
