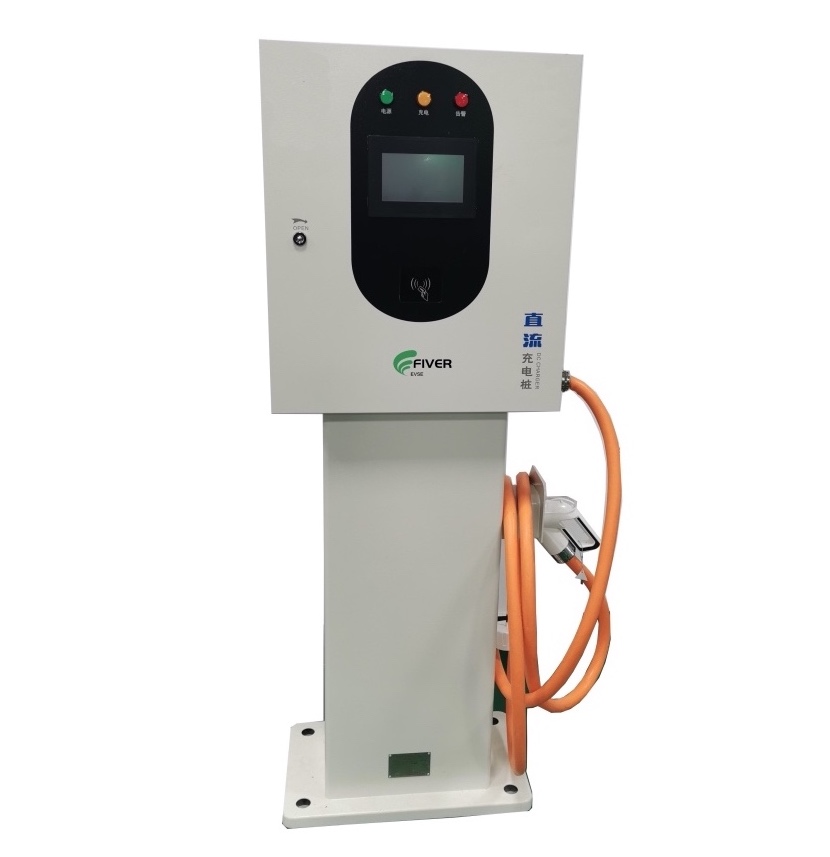

Public 30KW 200-500V Output Electric Car DC Fast Charging Station

  • Output current: 0-60A
  • Output voltage: 200-750V DC/ 200-500V DC
  • Rated Output Power: 30KW
  • IP protection class: IP 54 ( working condition)
  • Product description: This 30kw EV charging station with 2 bulit in 15kw charging power module, it can configure to CCS2 / CCS1 / CHAdeMo standard.And with the 200V-500VDC / 200V-750VDC output for option
  • INQUIRY

Product Features:


Fiver SEV series outdoor DC integrated charger adopts a new generation of intelligent charging module, single and double output can be arbitrarily selected according to customer requirements. The dual-gun type can be distributed according to the actual charging demand to meet the charging needs of small and medium-sized passenger cars and logistics vehicles.

– CCS1 / CCS2 / CHADEMO Support

– Internet with Wifi/3G/4G/Ethernet; OCPP 1.6 (2.0 Upgraded ) compliant

– Payment Methods: Mifare 1 card/ Scan QR code/APP

– Ready to use management software embedded

IP54 design for harsh environment

– Easily configure the output power up to 30KW

 CE certificated

– Customized Brand Painting support



Product Parameters:


Specification

Model

SEV750/40Y-U; SEV500-60Y-U

AC Nominal Input

Phases/ Lines

3-phase; 3P+N+PE

Input Voltage

380VAC±20%

Frequency

45-65Hz

DC Nominal Output

DC Voltage Accuracy

<±0.5

Output Voltage/current

30KW: 200-750Vdc,0-40A; 200-500Vdc, 0-60A

Output Efficiency

>94% (Rated input and output)

Electrical

Specification

LED Indicator

Yes

LCD Touch Screen

Colorful 7" Touch screen

Emergency Stop Button

Yes (Red Color)

RFID Function

Yes (Authorized RFID cards can charged only)

RFID Card Quantity

2pcs Mifare card

Smart Phone APP

Yes (Support use the smart phone to charge and make payment)

Energy Meter

DC energy meter

Structure Design

Housing Material

Metal case

Installation Method

Floor-stand

Application scenes

Commercial / Public charging

Charging Outlet

Combo CCS2 / CHAdeMo / Combo CCS1 option one

Charging Outlet Quantity

1 or 2 optional

Cable Length

5M cable

Communication

Network Method

Wifi; Ethernet; 4G;3G;GPRS

Communication Protocol

PLC; CAN

OCPP 1.6(2.0Version) JSON ( Charger with OCPP board inside)

Environmental

Index

Operating Temperature

-30~+65°C (derating work above 50°C)

Working Humidity

5%~95% without condensation

Working Altitude

<2000M

Protection Grade

IP54 / IK10

Application Site

Indoor/Outdoor

Cooling Method

Fan cooling

Security Protection

Multi le Protection

Over Current Protection, Over/ Under Voltage Protection,

Short Circuit Protection, Reverse Polarity Protection, Over Temperature Protection, Protect, Earth Connect Monitoring, Full automatic stop

MTBF

100,000 hours

Certificate Compliance

Complete charger comply with CE, EN 61851-1:2011, EN 61851-23:2014, EN 61851-24:2014, EN55022 CLASS A

Warranty

2years

Dimension

Dimension & Weight

550*320*1600 mm
