EV Charging Adaptors

  • NACS to CCS1 Adapter 500V 500A for Non-Tesla Vehicle to Charge ON Tesla Superchargers
  • NACS to CCS1 Adapter 500V 500A for Non-Tesla Vehicle to Charge ON Tesla Superchargers
  • NACS to CCS1 Adapter 500V 500A for Non-Tesla Vehicle to Charge ON Tesla Superchargers
  • NACS to CCS1 Adapter 500V 500A for Non-Tesla Vehicle to Charge ON Tesla Superchargers
  • NACS to CCS1 Adapter 500V 500A for Non-Tesla Vehicle to Charge ON Tesla Superchargers
NACS to CCS1 Adapter 500V 500A for Non-Tesla Vehicle to Charge ON Tesla SuperchargersNACS to CCS1 Adapter 500V 500A for Non-Tesla Vehicle to Charge ON Tesla SuperchargersNACS to CCS1 Adapter 500V 500A for Non-Tesla Vehicle to Charge ON Tesla SuperchargersNACS to CCS1 Adapter 500V 500A for Non-Tesla Vehicle to Charge ON Tesla SuperchargersNACS to CCS1 Adapter 500V 500A for Non-Tesla Vehicle to Charge ON Tesla Superchargers

NACS to CCS1 Adapter 500V 500A for Non-Tesla Vehicle to Charge ON Tesla Superchargers

  • Rated Power: 250KW
  • Rated voltage: 500V DC
  • Rated Current: 500A
  • IP protection class: IP 54 ( working condition)

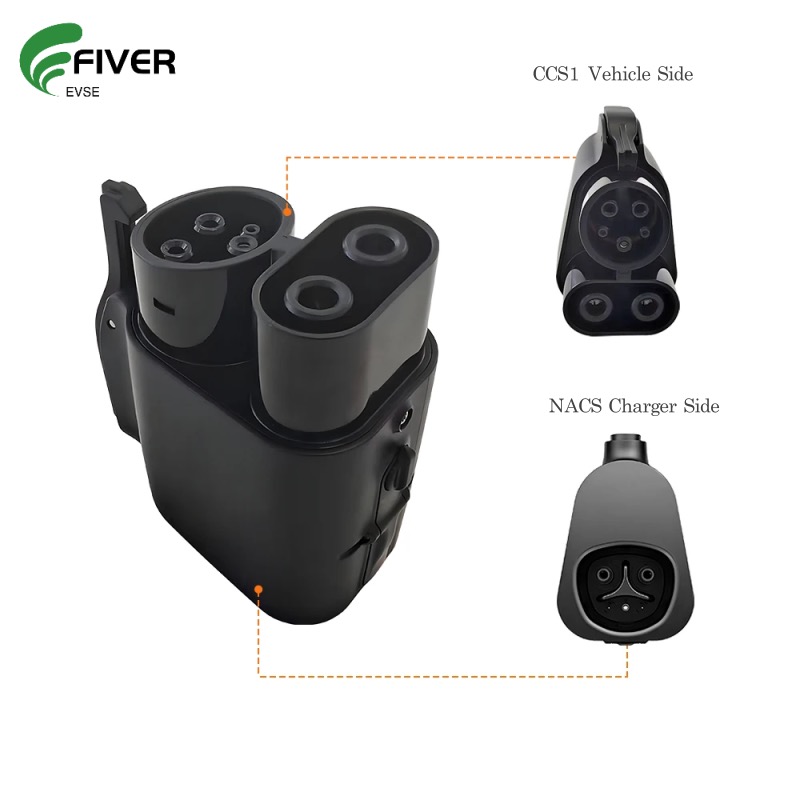

  • Product description: This NACS to CCS1 charging adapter one end with a NACS charging port to connect to the NACS plug the other end is a CCS1 plug connect to CCS1 charging port, used for CCS1 equipped electric vehicle to
  • INQUIRY

NACS to CCS1 Adapter 500V 500A for Non-Tesla Vehicle to Charge ON Tesla Superchargers

500A 250KW NACS to CCS1 Adapter

Product Parameters for This 250KW NACS Adapter

Product Name NACS to CCS1 Adapter

Rated Voltage

500V DC

Rated Current

500A

Rated Power

250KW

Material ABS+PC
Lifespan Over 10000 Mating Cycles
Working Temperature -30C~+50C

IP Grade

IP54

Certification

FCC


Product Features for This 500A NACS to CCS1 Adapter:


1> High Charging Capacity: This NACS adapter with a rated current up to 500A, rated voltage 500V, with a max charging capacity up to 250KW

can add range up to 100 miles within 10 minutes in theory.

2> High Compatibility: This NACS DC Adapter enables electric cars in many brands with CCS1 charge port to charge on Tesla's Supercharges.

Compatible with following electric car models: All Ford Electric & Hybrid Cars (Mustang Mach-E, F-150 Lightning, E-Transit, Maverick, Escape ST-Line Elite Hybrid, F-150, Escape Plug-in Hybrid) and all Rivian EVs (R1T, R1S, R2, R3) And All GM EVs (Chevrolet, Cadillac, GMC) Not Compatible With: Audi, BMW, Kia, Lucid, Mazda, Mercedes, MINI, Polestar, Porsche, Stellantis, Toyota, Volkswagen, Volvo.

Want to know which automakers are adopting the NACS Charging standards? please click the link to check out.

Features of Fiver NACS to CCS1 Adapter

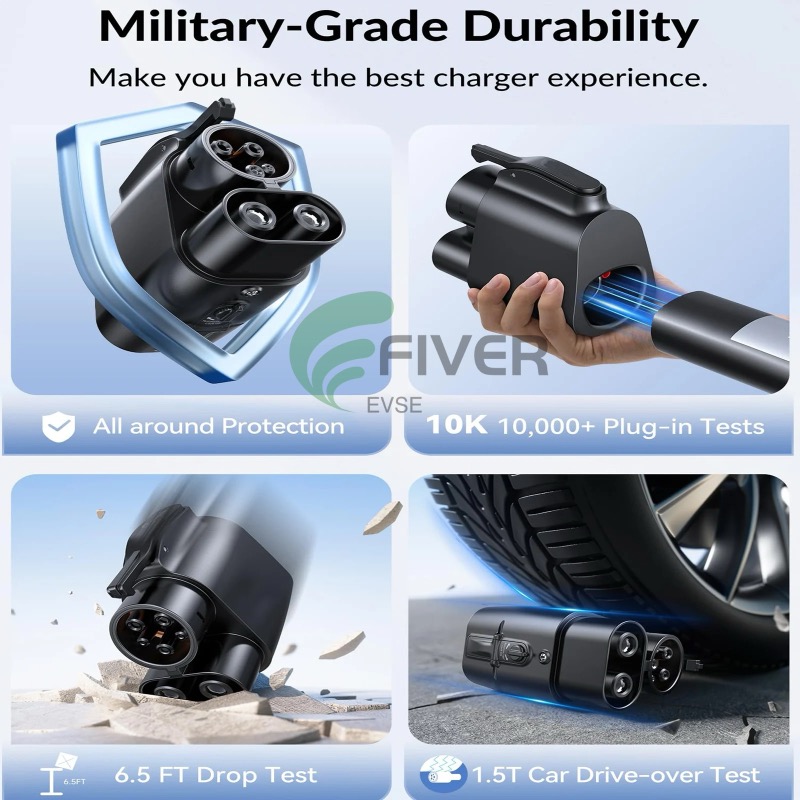

3> Compact, Durable and User Friendly: This NACS charging adapter is compact design small in size, easy for carry around and storage in your Evs. The housing is constructed in ABS and PC which is highly durable, it passed 10000+ plug in test, to ensure the stable performance during it's lifespan; Impact resistance can withstand 6.5FT drop test; High strength and bearing capacity, withstand a 1.5T car drive over. and the adapter is user friendly, easy to use.

4> All-round Protections: Equipped with an automatic temperature control system, the NACS to CCS1 adapter features two strategically placed temperature sensor switches. If the first sensor detects a certain temperature threshold, it reduces the charging rate. If the second sensor detects an even higher temperature, it halts charging entirely. The adapter can resume charging once the temperature cools down and is reconnected. It's noteworthy that during real-world testing, the thermal shutdown feature was never triggered.

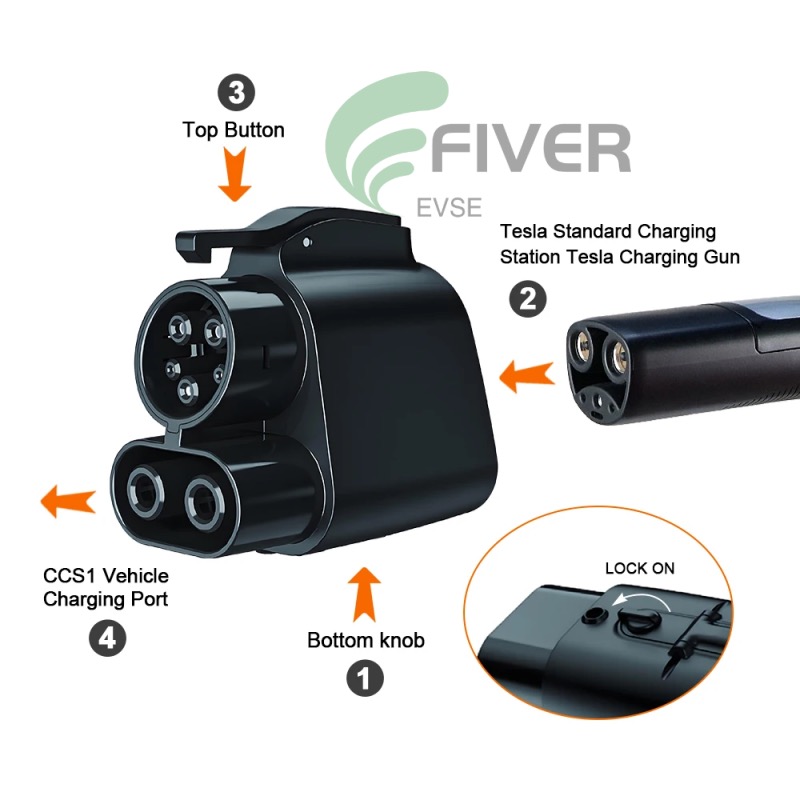

5> With a Mechanical Locking System, Prevent Unintended Disconnections: This EV Charging Adapter NACS (J3400) to CCS1, is with two mechanical locking system. the latch and a bottom knob to prevent unintended disconnections.

NACS to CCS1 Charging Adapter with Locking System

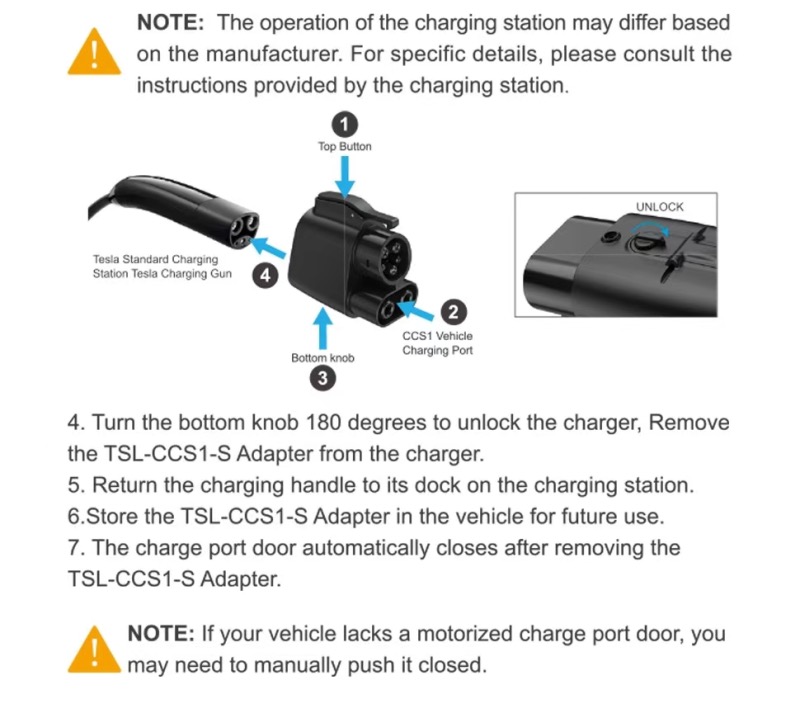

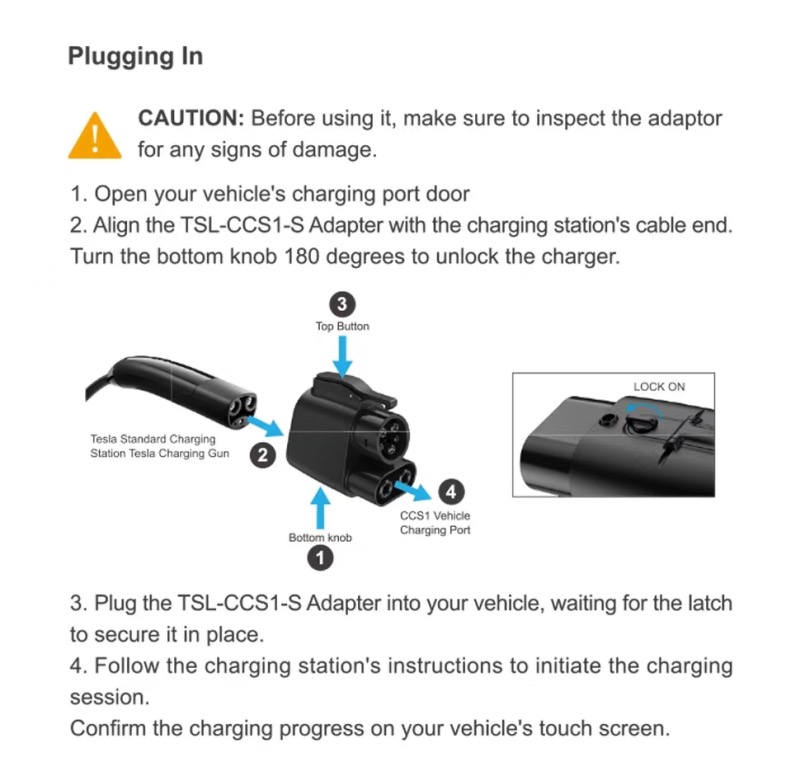

How to Use This NACS Charging Adapter?

Before using it to charge your CCS-equipped cars has enabled plug & charge function, or it will not start communication and charging with the NACS Charger.


How to Use the NACS to CCS1 Adapter

How to Use the NACS adapter correctly
