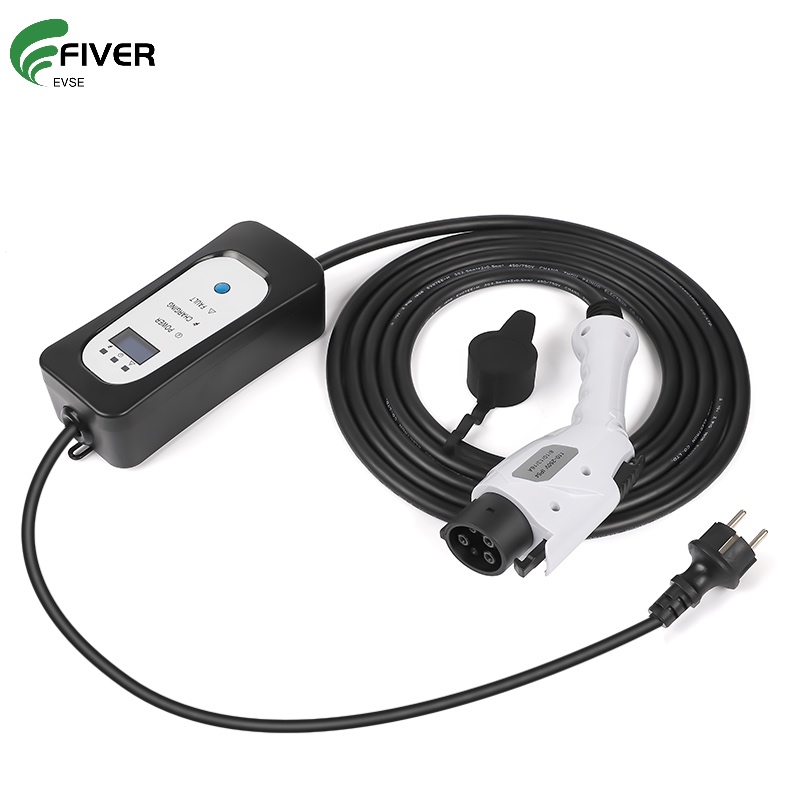

Model 2 Type 1 Portable 8A-10A-13A-16A Current Adjustable EV AC Charger

  • Rated current: 16A
  • Rated voltage: 110V-240V AC
  • Operation Temp.:-30℃ ~ + 50℃
  • IP protection class: IP 54 ( working condition)
  • Product description: This Model 2 Type1 Portable 8A-10A-13A-16A current adjustable EV charger is suitable for the US/Japan standard with type 1 socket electric vehicles. current can be adjustable from 8A-10A-13A-16A.
  • INQUIRY

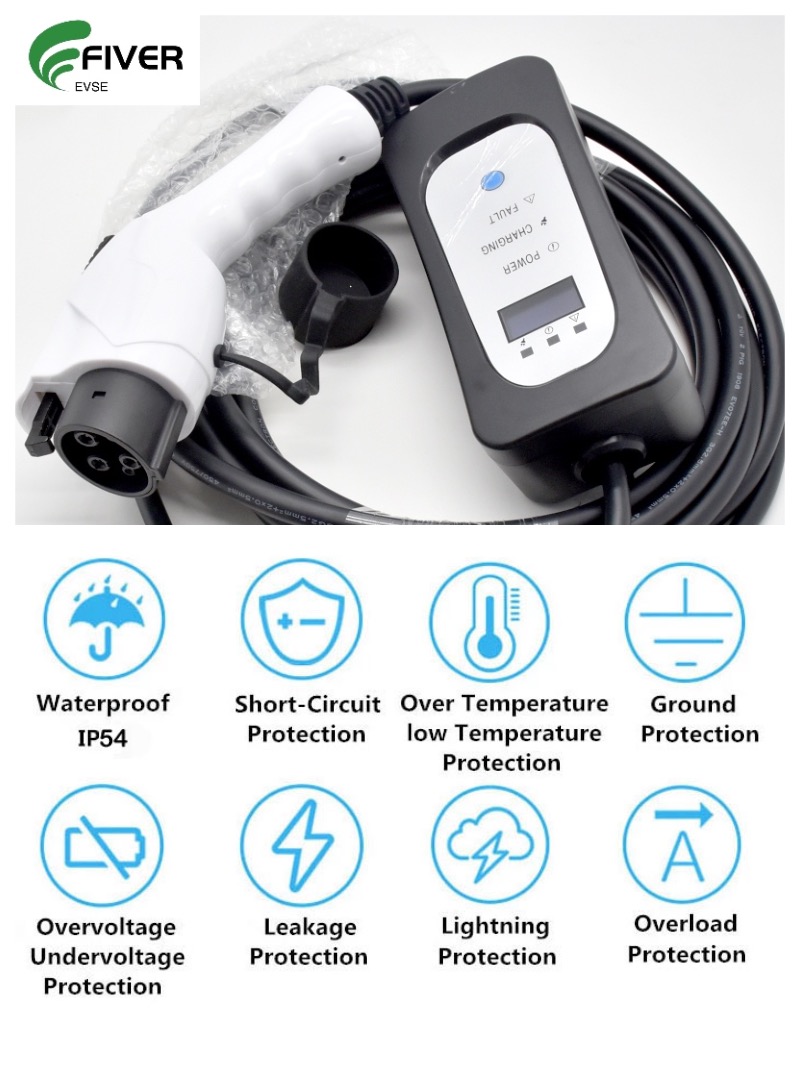

Product Features:

1. This  Portable EV Charger is comply with most standard type 1 electric vehicles.

2. Built in chip ,automatically repair non safety faults

3. Waterproof level reached highest level of civil products

4. Monitor the charging temperature of the box in real time , ensure the safety of the charger and your car.

5. Complete protection mechanism of over-voltage protection, lightning protection, etc

6. TUV CSA, CE, FCC, NTC, CCC certificated. Quality Assured.

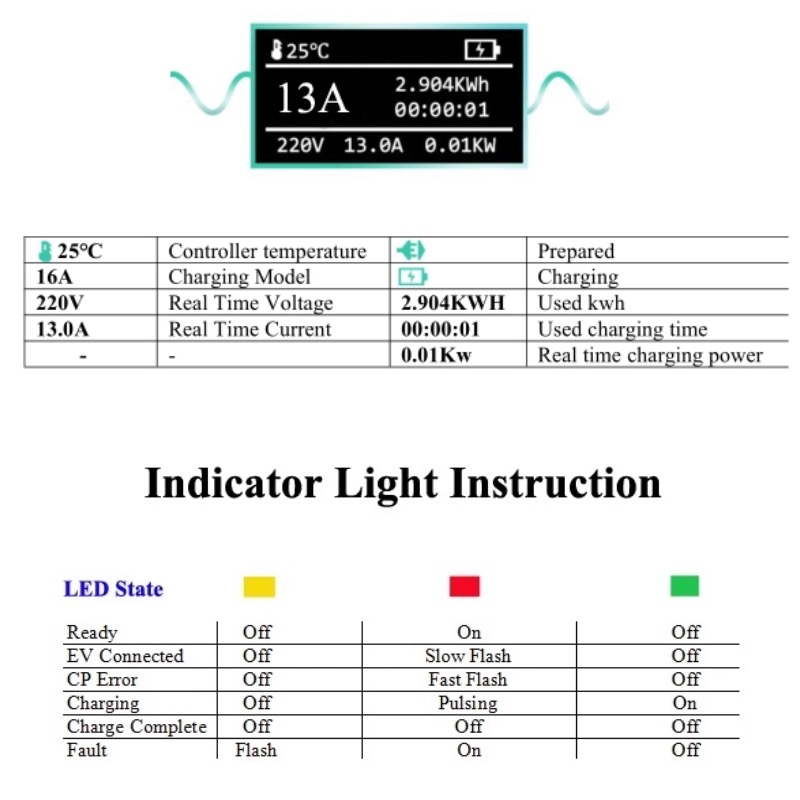

LCD Screen Status:

Basic Data

Rated current

8A/10A/13A/16A

Rated voltage

110V AC - 240V AC

Charging Plug

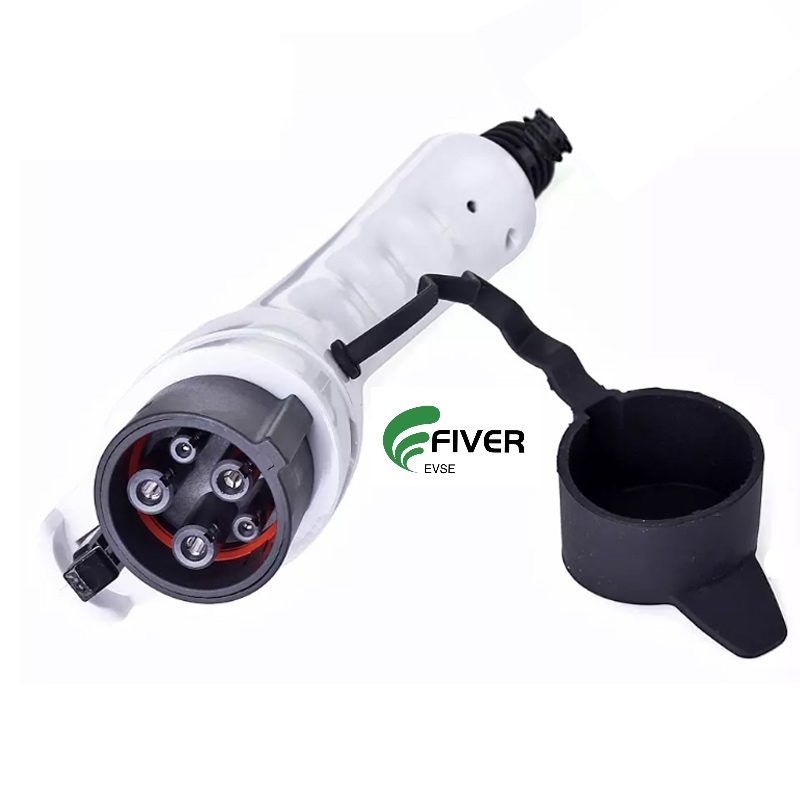

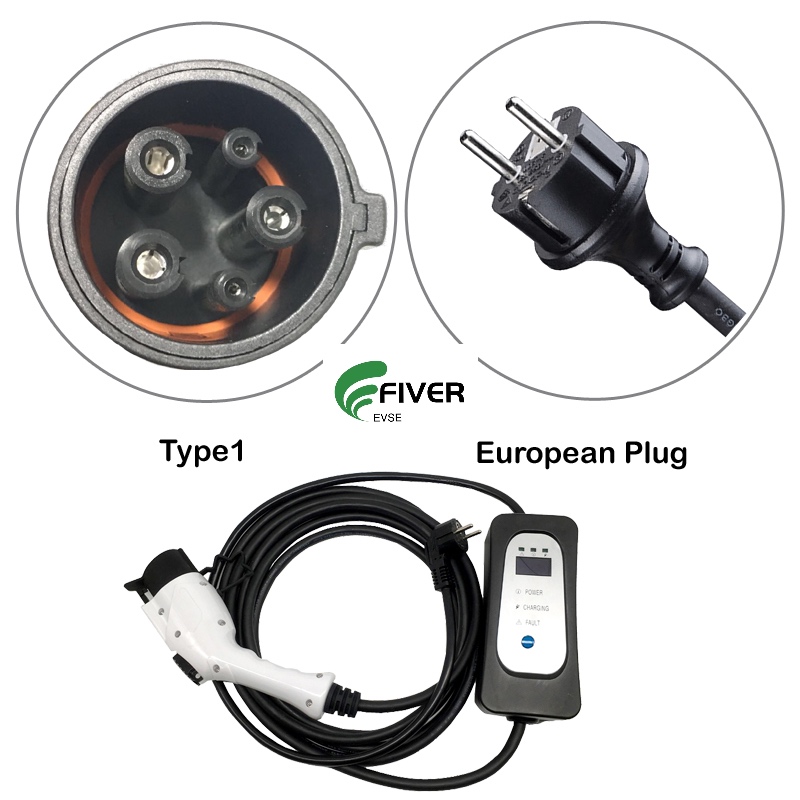

SEAJ1772 Type 1 Charging Plug

Insulation resistance

>1000MΩ (DC500V)

Terminal temperature rise.

<50K

Withstand Voltage

2000V

Mechanical life

Non-load plug in / plug out > 10000 times; can withstand 1m drop test and 2T vehicle running over pressure test.

Material

Charging Box: Thermoplastic, Flame retardant grade UL94-0;

Pin: Cooper alloy, sliver + thermoplastic on the top

Operation Temp.

-30℃ ~ + 50℃

IP protection class

IP 54

Protection

RCD Type A Leakage; Over-voltage;Under-voltage;Overload protection (self-checking recover), Over-temperature and Lightning protection
