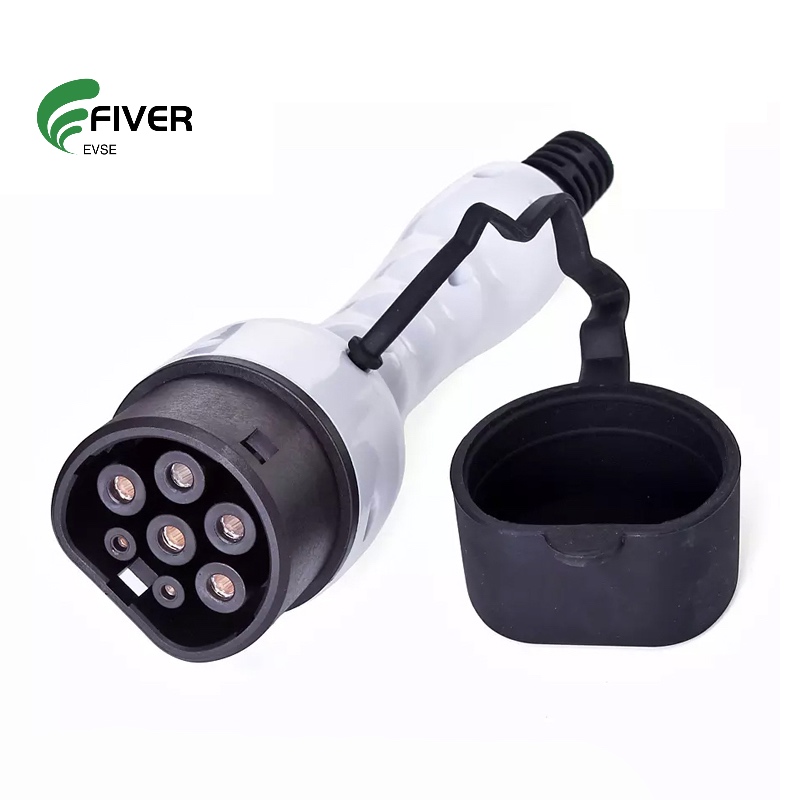

Mennekes Type 2 EV Charging Connector Female Plug for Vehicle Side

  • Rated current: 32A
  • Rated voltage: 110V-250V AC or 480V AC
  • Operation Temp.:-30℃ ~ + 50℃
  • IP protection class: IP 54 ( working condition)
  • Product description: This type2 charging connector meet the EU standards. the type2 charging connector can charge all the type2 electric cars. With special inner design, more safer.
  • INQUIRY

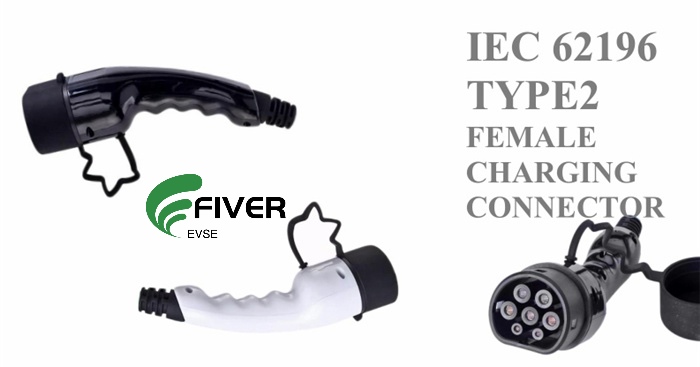

Type 2 AC <a href=https://www.fiverevse.com/EV-Charging-Plugs.html target='_blank'>EV Charging Connector</a>


Product Features:


1. This IEC62196 Type 2 Charging Connector is Safe and Highly reliable. CE, TUV and Rohs certificated.

2. This Charging Plug is with safe pins insulated head design to prevent direct contact  and electric shock.

3. Two colors, white and black optional.

4. This Charging Connector with no cables.

5. This charging plug is designed with dust-cover.


Electric Performance

Rated current

16A (or 32A)

Operate Voltage

250V AC , Single Phase (or 415VAC, Three Phase)

Standard
IEC 62196 Standard Type 2

Insulation resistance

>1000MΩ (DC500V)

Terminal temperature rise.

<50K

Withstand Voltage

2000V

Contact Resistance
0.5 megohm MAX

Mechanical life

no-load plug in / plug out > 10000 times ; Impact of external force: can  withstand 1m drop and 2T vehicle run over pressure

Materia

Thermoplastic, Flame retardant grade UL94-0;

Pin: Cooper alloy, sliver + thermoplastic on the top

Operation Temp.

-30℃ ~ + 50℃

IP protection class

IP 54

Model Specific
FCBYEN-ev16CT
16A / 240VAC ;  3 × 2.5mm² + 2 × 0.75mm² ;  Customized cable length
FCBYEN-ev16CT-3
16A / 415VAC ;  5 × 2.5mm² + 2 × 0.75mm² ; Customized cable length
FCBYEN-32CT
32A / 240VAC ; 3× 6mm² + 2 × 0.75mm² ; Customized cable length
FCBYEN-32CT-3
32A / 415VAC ; 5 × 6mm² + 2 × 0.75mm²  ; Customized cable length

NOTICE:

 To ensure effective communication please send us the model that you need when send the inquiry, thanks in advance!

This Plug is without cable if you need charging plugs with cable please check here.
