Type 1

32A Current Adjustable Level 2 Type 1 Portable EV AC Chargers,Electric Vehicle Chargers

Rated current: 8A/12A/24A/32A
Rated voltage: 110V-250V AC
Operation Temp.:-30℃ ~ + 50℃
IP protection class: IP 66 ( working condition)
Product description: Current Adjustable Level 2 type 1 portable ev charger, suitable for all the US/Japan standard electric vehicles with type 1 socket.
INQUIRY

32A Current Adjustable Level 2 Type 1 Portable EV AC Chargers

Product Features:

1. This Portable EV Charger is comply with most standard type 1 electric vehicles.

2. Built in chip ，automatically repair non safety faults

3. Waterproof level reached highest level of civil products

4. Monitor the charging temperature of the box in real time , ensure the safety of the charger and your car.

5. Complete protection mechanism of over-voltage protection, lightning protection, etc

6. TUV, CE, FCC Certificated. Quality Assured.

LED Indicator Status

Basic Data

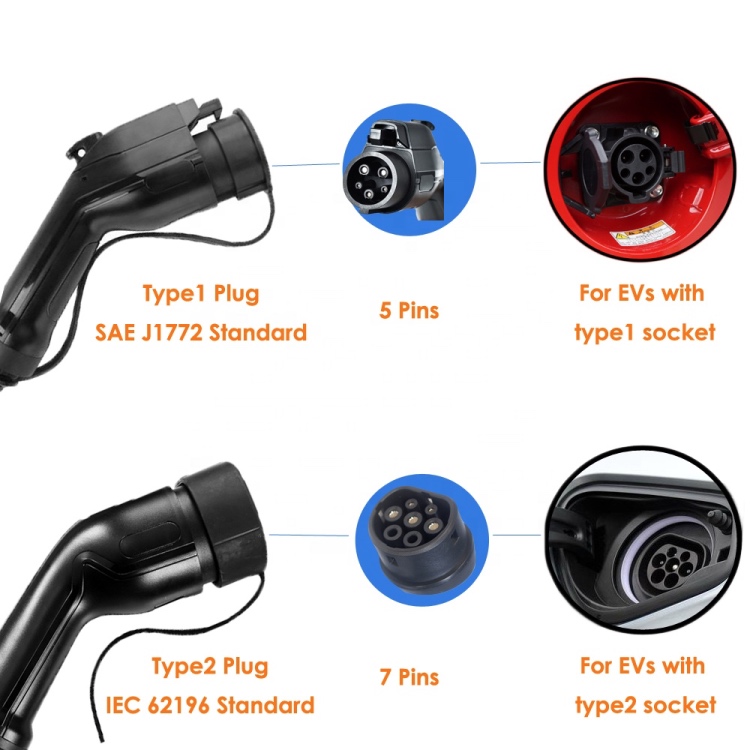

Charging Plug Type	SEAJ 1772 Type 1
Power Supply Plug	CEE Industry Plug; Nema 10-50;Nema 14-50
Input Power	110V AC - 250V AC
Output Power	110V AC -250V AC
Adjustable Amperes	8A- 16A
Warranty	One Year
Insulation resistance	>1000MΩ (DC500V)
Terminal temperature rise.	<50K
Max Withstand Voltage	2000V
Mechanical life	Non-load plug in / plug out > 10000 times; can withstand 1m drop test and 2T vehicle running over pressure test.
Material	Charging Box: Thermoplastic, Flame retardant grade UL94-0; Pin: Cooper alloy, sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection grade	IP 66
Protection	RCD Type A Leakage; Over-voltage;Under-voltage;Overload protection (self-checking recover), Over-temperature and Lightning protection
