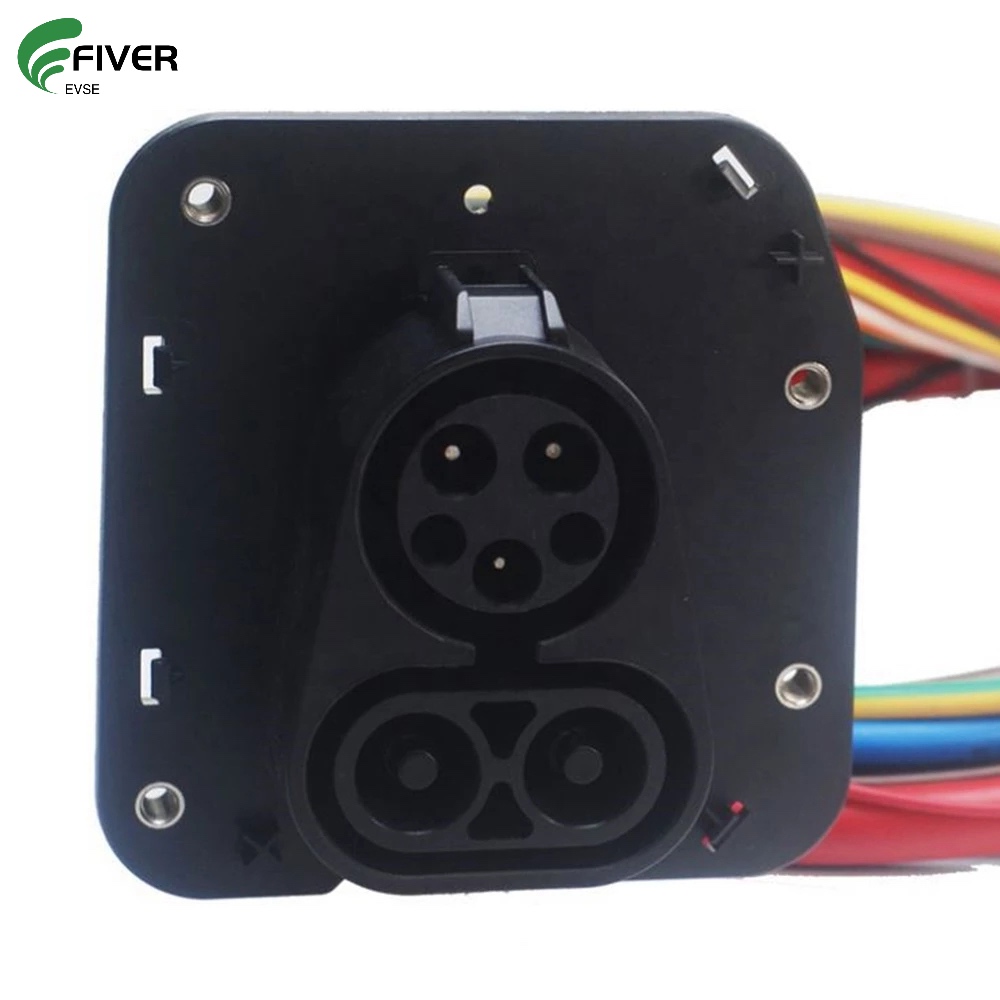

200A CCS Combo 1 SAE J1772 Charging Inlet Socket
- Rated current: 200A
- Rated voltage: 600V DC
- Operation Temp.:-30℃ ~ + 50℃
- IP protection class: IP 54 ( working condition)
- Product description: This CCS1 charging socket meet the US standards. the CCS1 charging socket can install on the CCS1 electric cars as an electric inlet socket.
200A CCS Combo 1 SAE J1772 Charging Inlet Socket
Features:
1. This CCS Combo 1 Charging Socket is TUV, CE and RHOS Certificated, is safe and reliable.
2. This CCS1 charging socket is installed on the electric cars as an electric inlet for DC charging.
Electric Performance
DC input
200A, 600V DC MAX
AC input
63A, 415V AC MAX
Insulation resistance
>2000MΩ (DC1000V)
Terminal temperature rise.
<50K
Withstand Voltage
3200V
Mechanical life
no-load plug in / plug out > 10000 times
Materia
Thermoplastic, Flame retardant grade UL94-0;
Pin: Cooper alloy, sliver + thermoplastic on the top
Operation Temp.
-30℃ ~ + 50℃
IP protection class
IP 65
DC MAX Charging Power
90KW
AC MAX Charging Power
41.5KW
Standard
IEC 62196 -3 Standard Combo 1 Socket
Contact Resistance
0.5 megohm
