  • 11KW 3 Phase Network Commercial AC Charger for Electric Cars with Built-in OCPP Controller

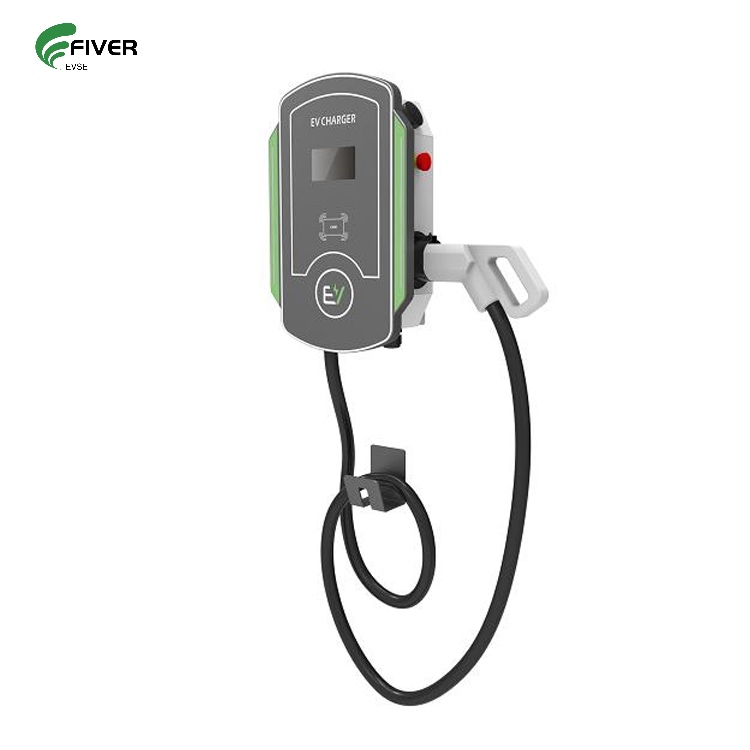

11KW 3 Phase Network Commercial AC Charger for Electric Cars with Built-in OCPP Controller

11KW 3 Phase Network Commercial AC Charger for Electric Cars with Built-in OCPP Controller

  • Rated current: 16A
  • Rated voltage: AC380V 50/60Hz
  • Operation Temp.:-20℃ ~ + 50℃
  • IP protection class: IP 65 ( working condition)
  • Product description: This 3 Phase 11KW Network Commercial AC Charger is with a Built-in OCPP Controller, can help you to connect the charger to the charging network, for easy remote control and management.
  • INQUIRY

Product Features:

1 CE Certificated comply with the standardIEC61851IEC62196

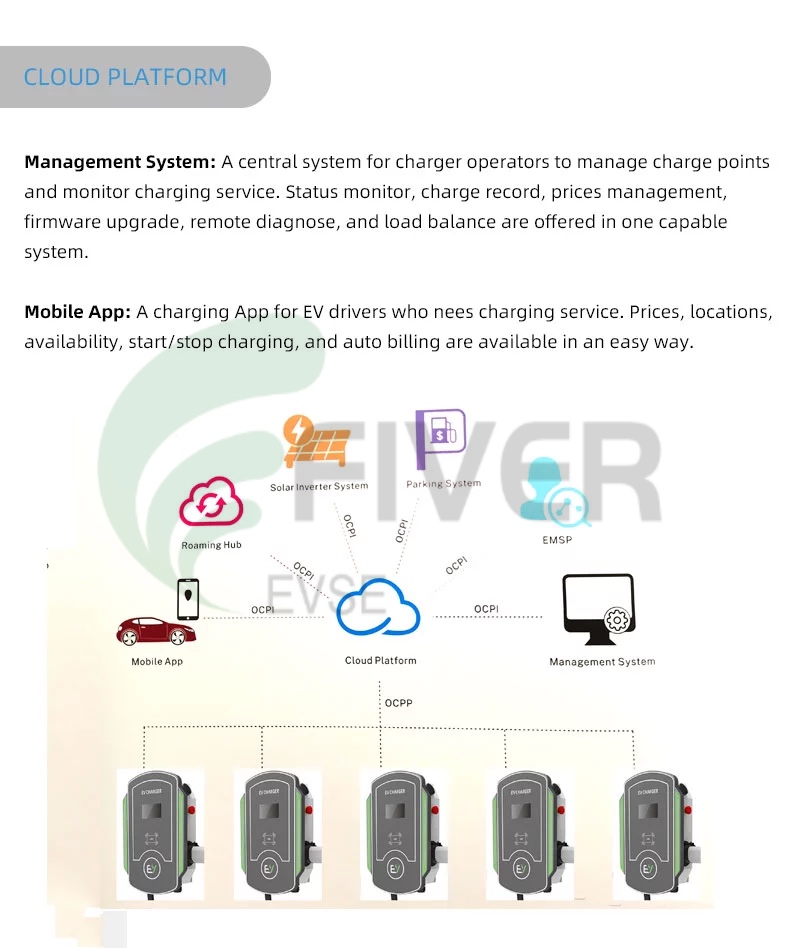

2 Built-in OCPP Controller comply with OCPP1.6

3 4.3 inch high-definition LCD capacitive touch LCD, multi-language support

4 Payment Method: RFIDPlug&ChargeAPP(QRCode)&RFID(Online card)

5 Current can be set, support local setting, server setting, APP setting (with APP)

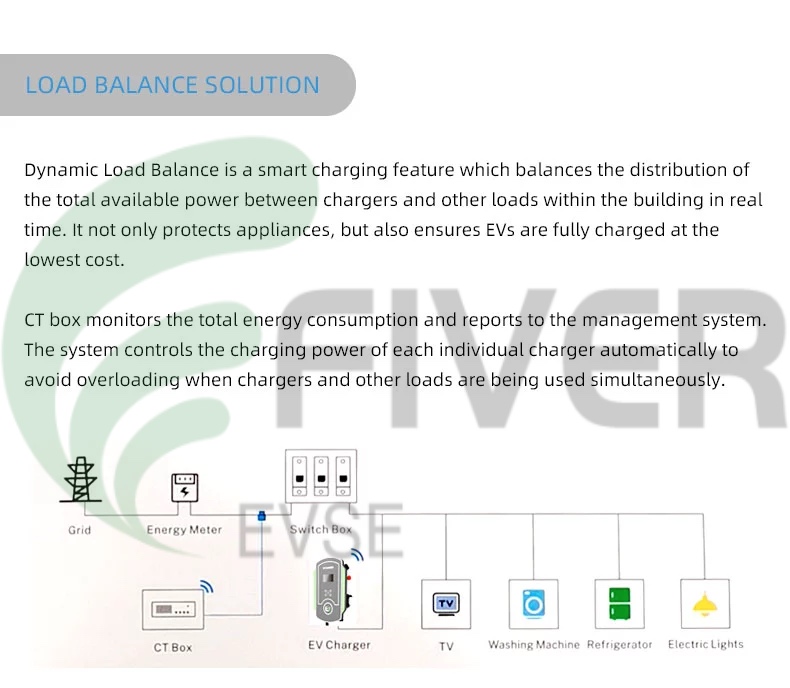

6 Smart charging power distribution load management, smart home load management

7 Wi-Fi/Ethernet/4G LTE multiple networking methods optional

8 Built-in MID certified electric meter measurement

9 Current, voltage detection, grounding detection, temperature detection, fault alarm and emergency button, etc. to ensure safety during operation

10 Illuminated LED lights with different colors allow users to quickly identify the charging status



Product Parameters:


Model

F-11-CM




Basic Info.

Installation Method

Wall-mounted

Rated Power

11kw

Charging Mode

APP、APP&RFID、Plug &Charge、RFID

Charging Standard

IEC61851; IEC62196




Input

Input Voltage

Three-phase AC 380V 50/60Hz(L1+L2+L3+N+PE)

Input Current

0~16A

Input Line Length

1.5m

Leakage Protection

Type A 30mA+ 6mA (Type B RCD optional)


Output

Output Voltage

380Vac +/-10%,Three -phase

Output Current

0-16A




Connection Method

Number of plug

1

Connection method

Method C (plug-wire version)

Plug-wire Length

5m (customize)

Standard

Type 2

Human-computer Interaction

Indicator Light

LED status light

LCD

Color LCD, industrial grade, 4.3 inches Capacitive touch screen






Other

Protection Level

IP65

Operating Temperature

-20℃~50℃

Relative Humidity

5%~95% No condensation

Altitude

≤2000m

Operating Life

≥100000

Safety

Protection

Over current protection, over voltage protection, under voltage protection, over temperature protection, leakage protection. PE grounding detection, over temperature and load reduction, and DC protection.

Electric Meter (Optional)

Network Gateway

Ethernet/Wifi/4G

Communication Protocol

OCPP1.6(JSON)

Size

470*300*150mm (H * W * D)

11kg
