Ultra Fast DC Charging Stations

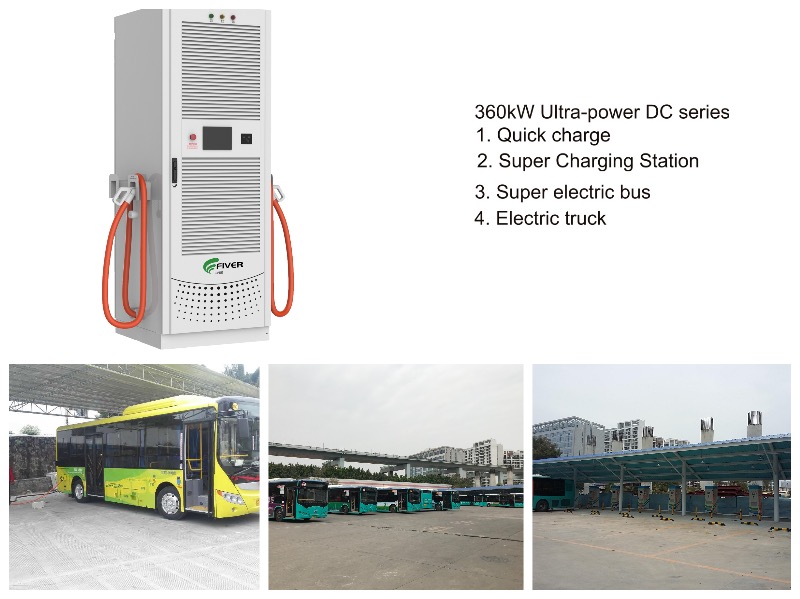

300-360KW 200-1000Vdc Ultra-power DC Quick Charging Station for Bus Stations and Fleet Parking Lot

Output current: 0-360A
Output voltage: 200-1000V DC
Rated Output Power: 360KW
IP protection class: IP 54 ( working condition)

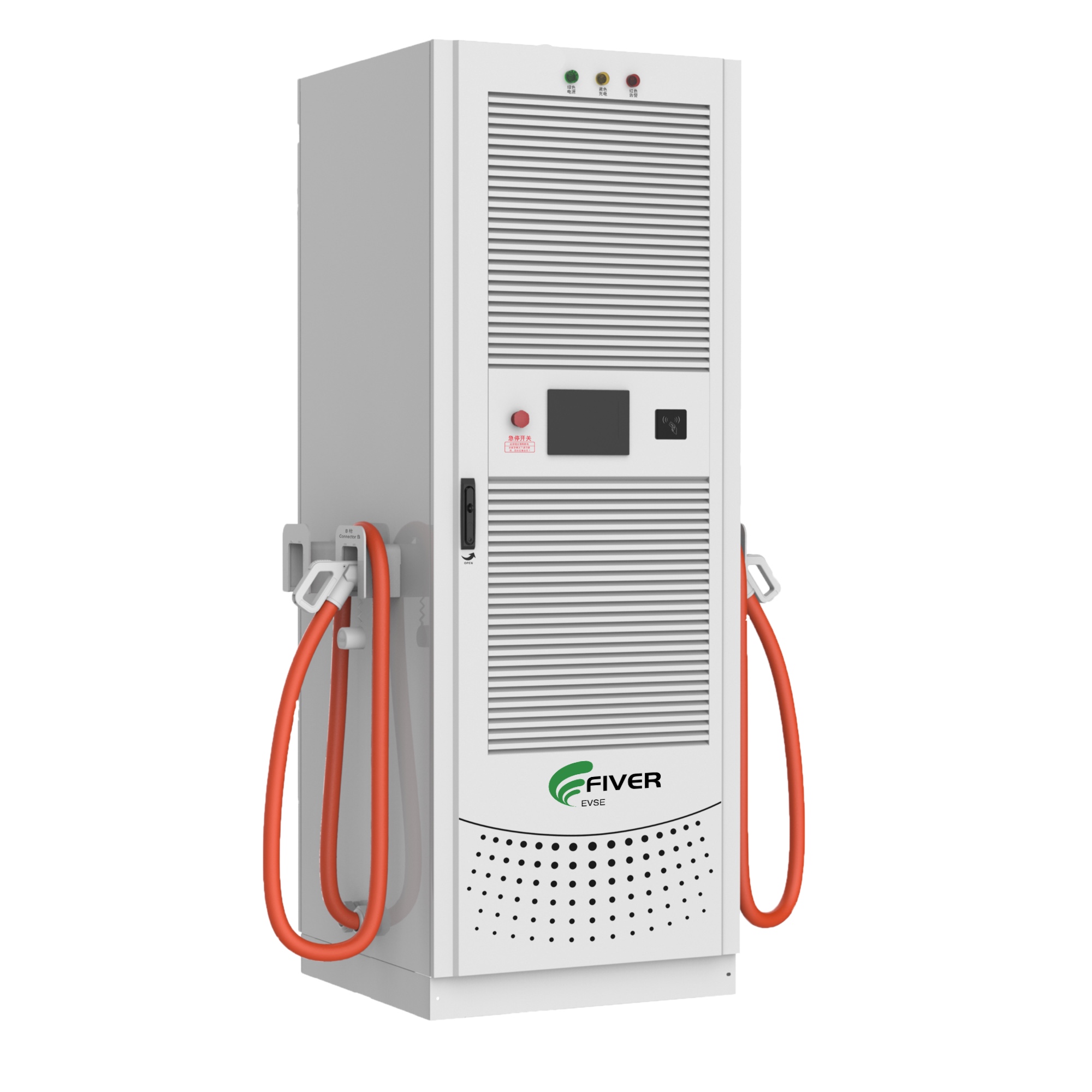

Product description: Fiver SEV1000/360K series outdoor DC integrated charger adopts a new generation of intelligent charging module, single and double output can be arbitrarily selected according to customer requirements
INQUIRY

Product Features:

Fiver SEV1000/360K series outdoor DC integrated charger adopts a new generation of intelligent charging module, single and double output can be arbitrarily selected according to customer requirements. The dual-gun type can be distributed according to the actual charging demand to meet the charging needs of small and medium-sized passenger cars and logistics vehicles.

– CCS1 / CCS2 / CHADEMO Support

– Internet with Wifi/3G/4G/Ethernet; OCPP 1.6 (2.0 Upgraded ) compliant

– Payment Methods: Mifare 1 card/ Scan QR code/APP

– Ready to use management software embedded

– IP54 design for harsh environment

– Easily configure the output power up to 360KW

– CE TUV Certificated

– Customized Brand Painting support

Specification	Model	SEV1000/360K
AC Nominal Input	Phases/ Lines	3-phase; 3P+N+PE
	Input Voltage	380VAC±15%
	Frequency	45-65Hz
DC Nominal Output	DC Voltage Accuracy	<±0.5
	Output Voltage/current	300KW-360KW, 200-1000VDC; Output Current 1098A Max
	Output Efficiency	>94% (Rated input and output)
Electrical Specification	LED Indicator	Yes
	LCD Touch Screen	Colorful 7" Touch screen
	Emergency Stop Button	Yes (Red Color)
	RFID Function	Yes (Authorized RFID cards can charged only)
	RFID Card Quantity	2pcs Mifare card
	Smart Phone APP	Yes (Support use the smart phone to charge and make payment)
	Energy Meter	DC energy meter
Structure Design	Housing Material	Metal case
	Installation Method	Floor-stand
	Application scenes	Commercial / Public charging
	Charging Outlet	Combo CCS2 / CHAdeMo / Combo CCS1 option one
	Charging Outlet Quantity	1 to 4 outlets optional
	Cable Length	5M cable
Communication	Network Method	Wifi; Ethernet; 4G;3G;GPRS
	Communication Protocol	PLC; CAN
	Communication Protocol	OCPP 1.6(2.0Version) JSON ( Charger with OCPP board inside)
Environmental Index	Operating Temperature	-30~+65°C (derating work above 50°C)
	Working Humidity	5%~95% without condensation
	Working Altitude	<2000M
	Protection Grade	IP54 / IK10
	Application Site	Indoor/Outdoor
	Cooling Method	Fan cooling
Security Protection	Multi le Protection	Over Current Protection, Over/ Under Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, Over Temperature Protection, Protect, Earth Connect Monitoring, Full automatic stop
	MTBF	100,000 hours
	Certificate Compliance	Complete charger comply with CE, EN 61851-1:2011, EN 61851-23:2014, EN 61851-24:2014, EN55022 CLASS A
	Warranty	2years
Dimension	Dimension & Weight	10007002000 mm
